Xerox Phaser 6120 Service Manual

Disassembly/Assembly Procedures
Phaser® 6120 Color Laser Printer Service Manual
5-32

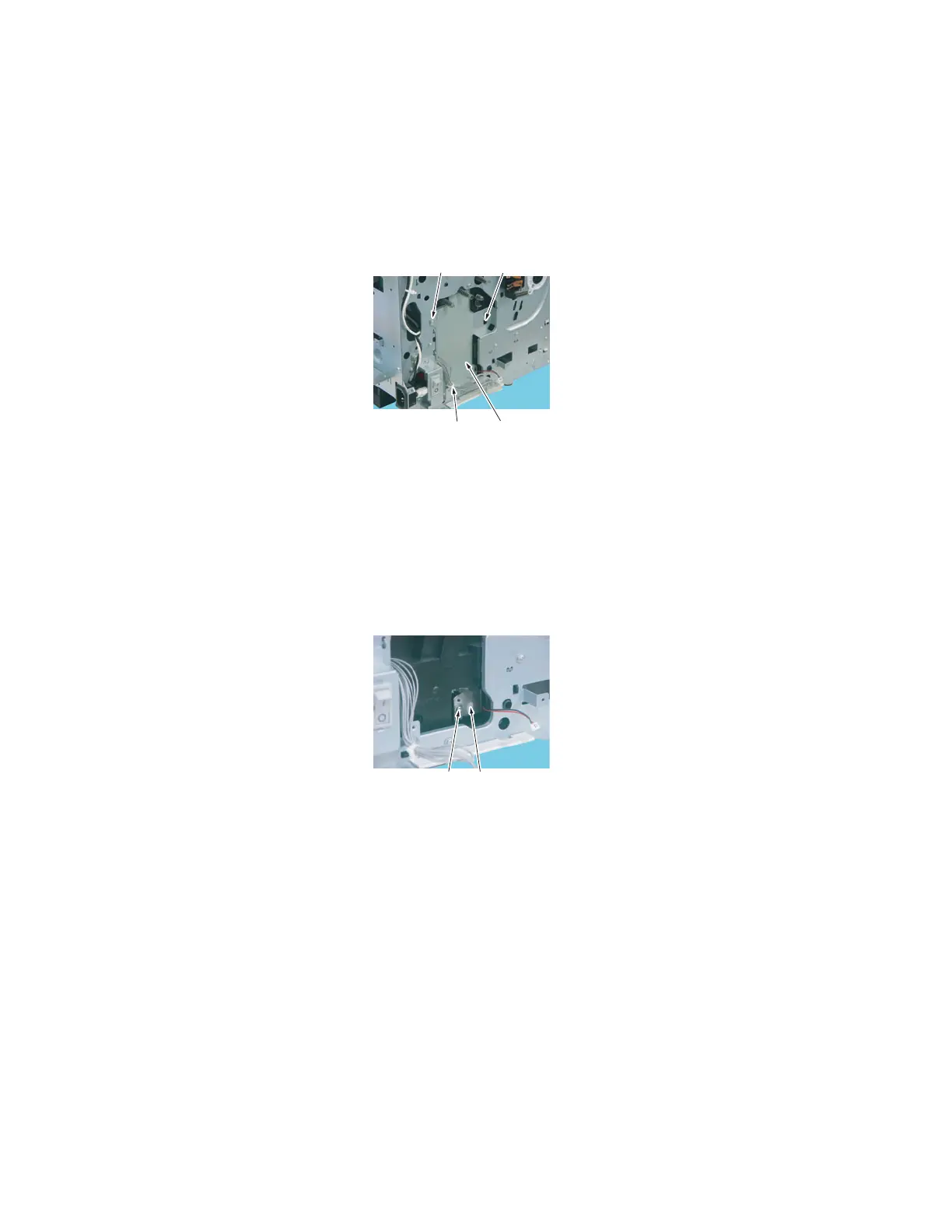

Tray 1 Paper Take-up Solenoid (SL1)
1. Remove the High Voltage Unit. See High Voltage Unit (HV) on page 5-17.
2. Remove one screw [1], unlock the tab [2], and release the wiring harness from the
saddle [3]. Then, remove the shield [4].
Caution: When reinstalling the shield, make sure that no part of the harness is wedged in
the mechanism.
3. Remove the screw [5] and the Tray1 Paper Take-up Solenoid [6].
[2]
[3]
[4]
[1]
4139fs2030c1
[5] [6]
4139fs2050c0

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
