Xerox Phaser 6120

Disassembly/Assembly Procedures
Phaser® 6120 Color Laser Printer Service Manual
5-11
9. Slide the board to the right to disconnect CN8 [7]from the PWB-A (Engine Control
Board) to remove the PWB-P (Image Processor Board) Assy [8].

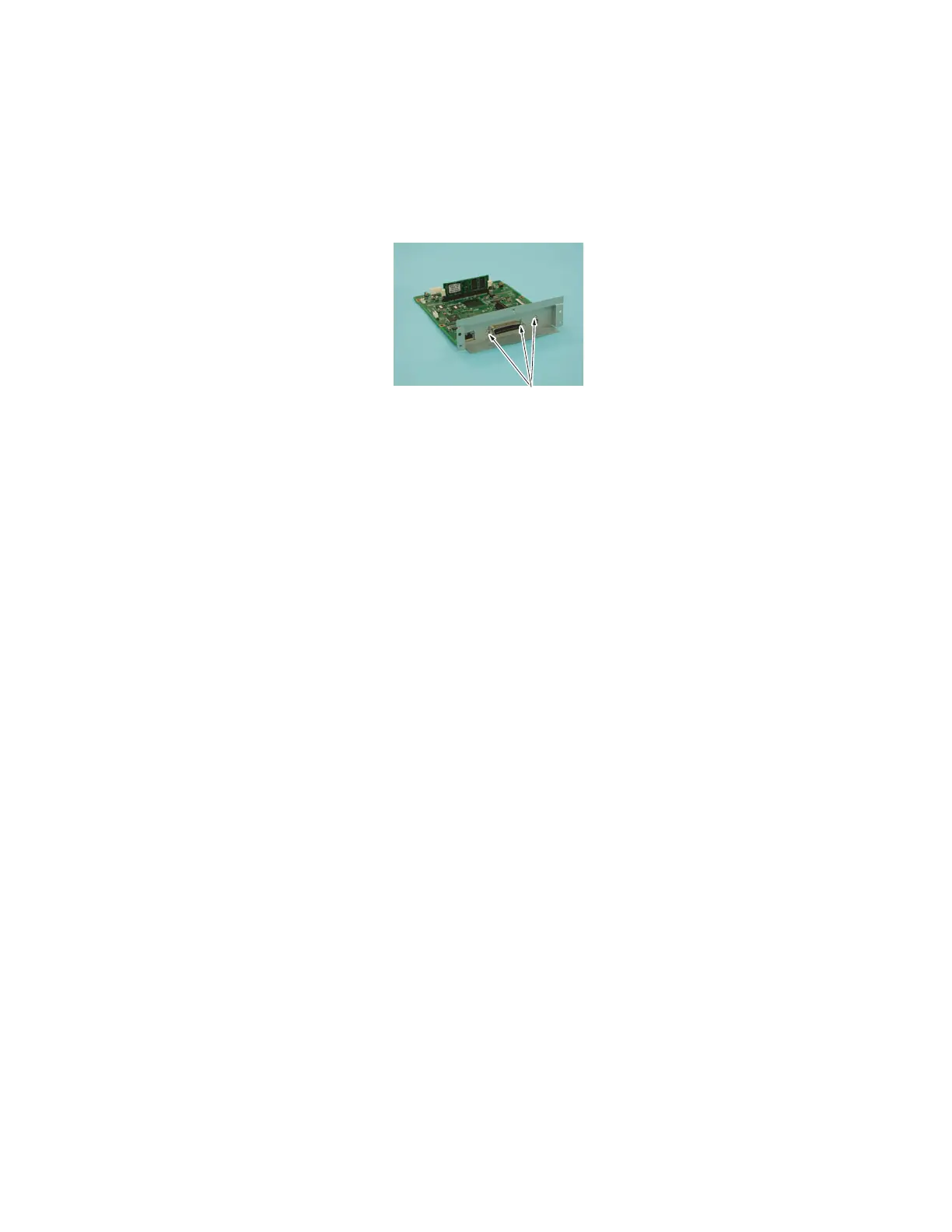

10. If you are replacing the board, remove the three screws [9] and move the panel to the
replacement board.
4139F2C507AA
[9]
