Xerox Phaser 6120 Service Manual

Disassembly/Assembly Procedures
Phaser® 6120 Color Laser Printer Service Manual
5-24

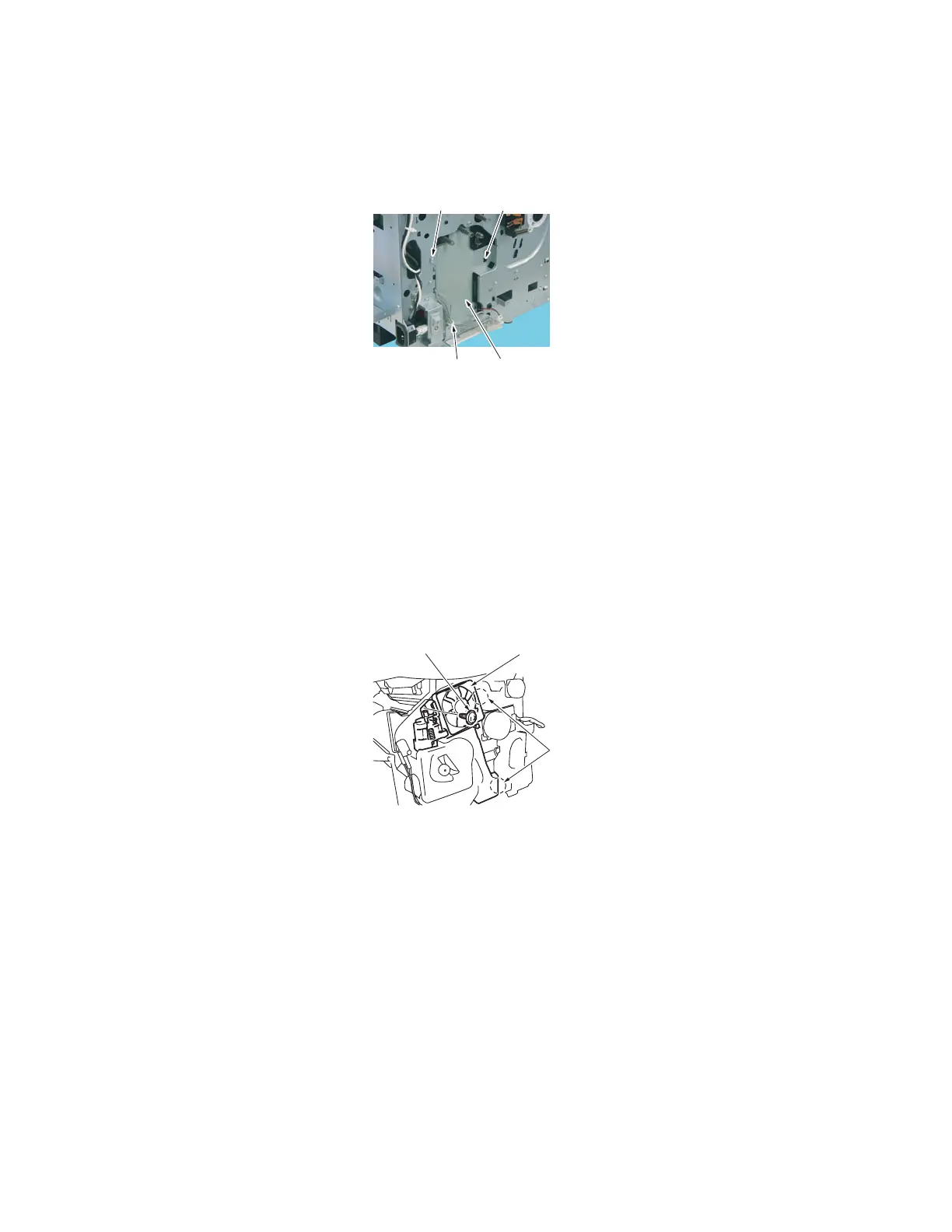

5. Remove one screw [1], unlock the tab [2], and release the wiring harness from the saddle
[3]. Then, remove the shield [4].
Warning: When reinstalling the shield, make sure that no part of the harness is wedged in
the mechanism.
6. Remove the Rack Drive Assy. See the removal procedure steps 1 to 3 of Developing Motor
(M3) on page 5-30.
7. Remove the Ventilation Fan Motor. See Ventilation Fan Motor (M6) on page 5-28.
8. Remove one screw [1], unlock two tabs [2], loosen the 4 wiring harnesses that feed the
laser, and then remove the Ventilation Fan Duct [3].
9. Lay the main body of the printer on its back of the printer.
Caution: Be careful not to pinch the wires on the back of the printer.
10. Remove the Power Supply Cooling Fan and shroud.
[2]
[3]
[4]
[1]
4139fs2030c1
[2]
[1]
[3]
4139fs2077c1

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
