Xerox Phaser 6120 Service Manual

Print Engine Theory of Operation
Phaser® 6120 Color Laser Printer Service Manual
7-21

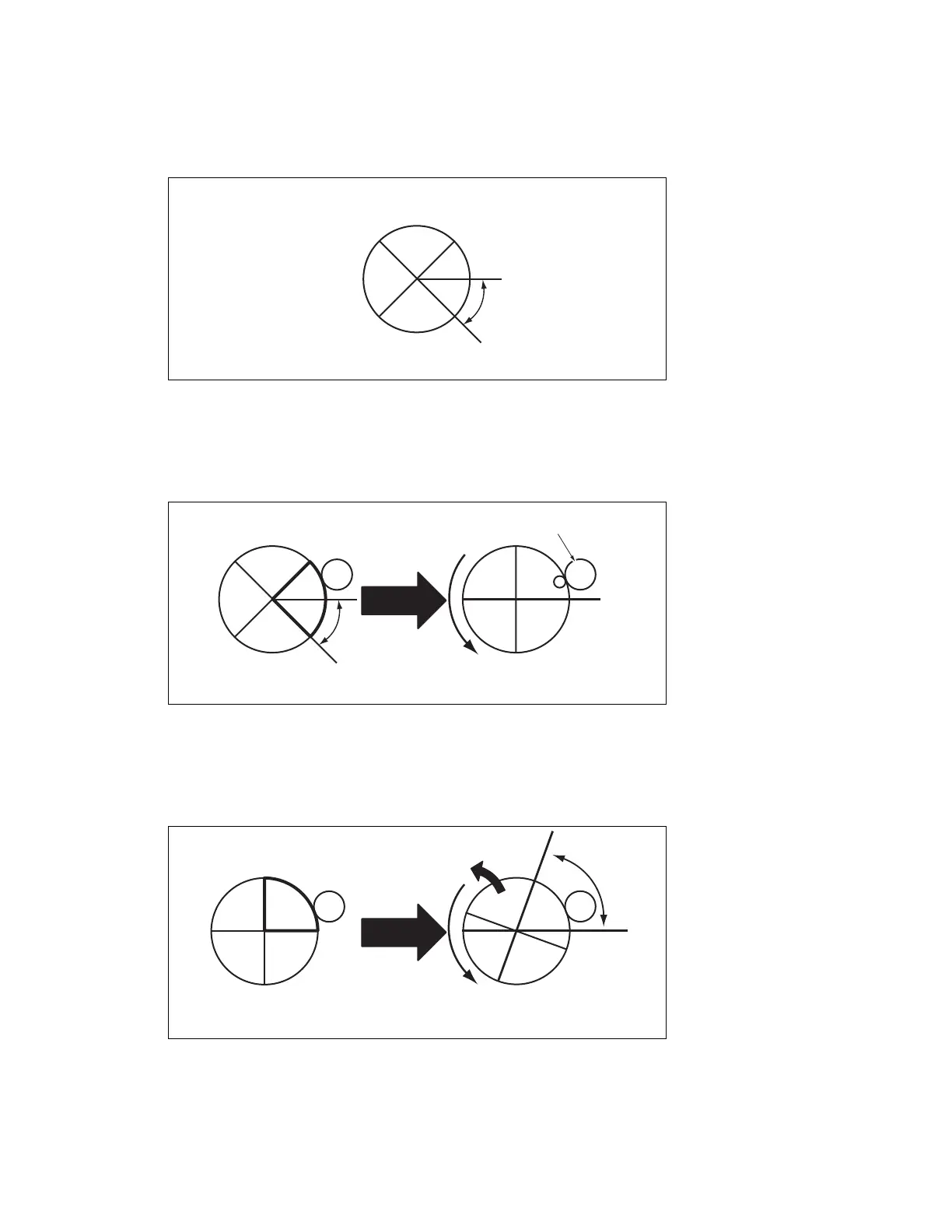

Standby (Reference) Position
The standby position is 45° before the developing position of the K Toner Cartridge.
.
Developing Position
The developing position is where the Toner Cartridge Rack is rotated 45° from the standby
position.
Cartridge Replacement Position
The cartridge replacement position is where the Toner Cartridge Rack is rotated 70° from the
developing position.
K
Y
45˚
Standby Position
C
M
4139to2067e0
K
Y
0˚
Developing Position
Photo Conductor
C
M
4139to2068e0
K
Y
45˚
C
M
For Developing of K
K
Y
70˚
Cartridge Replacement PositionK Developing Position
C
M
4139to2069e0
K
Y
C
M
For Developing of K

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
