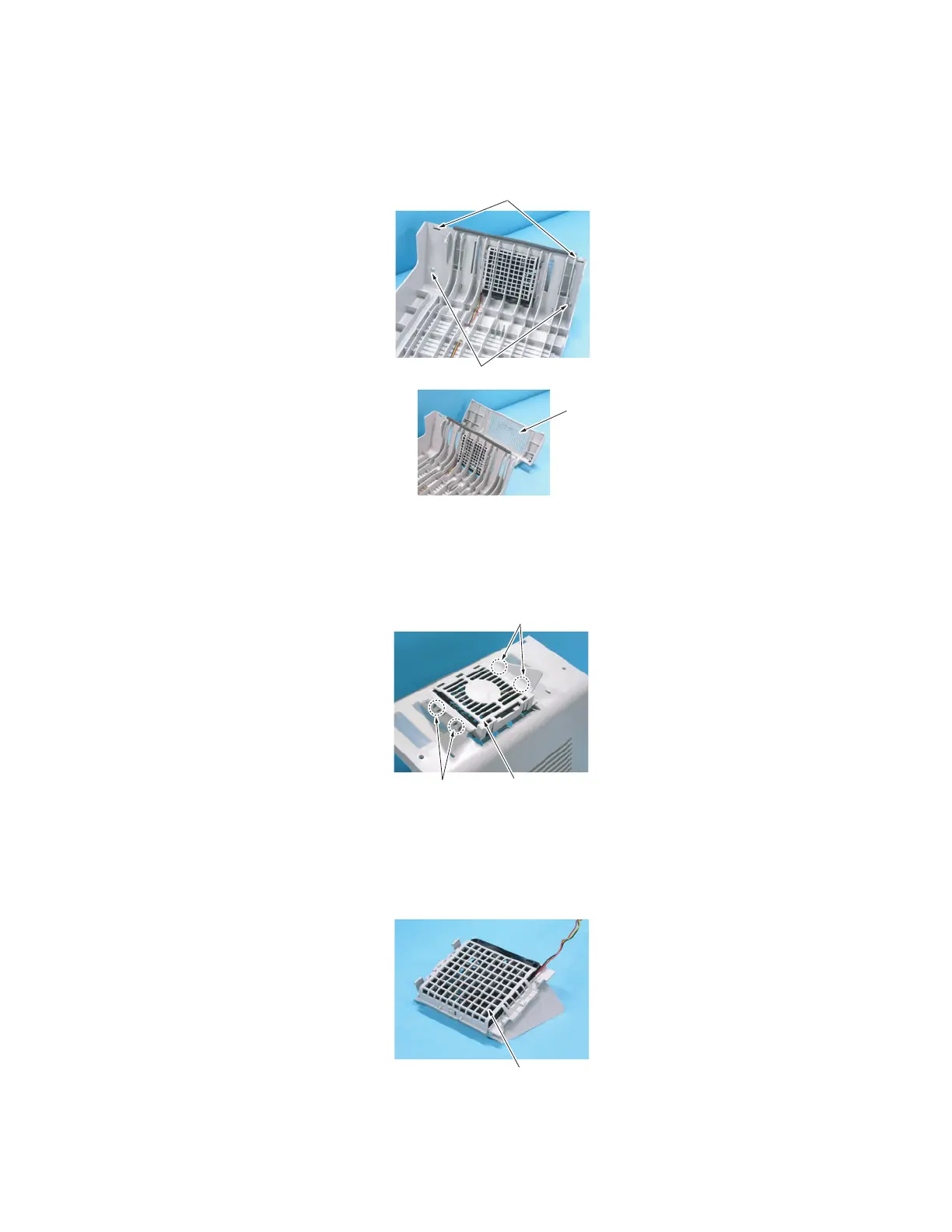

6. Remove two screws [9], unlock two tabs [10] and remove the Duplex Door Upper Cover
[11].
7. Unlock four tabs [12] and remove the Duplex Cooling Fan Motor Assy [13].
8. Remove the Duplex Cooling Fan Motor Cover [14].
[10]
[9]
[11]
4057fs2520c0
[12]
[12]
[13]
4057fs2521c0
[14]
4057fs2522c0
