ENGINE
3-17

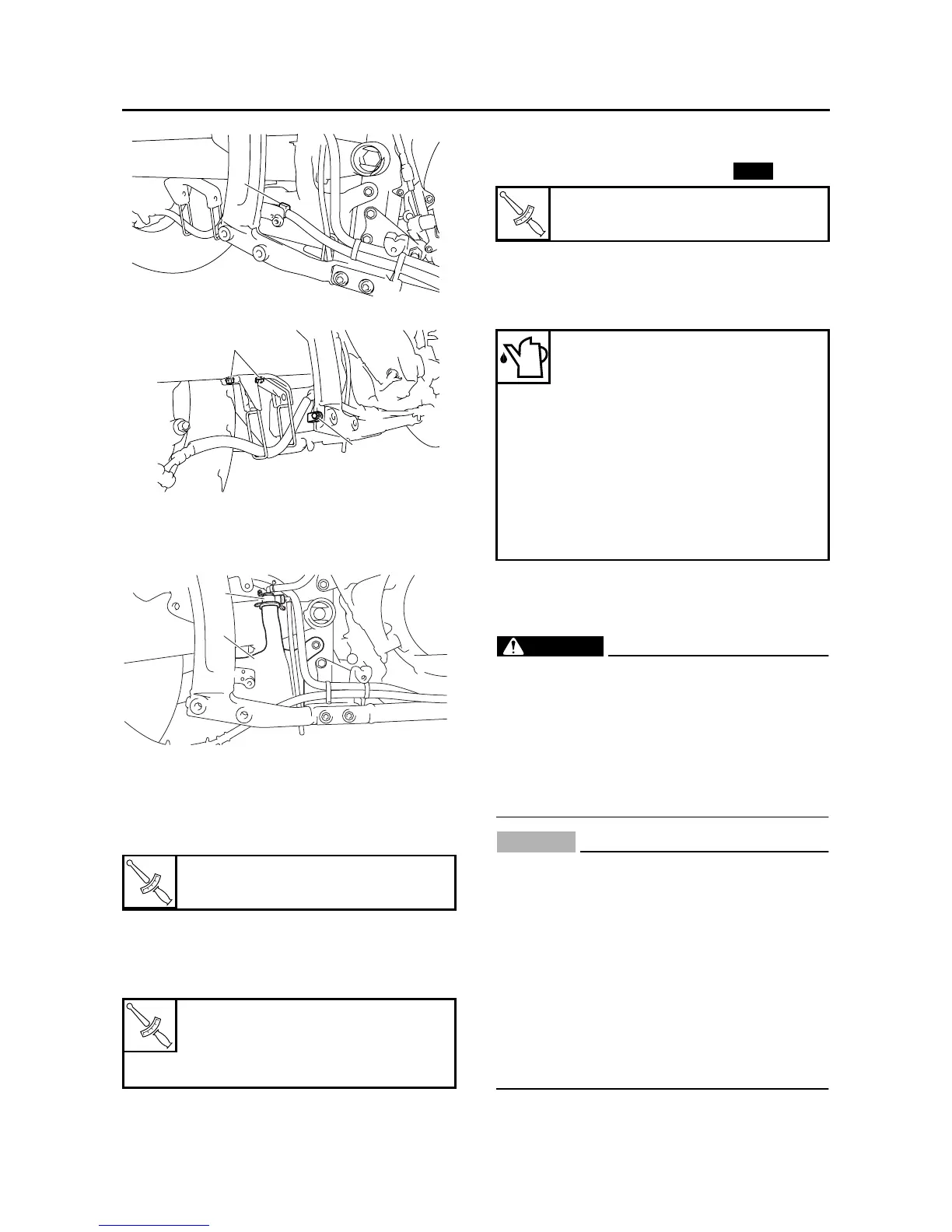

7. Remove:
• Coolant reservoir “1”
• Coolant reservoir cap “2”
8. Drain:
• Coolant
(from the coolant reservoir)
9. Install:
• Coolant reservoir
10.Install:
• Rear brake hose holder
• Rear brake hose guide bolts
• Rear brake hose clamp
11.Connect:
• Radiator outlet hose
12.Install:
• Coolant drain bolt (radiator)
(along with the copper washer )
13.Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Handling notes for coolant
Coolant is potentially harmful and should be
handled with special care.
WARNING
EWA13040
• If coolant splashes in your eyes, thorough-
ly wash them with water and consult a doc-
tor.
• If coolant splashes on your clothes, quickly
wash it away with water and then with soap
and water.
• If coolant is swallowed, induce vomiting
and get immediate medical attention.
CAUTION:
ECA13480
• Adding water instead of coolant lowers the
antifreeze content of the coolant. If water is
used instead of coolant check, and if nec-
essary, correct the antifreeze concentra-
tion of the coolant.
• Use only distilled water. However, if dis-
tilled water is not available, soft water may
be used.
• If coolant comes into contact with painted
surfaces, immediately wash them with wa-
ter.
• Do not mix different types of antifreeze.
14.Install:
• Radiator cap
T
R
.
.
Coolant reservoir bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
T
R
.
.
Rear brake hose holder bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
Rear brake hose guide bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
1
2
3
1
2
T
R
.
.
Coolant drain bolt (radiator)
2 Nm (0.2 m·kg, 1.4 ft·lb)
Recommended antifreeze
High-quality ethylene glycol anti-
freeze containing corrosion in-
hibitors for aluminum engines
Mixing ratio
1:1 (antifreeze:water)
Radiator capacity (including all
routes)
2.10 L (2.22 US qt) (1.85 Imp.qt)
Coolant reservoir capacity (up
to the maximum level mark)
0.45 L (0.48 US qt) (0.40 Imp.qt)
New
