ELECTRICAL SYSTEM
3-30
EAS21750
ELECTRICAL SYSTEM
EAS21760
CHECKING AND CHARGING THE BATTERY
Refer to “ELECTRICAL COMPONENTS” on
page 8-79.
EAS21770
CHECKING THE FUSES
Refer to “ELECTRICAL COMPONENTS” on
page 8-79.
EAS21790

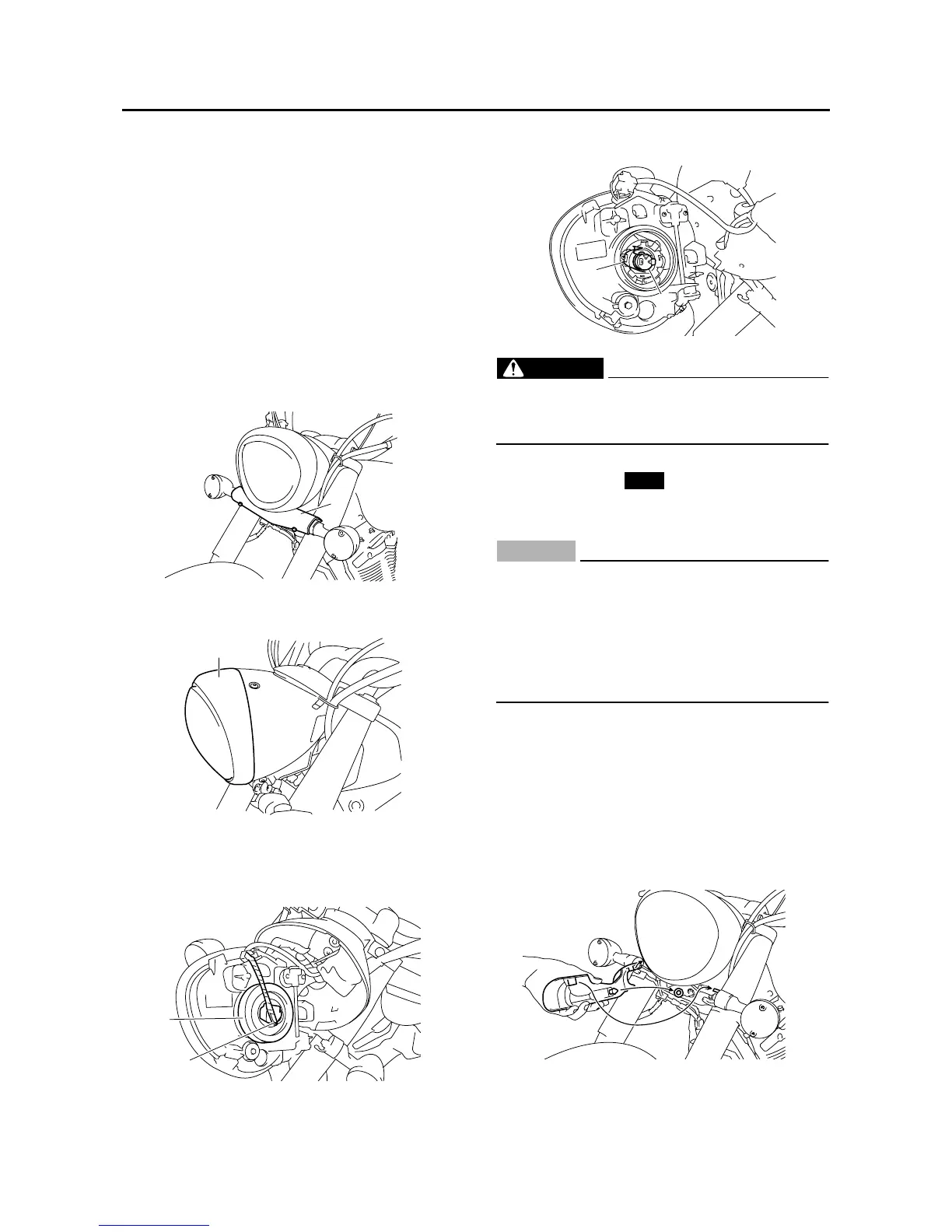

REPLACING THE HEADLIGHT BULB
1. Remove:
• Turn signal light bracket cover “1”
2. Remove:
• Headlight lens unit “2”
3. Disconnect:
• Headlight coupler “3”
4. Remove:
• Bulb cover “4”
5. Detach:
• Headlight bulb holder “5”
6. Remove:
• Headlight bulb “6”
WARNING
EWA13320
Since the headlight bulb gets extremely hot,
keep flammable products and your hands
away from the bulb until it has cooled down.
7. Install:
• Headlight bulb
Secure the new headlight bulb with the head-
light bulb holder.
CAUTION:
ECA13690
Avoid touching the glass part of the head-
light bulb to keep it free from oil, otherwise
the transparency of the glass, the life of the
bulb and the luminous flux will be adversely
affected. If the headlight bulb gets soiled,
thoroughly clean it with a cloth moistened
with alcohol or lacquer thinner.
8. Attach:
• Headlight bulb holder
9. Install:
• Bulb cover
10.Connect:
• Headlight coupler
11.Install:
• Headlight lens unit
• Turn signal light bracket cover
1
2
4
3
5
6
New
To Next Page
