ELECTRICAL SYSTEM
3-31
EAS21810

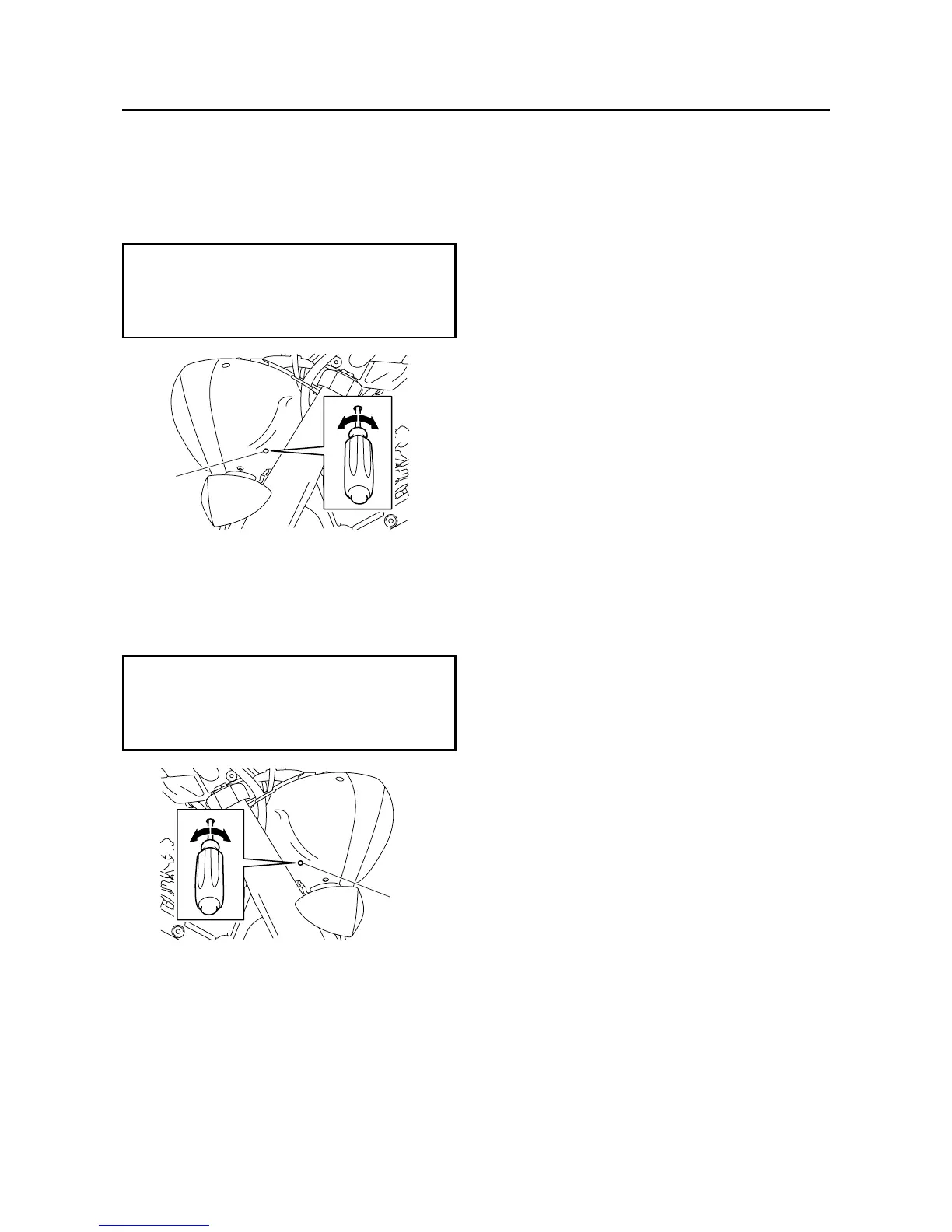

ADJUSTING THE HEADLIGHT BEAM
1. Adjust:
• Headlight beam (vertically)
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the adjusting screw “1” with a screw
driver in direction “a” or “b”.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Adjust:
• Headlight beam (horizontally)
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the adjusting screw “1” with a screw
driver in direction “a” or “b”.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Direction “a”
Headlight beam is raised.
Direction “b”
Headlight beam is lowered.
Direction “a”
Headlight beam moves to the left.
Direction “b”
Headlight beam moves to the right.
ab
1
b
a
1
