Yamaha XVS1300A 2007 - Page 130

GENERAL CHASSIS
4-5

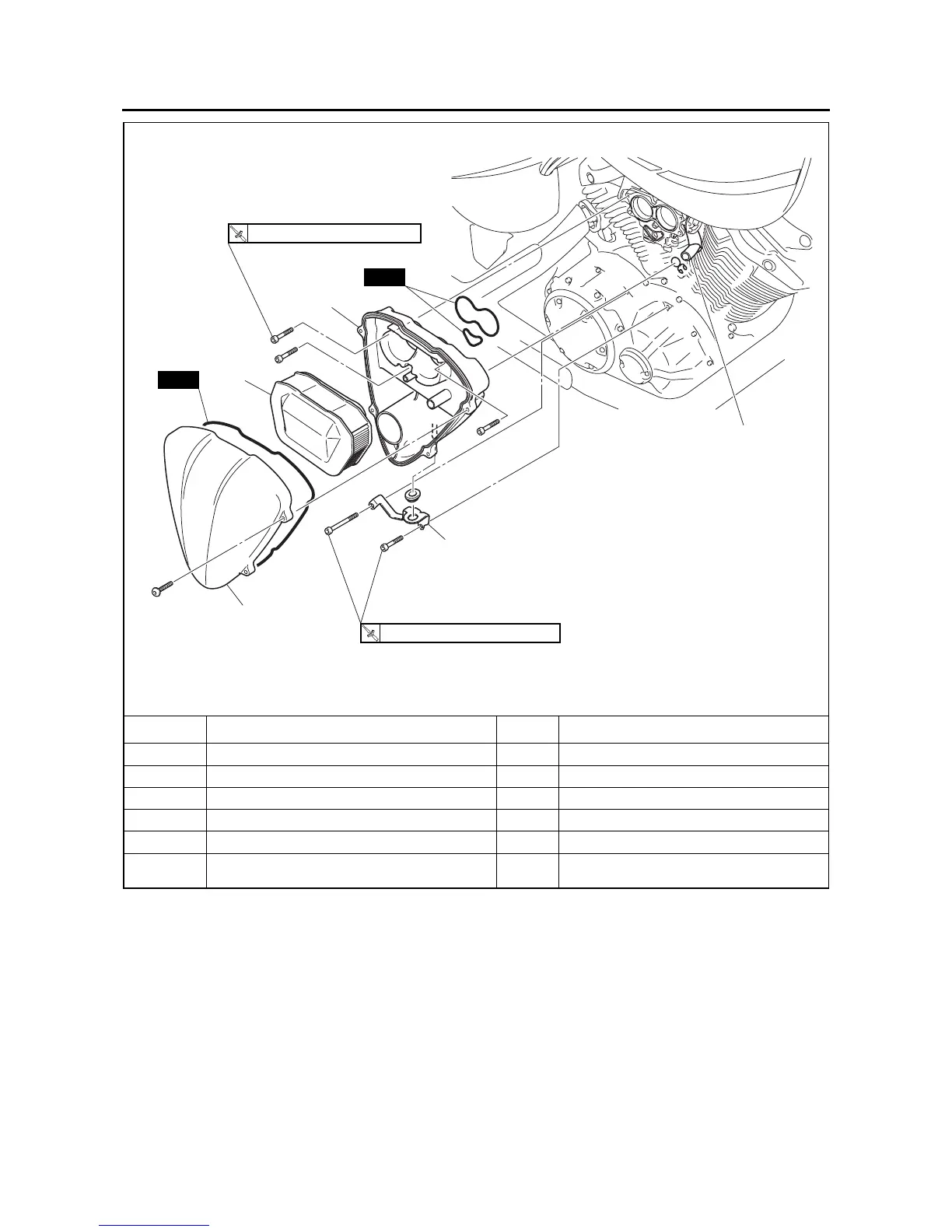

Removing the air filter case
Order Job/Parts to remove Q’ty Remarks
1 Air filter case cover 1
2 Air filter element 1
3 Air filter case bracket 1
4 Crankcase breather hose 1 Disconnect.
5 Air filter case 1
For installation, reverse the removal proce-
dure.
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
New
New
1
2
3
5
4
(4)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
