FRONT BRAKE
4-23

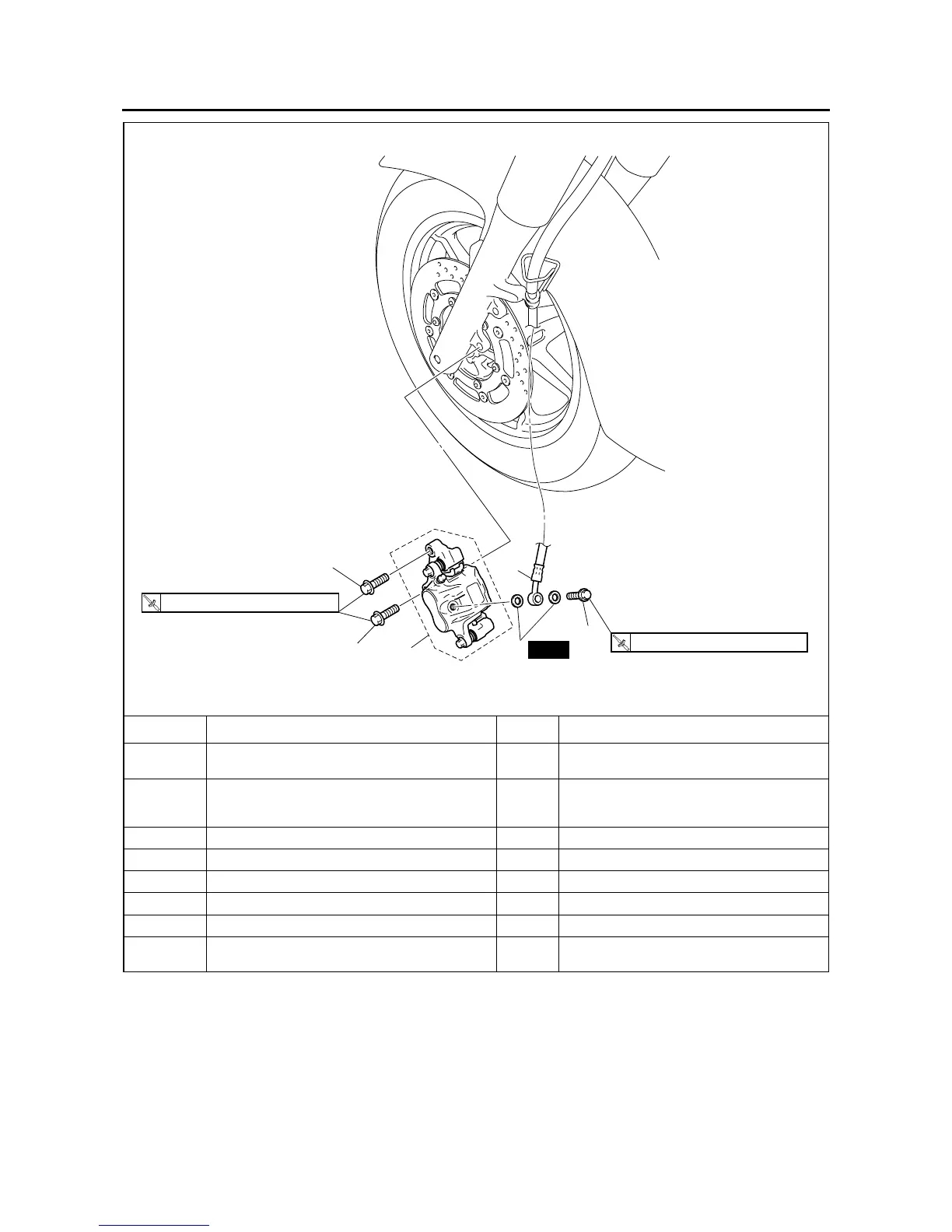

Removing the front brake calipers
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-21.
1 Front brake hose union bolt 1
2 Copper washer 2
3 Front brake hose 1
4 Front brake caliper bracket bolt 2
5 Front brake caliper 1
For installation, reverse the removal proce-
dure.
1
2
5
3
4
4
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
New
