FRONT BRAKE
4-24

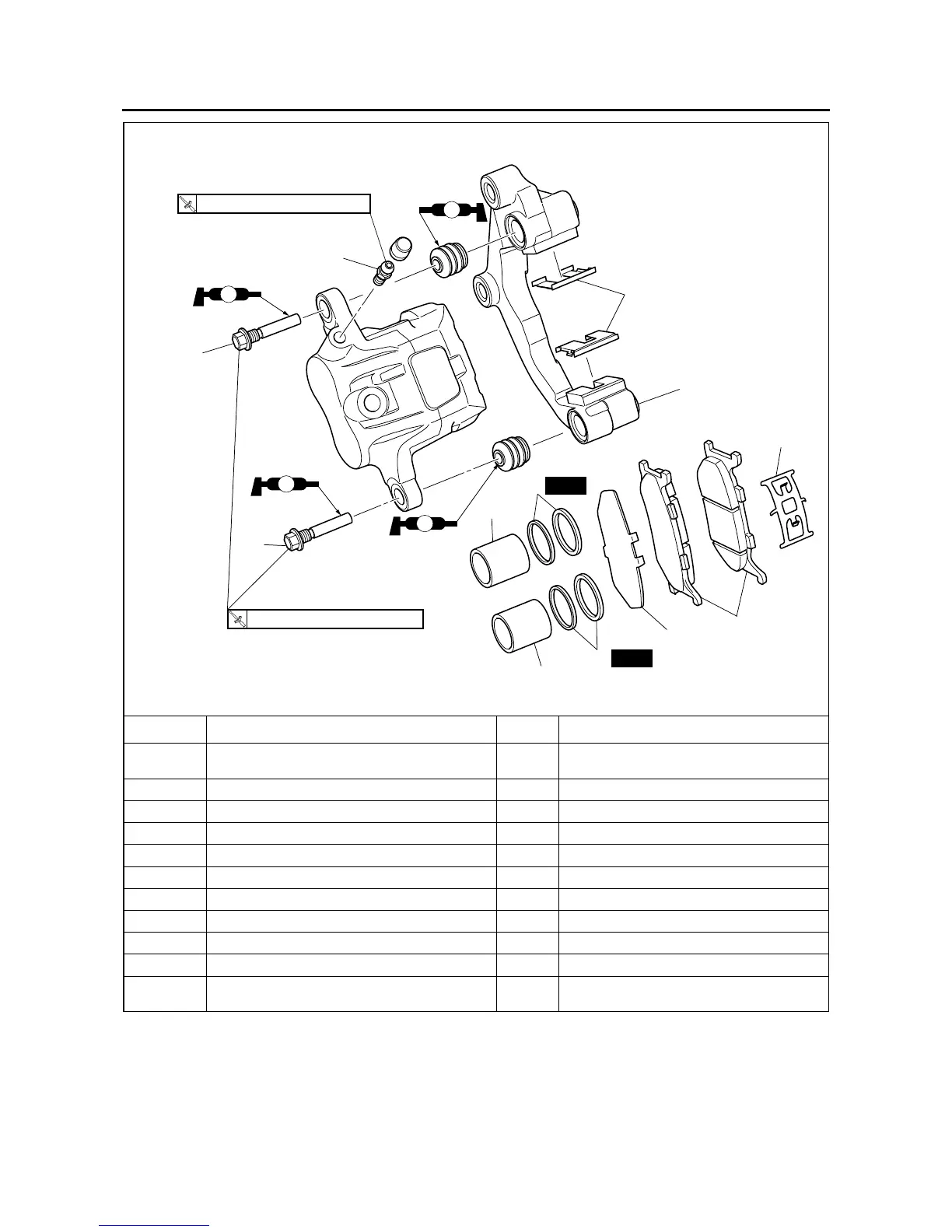

Disassembling the front brake calipers
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
1 Front brake caliper retaining bolt 2
2 Brake pad spring 1
3Brake pad 2
4 Brake pad shim 1
5 Brake pad support 2
6 Brake caliper bracket 1
7 Brake caliper piston seal 4
8 Brake caliper piston 2
9 Bleed screw 1
For assembly, reverse the disassembly pro-
cedure.
6
2
3
4
5
9
1
1
7
8
7
8
T
R
.
.
27 Nm (2.7 m
•
kg, 19 ft
•
Ib)
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
New
New
LS
LS
LS
LS
