Yamaha XVS1300A 2007 - Page 211

CAMSHAFTS
5-12

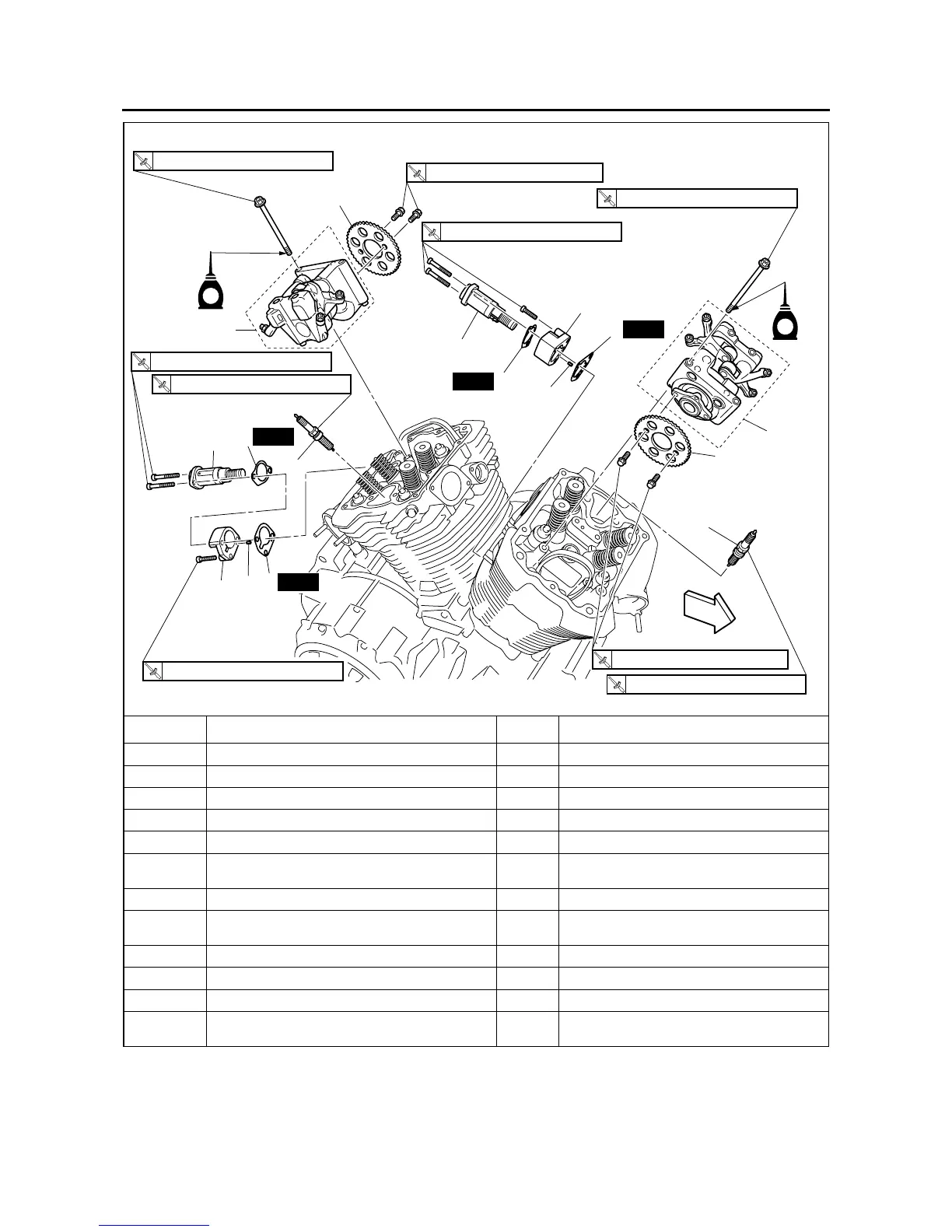

Removing the camshaft assemblies
Order Job/Parts to remove Q’ty Remarks
1 Spark plug 2
2 Timing chain tensioner 2
3 Timing chain tensioner gasket 2
4 Rear cylinder timing chain tensioner housing 1
5Pin 2
6
Rear cylinder timing chain tensioner housing
gasket
1
7 Front cylinder timing chain tensioner housing 1
8
Front cylinder timing chain tensioner housing
gasket
1
9 Camshaft sprocket 2
10 Rear cylinder camshaft assembly 1
11 Front cylinder camshaft assembly 1
For installation, reverse the removal proce-
dure.
FWD
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
E
E
T
R
.
.
20 Nm (2.0 m
•
kg, 14 ft
•
Ib)
T
R
.
.
20 Nm (2.0 m
•
kg, 14 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
1
1
9
2
3
7
5
10
2
3
4
6
5
8
9
(4)
11
T
R
.
.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
T
R
.
.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
New
New
New
(4)
New
