CAMSHAFTS
5-13

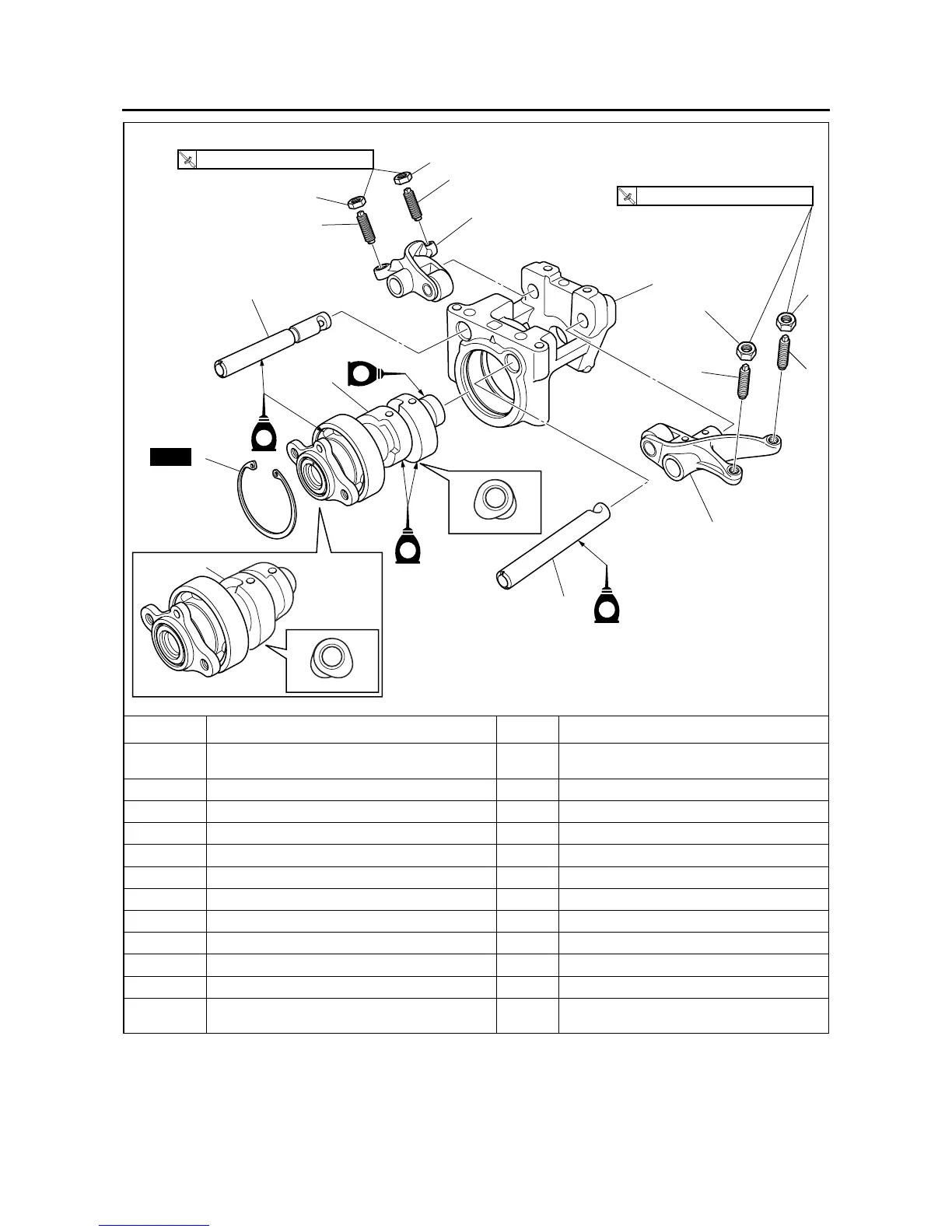

Removing the rocker arms and camshafts
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the camshaft assemblies
1 Locknut 4 Loosen.
2 Valve clearance adjusting screw 4
3 Intake rocker arm shaft 1
4 Exhaust rocker arm shaft 1
5 Intake rocker arm 1
6 Exhaust rocker arm 1
7 Circlip 1
8 Front cylinder camshaft 1
9 Rear cylinder camshaft 1
10 Camshaft carrier 1
For installation, reverse the removal proce-
dure.
EX
IN
EX
IN
E
E
M
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
M
New
1
1
2
2
3
5
8
9
7
4
6
2
10
1
2
1
