CYLINDER HEADS
5-25
NOTE:
• Lubricate the cylinder head nuts and washers
with engine oil.

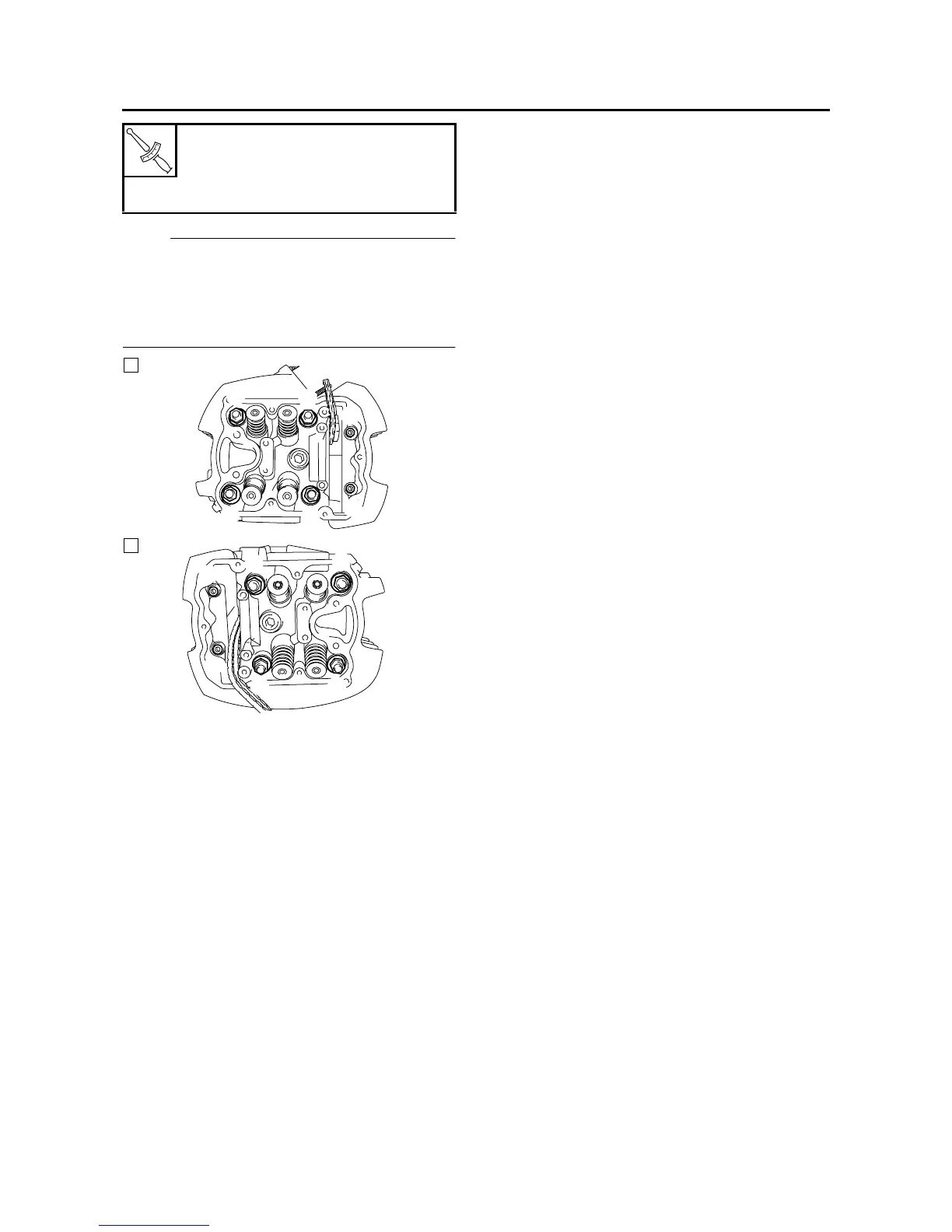

• Tighten the cylinder head nuts and bolts in the
proper tightening sequence as shown and
torque them in two stages.
T
R
.
.
Cylinder head nut
65 Nm (6.5 m·kg, 47 ft·lb)
Cylinder head bolt
13 Nm (1.3 m·kg, 9.4 ft·lb)
A. Front cylinder head
B. Rear cylinder head
3
2
4
6
5
1
A
6
5
1
3
2
4
B
