VALVES AND VALVE SPRINGS
5-26
EAS24270
VALVES AND VALVE SPRINGS

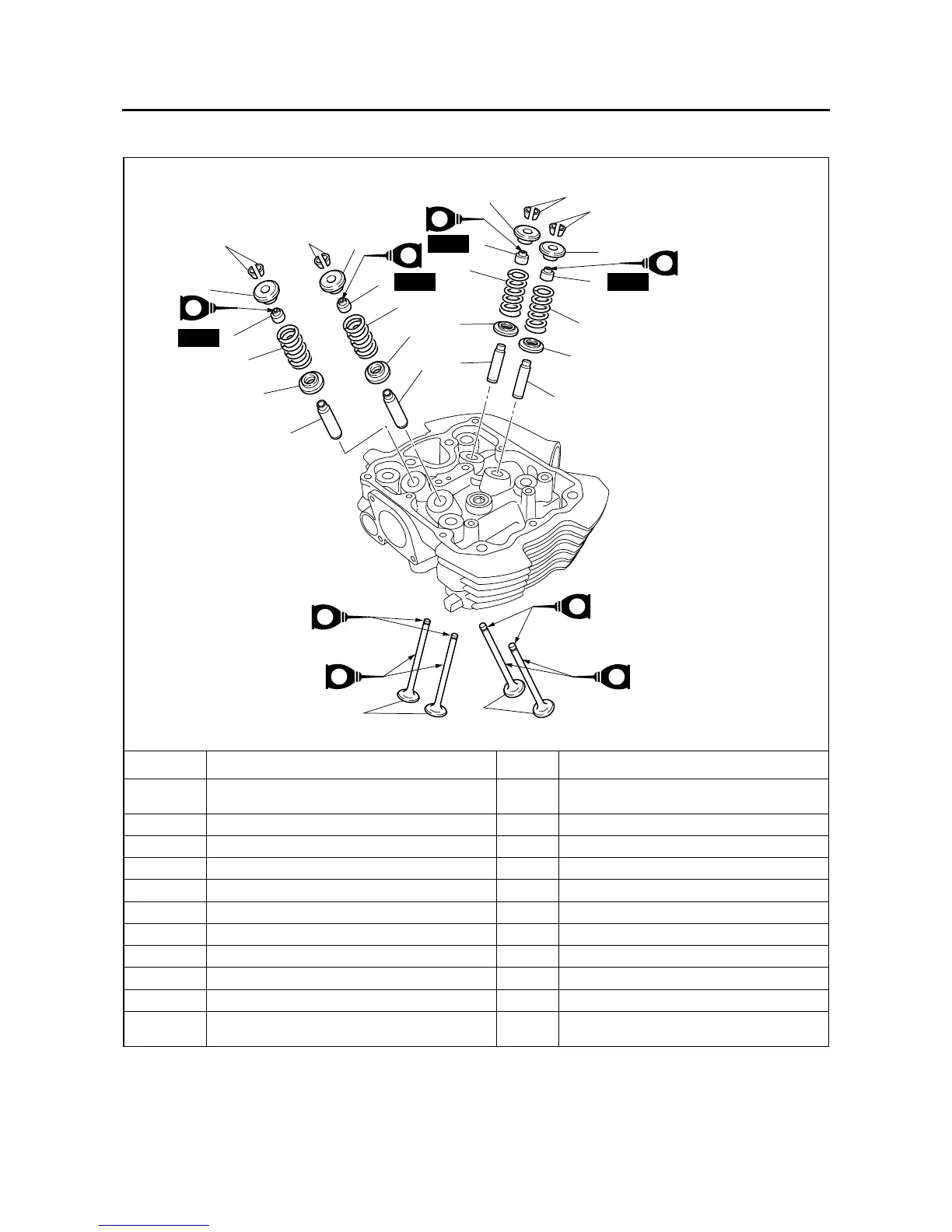

Removing the valves and valve springs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both cyl-
inders.
Cylinder heads Refer to “CYLINDER HEADS” on page 5-23.
1 Valve cotter 8
2 Upper spring seat 4
3 Valve spring 4
4 Intake valve 2
5 Exhaust valve 2
6 Valve stem seal 4
7 Lower spring seat 4
8 Valve guide 4
For installation, reverse the removal proce-
dure.
New
New
New
New
M
M
M
M
M
M
E
E
1
1
2
2
6
6
3
3
7
7
7
7
8
8
8
8
1
1
2
2
6
6
3
3
4
5
