CLUTCH
5-47

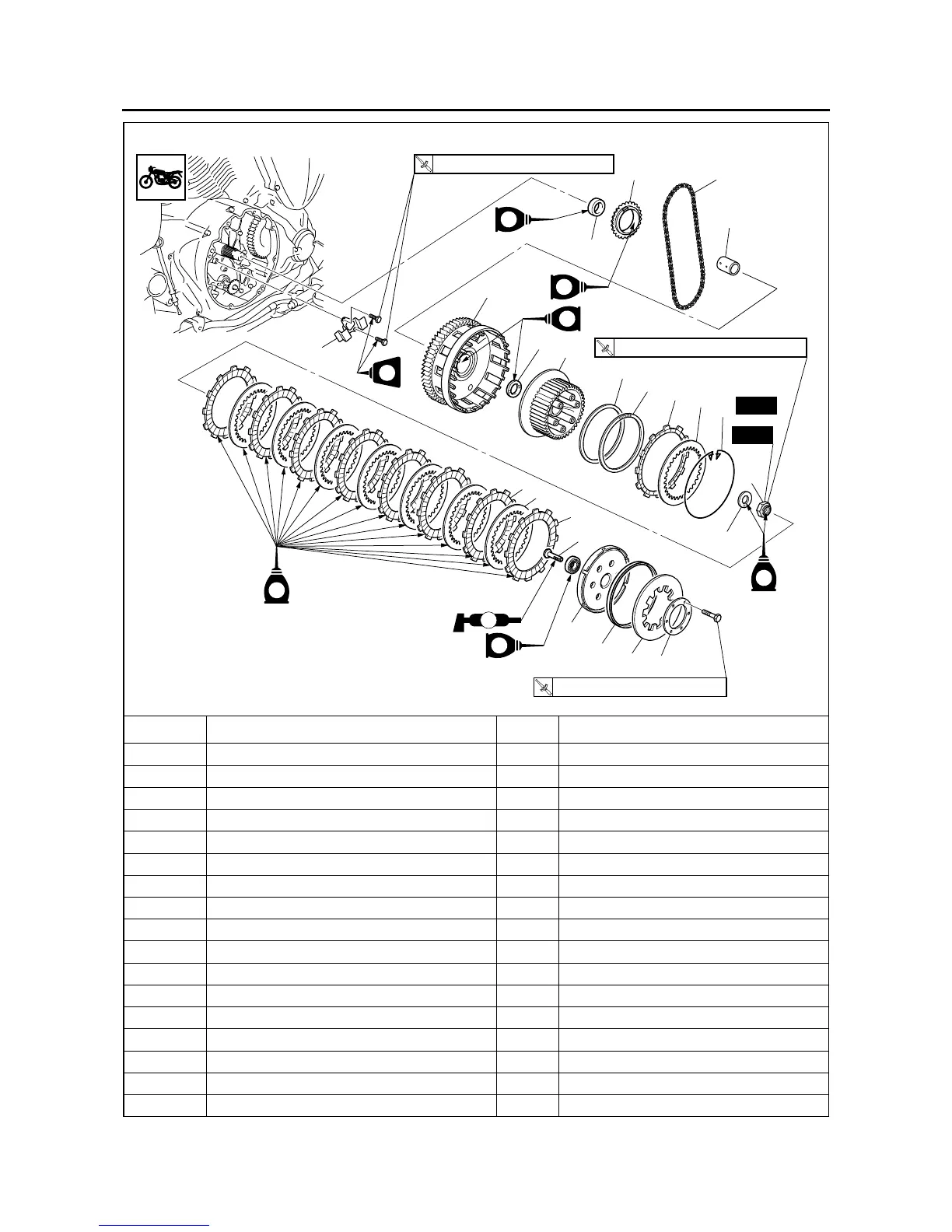

Removing the clutch
Order Job/Parts to remove Q’ty Remarks
1 Clutch spring plate retainer 1
2 Clutch spring plate 1
3 Clutch spring plate seat 1
4 Pressure plate 1
5 Pull rod 1
6 Friction plate 1 1 Inside diameter: 124 mm (4.88 in)
7 Clutch plate 7
8 Friction plate 2 7 Inside diameter: 124 mm (4.88 in)
9 Clutch boss nut 1
10 Conical spring washer 1
11 Wire circlip 1
12 Clutch plate 1
13 Friction plate 3 1 Inside diameter: 135 mm (5.31 in)
14 Clutch damper spring 1
15 Clutch damper spring seat 1
16 Clutch boss 1
17 Thrust washer 1 1
E
7
8
6
19
18
17
16
15
14
13
12
11
10
9
1
4
5
New
New
E
LS
23
22
21
20
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
E
E
E
LT
LT
2
(6)
3
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
125 Nm (12.5 m
•
kg, 90 ft
•
lb)
E
