Yamaha XVS1300A 2007 - Transmission

TRANSMISSION
5-79
EAS26240
TRANSMISSION

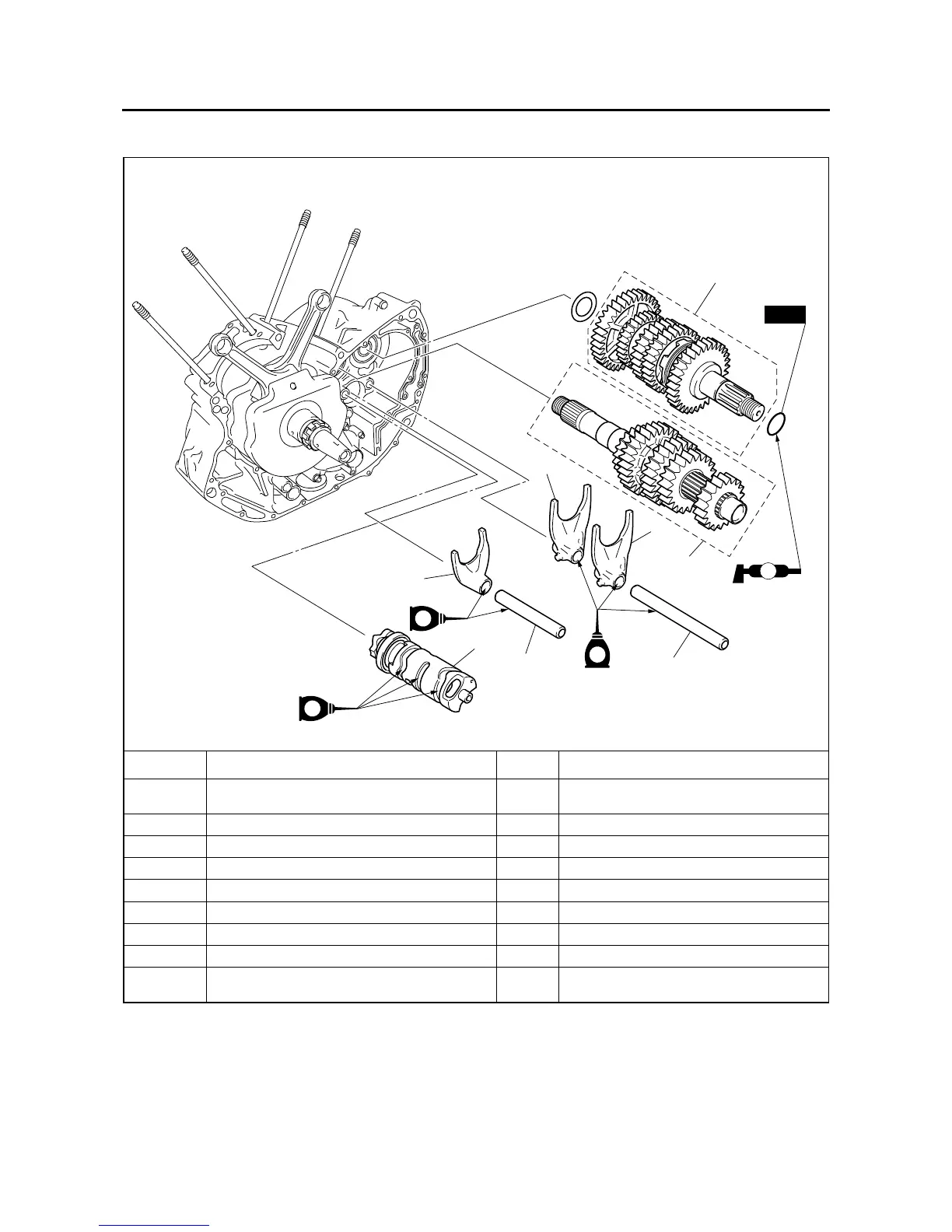

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-65.
1 Long shift fork guide bar 1
2 Short shift fork guide bar 1
3 Shift drum assembly 1
4 Shift fork 1 2
5 Shift fork 2 1
6 Main axle assembly 1
7 Drive axle assembly 1
For installation, reverse the removal proce-
dure.
New
LS
E
E
E
2
4
5
1
3
6
4
7
