Yamaha XVS1300A 2007 - Page 279

TRANSMISSION
5-80

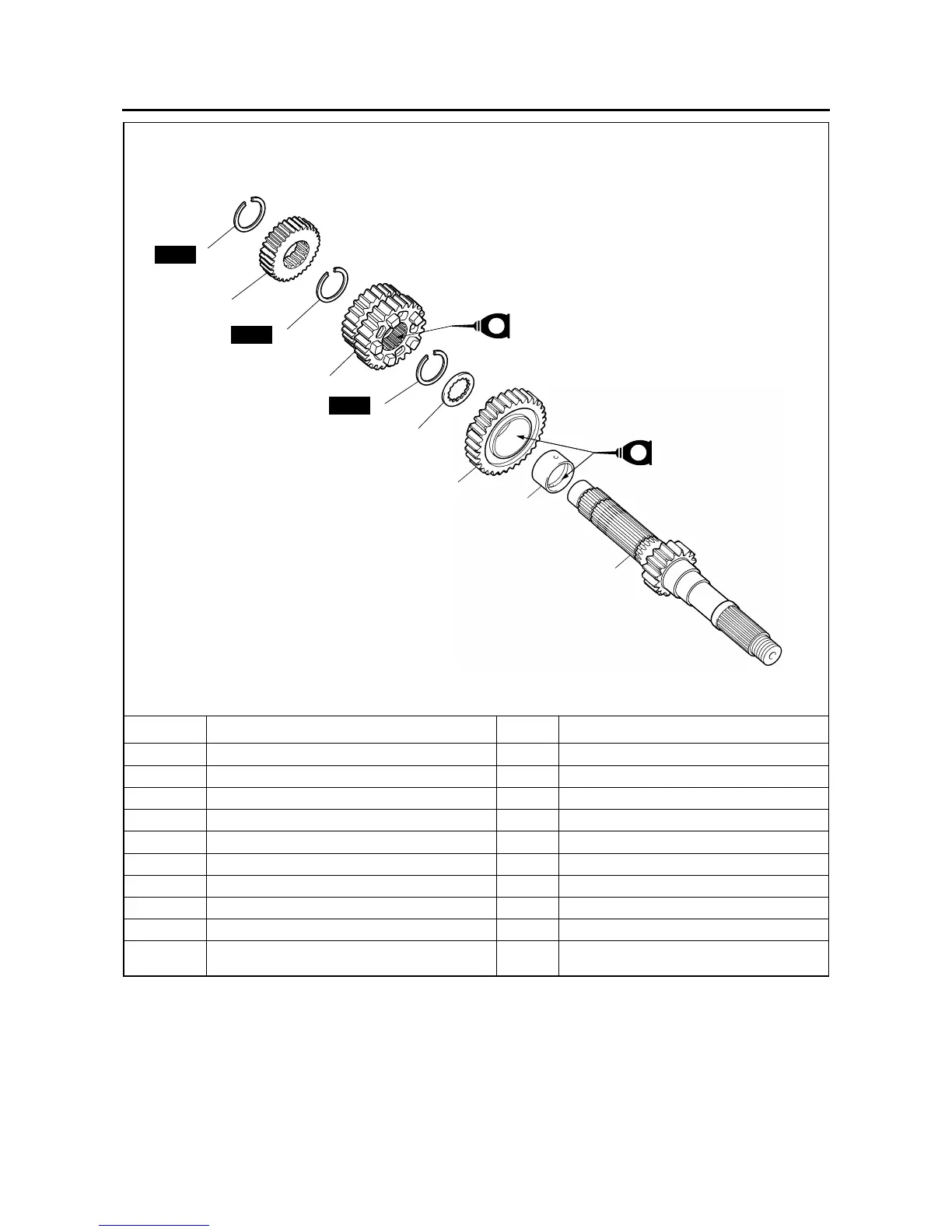

Disassembling the main axle assembly
Order Job/Parts to remove Q’ty Remarks
1 Circlip 1
2 2nd pinion gear 1
3 Circlip 1
4 3rd/4th pinion gear 1
5 Circlip 1
6 Toothed washer 1
7 5th pinion gear 1
8Collar 1
9 Main axle/1st pinion gear 1
For assembly, reverse the disassembly pro-
cedure.
New
New
New
M
M
1
2
3
4
5
6
7
8
9
