Yamaha XVS1300A 2007 - Page 280

TRANSMISSION
5-81

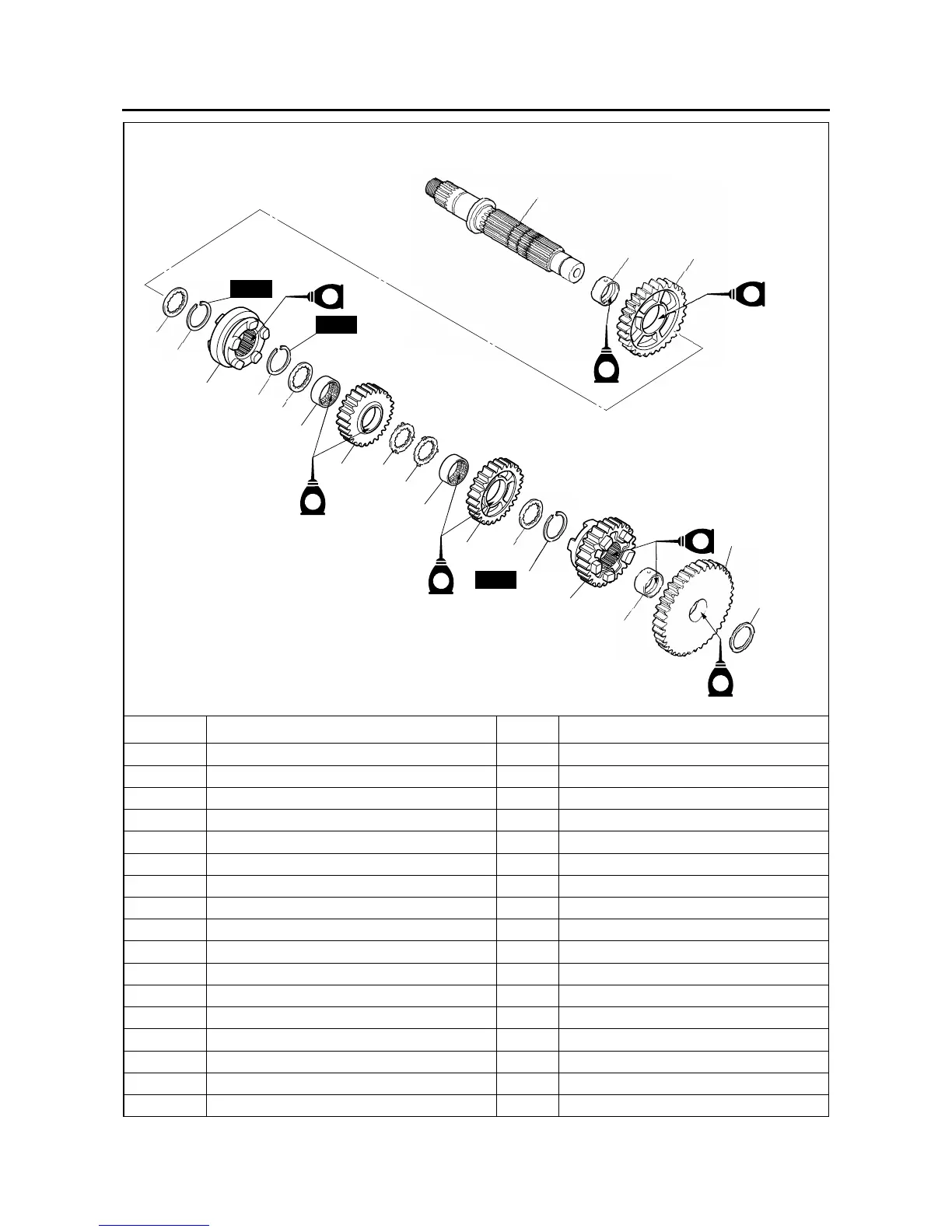

Disassembling the drive axle assembly
Order Job/Parts to remove Q’ty Remarks
1Washer 1
2 1st wheel gear 1
3Collar 1
4 5th wheel gear 1
5 Circlip 1
6 Toothed washer 1
7 4th wheel gear 1
8 Toothed spacer 1
9 Toothed lock washer 1
10 Toothed lock washer retainer 1
11 3rd wheel gear 1
12 Toothed spacer 1
13 Toothed washer 1
14 Circlip 1
15 Dog clutch 1
16 Circlip 1
17 Toothed washer 1
New
New
New
M
M
M
M
M
M
M
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
