FUEL TANK
7-1
EAS26620

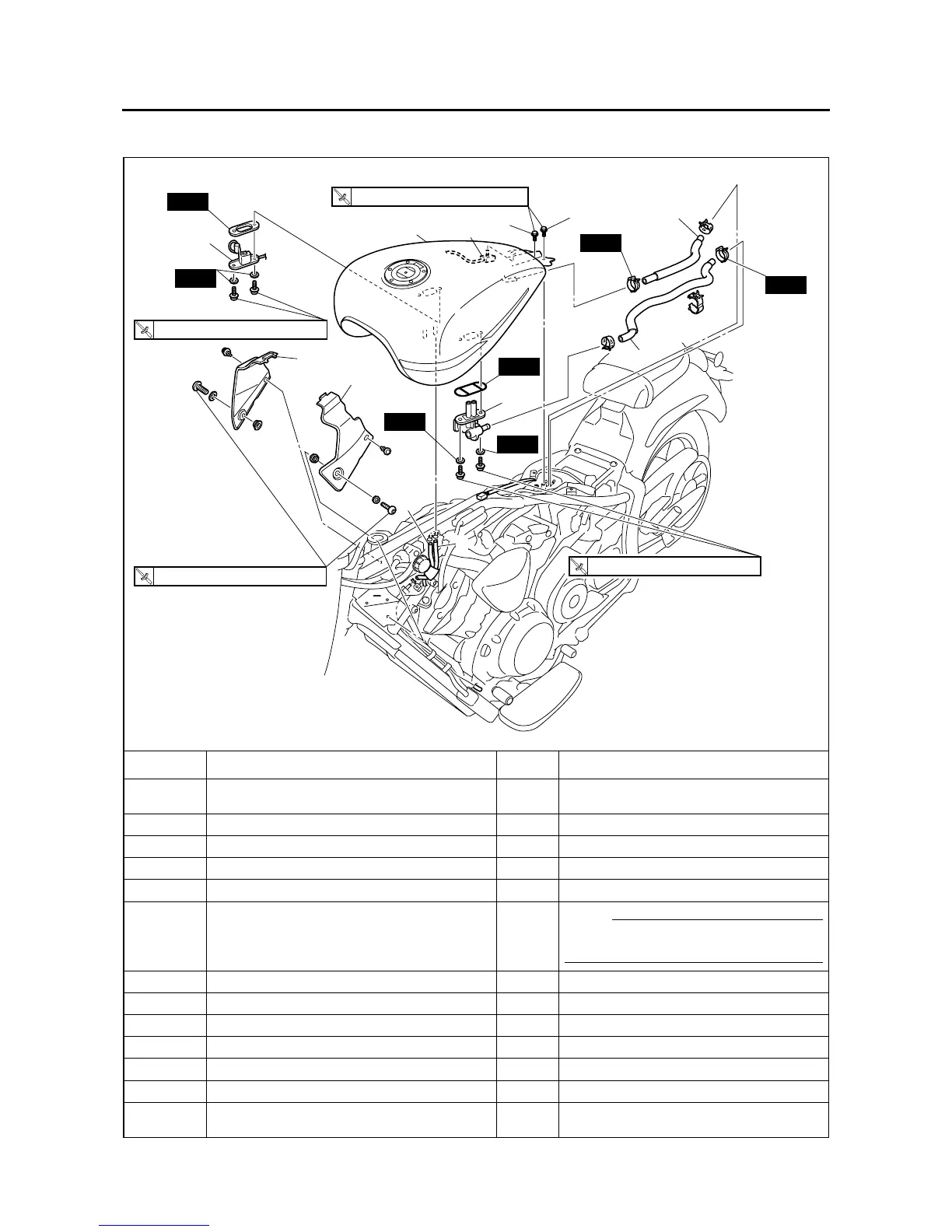

FUEL TANK
Removing the fuel tank
Order Job/Parts to remove Q’ty Remarks
Rider seat/Relay cover
Refer to “GENERAL CHASSIS” on page
4-1.
1 Fuel tank bolt 2
2 Right side panel 1
3 Left side panel 1
4 Fuel sender coupler 1 Disconnect.
5 Fuel cock hose 1
NOTE:
Before removing the fuel cock hose, turn the
fuel cock to “OFF”.
6 Air vent hose 1
7 Fuel tank overflow hose 1
8 Fuel tank breather hose (fuel tank to hose joint) 1
9Fuel tank 1
10 Fuel sender 1
11 Fuel cock 1
For installation, reverse the removal proce-
dure.
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
New
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
New
5
6
1
9
2
3
10
11
7
8
1
New
New
New
New
New
4
To Next Page
