FUEL TANK
7-2

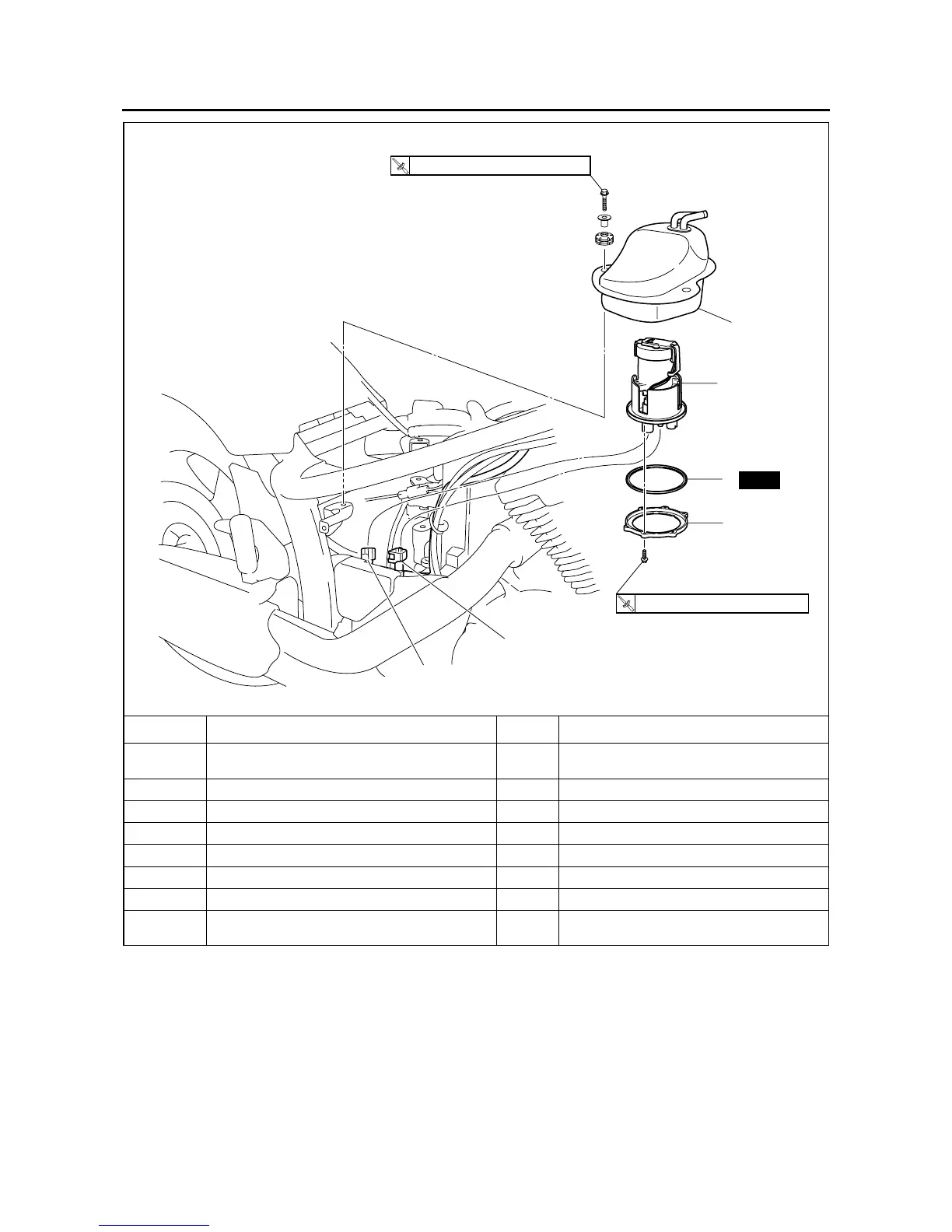

Removing the sub-fuel tank
Order Job/Parts to remove Q’ty Remarks
Rider seat/Sub-fuel tank cover/Battery box
Refer to “GENERAL CHASSIS” on page
4-1.
1 Fuel pump coupler 1 Disconnect.
2 Fuel hose 1 Disconnect.
3 Sub-fuel tank 1
4 Fuel pump bracket 1
5 Fuel pump gasket 1
6 Fuel pump 1
For installation, reverse the removal proce-
dure.
4
5
6
3
1
2
New
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
(
3
)
(
3
)
(
3
)
(
6
)
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
To Next Page
