3.9 Connect to a PC
This drive is equipped with a USB port (type-B)
.
The drive can connect to a USB port on a PC using a USB 2.0, AB-type cable (sold separately). After connecting the drive to
a PC, Yaskawa DriveWizard Industrial software can be used to monitor drive performance and manage parameter settings.
Contact Yaskawa for more information on DriveWizard Industrial.
PC
(Type-B) (Type-A)
USB Cable
(Type-AB)

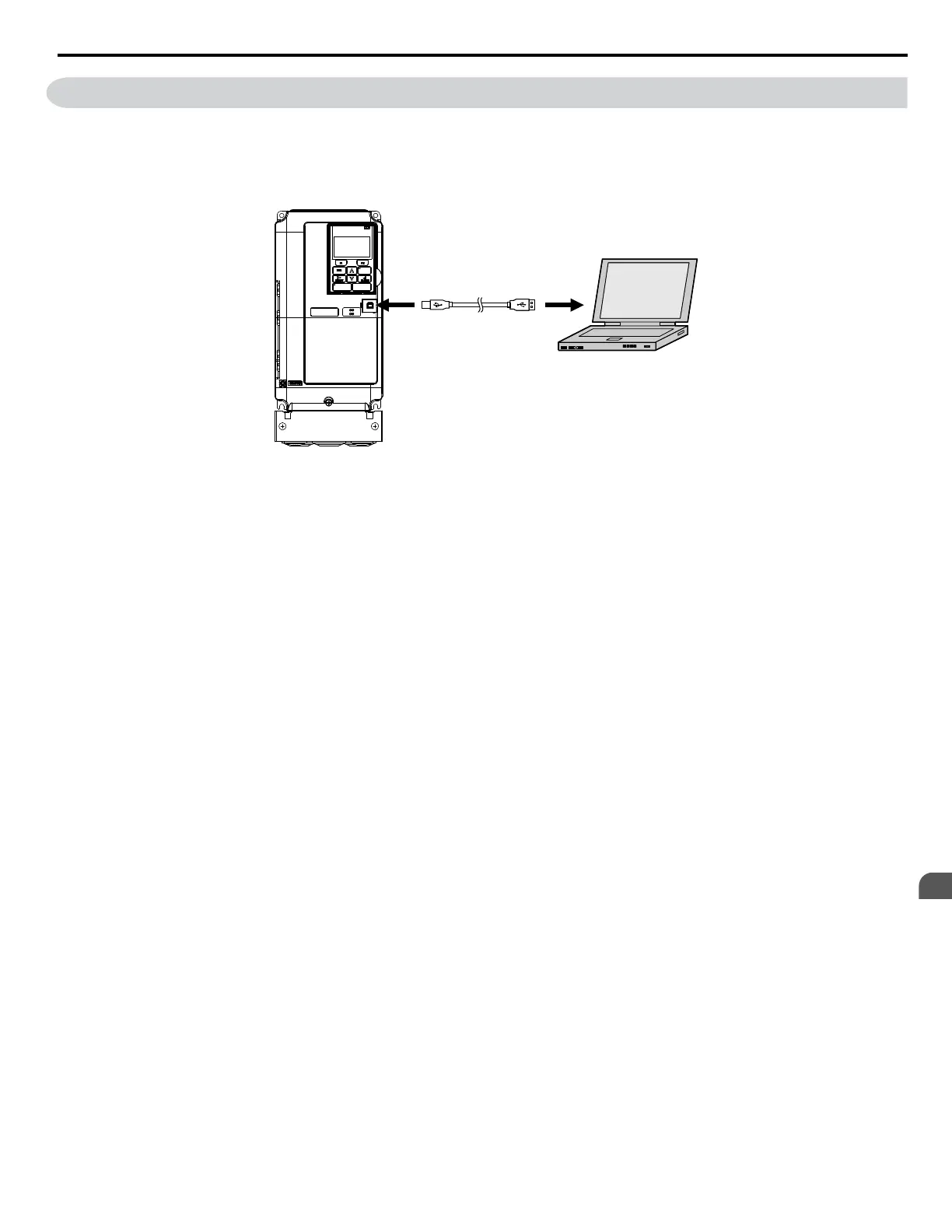

Figure 3.33 Connecting to a PC (USB)
