YASKAWA A1000 Series - Flange Type Models 2 A0250 and 2 A0312, 4 A0208, and 5 A0125 and 5 A0145

u
Flange Type Models 2A0250 and 2A0312, 4A0208, and 5A0125 and 5A0145
n
Flange Type Exterior and Mounting Dimensions
Unit: in. [mm]
(13)-MOUNTING HOLES
FOR 3/8 in. [M10] SCREWS
M100 THREAD
FRONT VIEW
AIR
AIR
(2) MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING
(2) EXTERNAL
COOLING FANS
NOTE: Spreader bar required to avoid damage during lifting.
LIFTING AND EYEBOLT DETAILS
HORIZONTAL MOUNTING DIM
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
VERTICAL MOUNTING DIMVERTICAL MOUNTING DIMVERTICAL MOUNTING DIM
HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIMHORIZONTAL MOUNTING DIM

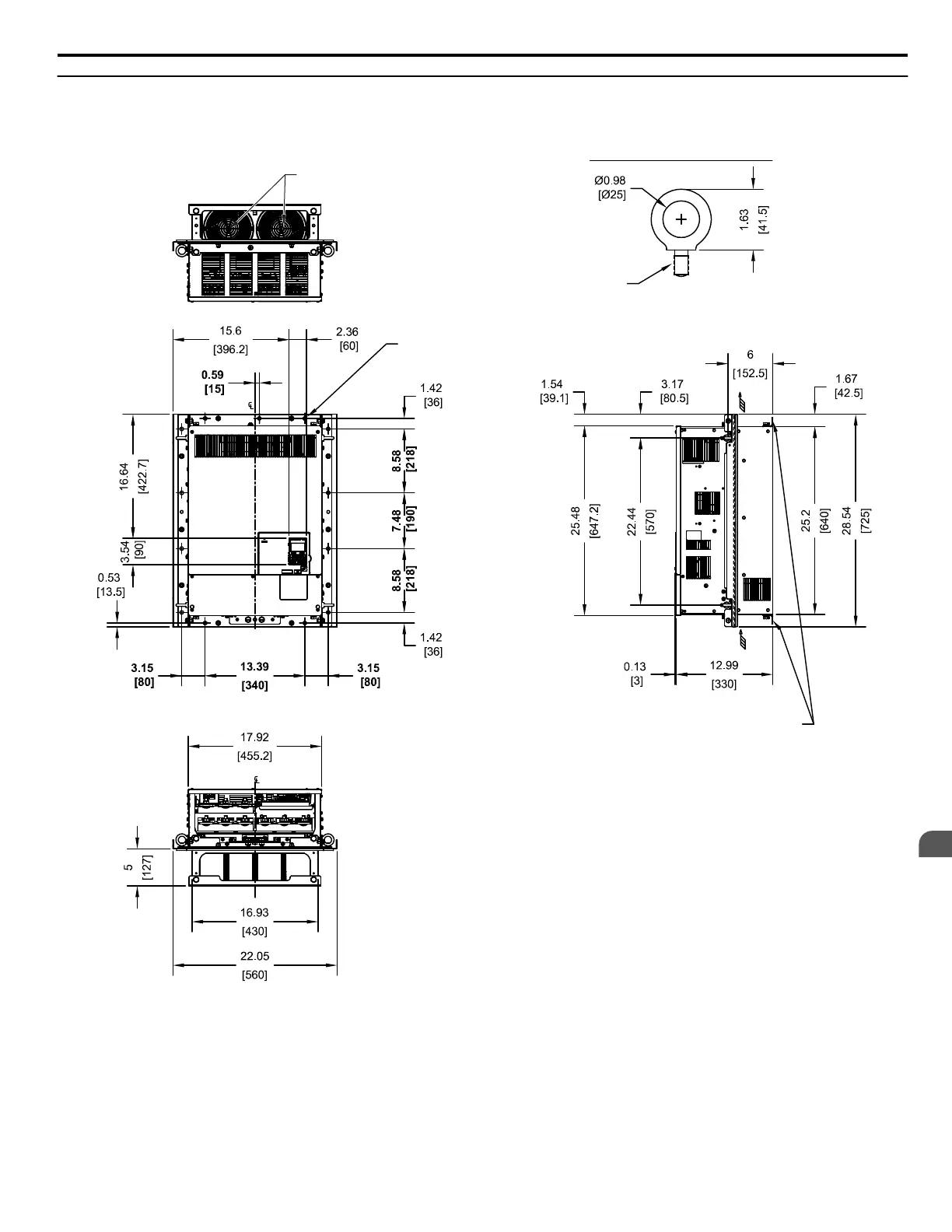

Figure 2.29 Models 2A0250 and 2A0312, 4A0208, and 5A0125 and 5A0145
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
67
2
Mechanical Installation
