Flange Type Models 4A0930 and 4A1200
n
Flange Type Exterior and Mounting Dimensions
HORIZONTAL MOUNTING DIM
M16 THREAD
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
(6) EXTERNAL
COOLING FANS
LIFTING AND EYEBOLT DETAILS
(20) MOUNTING HOLES
FOR 1/2 in. [M12] SCREWS
Unit: in. [mm]
NOTE: Spreader bar required to avoid damage during lifting.
FRONT VIEW
VERTICAL MOUNTING DIM
(2)-MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING

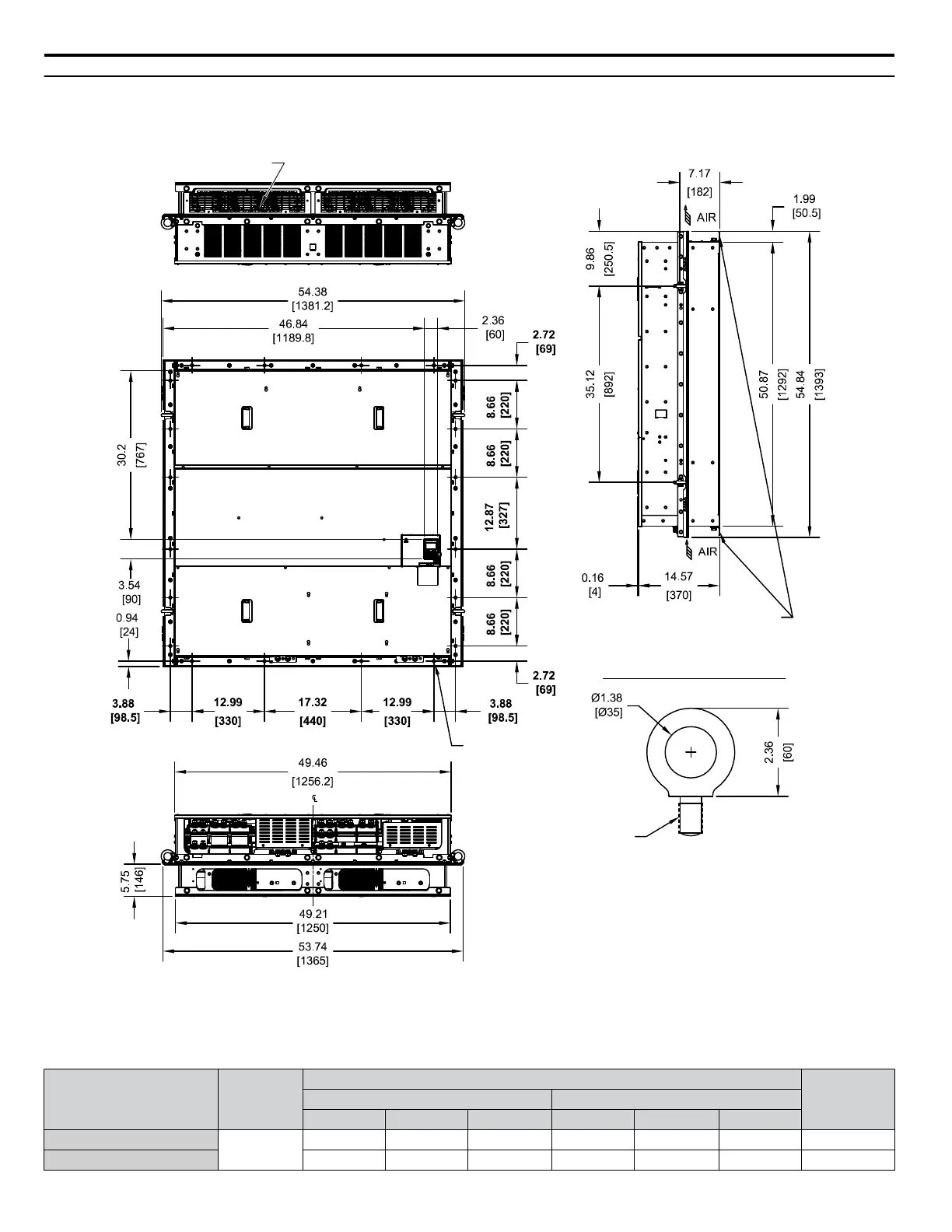

Figure 2.37 Models 4A0930 and 4A1200
n
Flange Type Heat Loss Data
Table 2.24
Models 4A0930 and 4A1200
Drive Model
Voltage
Class
Heat Loss (W)
Wt. kg (lb)ND (Fc = 2 kHz) HD (Fc = 8 kHz)
Internal External Total Internal External Total
4A0930
400
2952 8476 11428 2455 6912 9367 575 (1265)
4A1200 3612 8572 12184 3155 7626 10781 587 (1291)
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
