YASKAWA A1000 Series

n

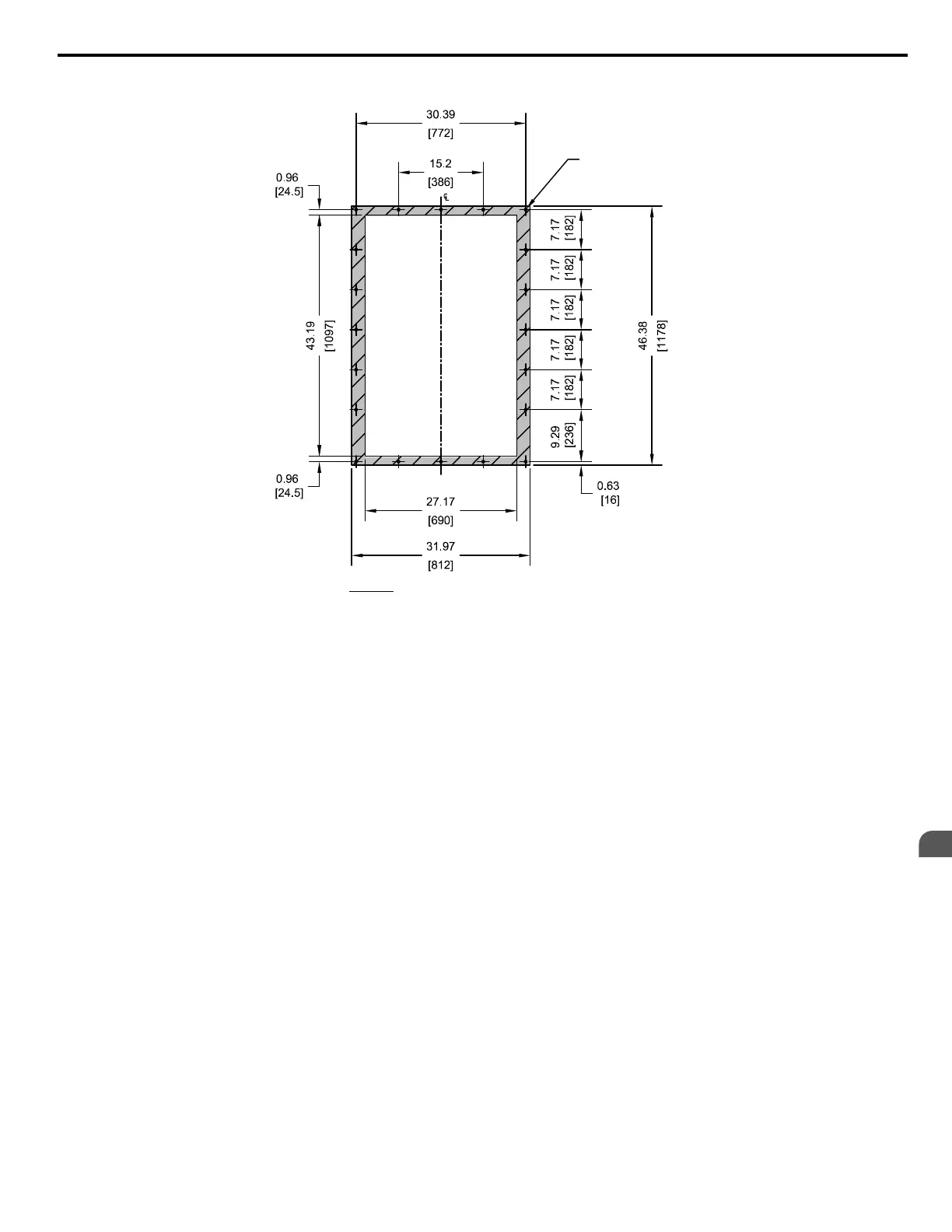

Flange Type Panel Cutout Dimensions for External Heatsink Mounting
CUTOUT
NOTES:
1. CUTOUT TOLERANCES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK DEPTH
3. MINIMUM RECOMMENDED PANEL
THICKNESS: 10 GA
D=7.71 in. [196 mm] MINUS PANEL THICKNESS
(20)-3/8 in. [M10]
THREADED HOLES
Unit: in. [mm]
Figure 2.36 Models 4A0515 and 4A0675
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
75
2
Mechanical Installation
