u
Flange Type Models 2A0138, 4A0072, and 5A0041 and 5A0052
n

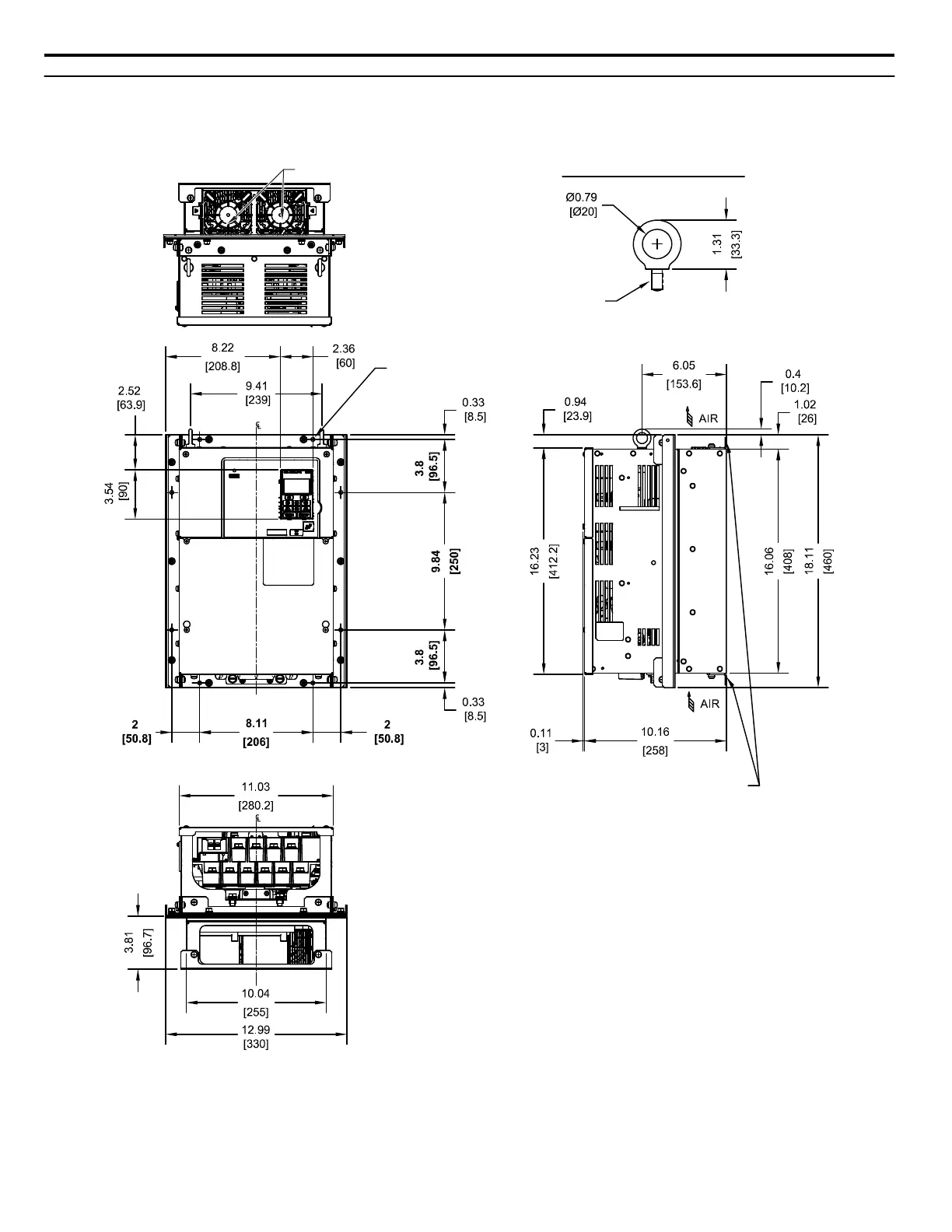

Flange Type Exterior and Mounting Dimensions
NOTE: Spreader bar required to avoid damage during lifting.
LIFTING AND EYEBOLT DETAILS
(2) EXTERNAL
COOLING FANS
(2) MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
Unit: in. [mm]
M8 THREAD
(8) MOUNTING HOLES
FOR 1/4 in. [M6] SCREWS
FRONT VIEW
VERTICAL MOUNTING DIM
VERTICAL MOUNTING DIMVERTICAL MOUNTING DIM
HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIM
Figure 2.23 Models 2A0138, 4A0072, and 5A0041 and 5A0052
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
60
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
