YASKAWA A1000 Series User Manual

4.1 Using the Digital Operator
Use the digital operator to enter Run and Stop commands, edit parameters, and display data including fault and alarm
information.
u
Digital Operator Keys and Displays
LO
RE
F2F1
ESC
RUN
STOP
ENTERRESET
ALM
DIGITAL OPERATOR
12
11
9
8
1
2
3
10
4 5 6 7

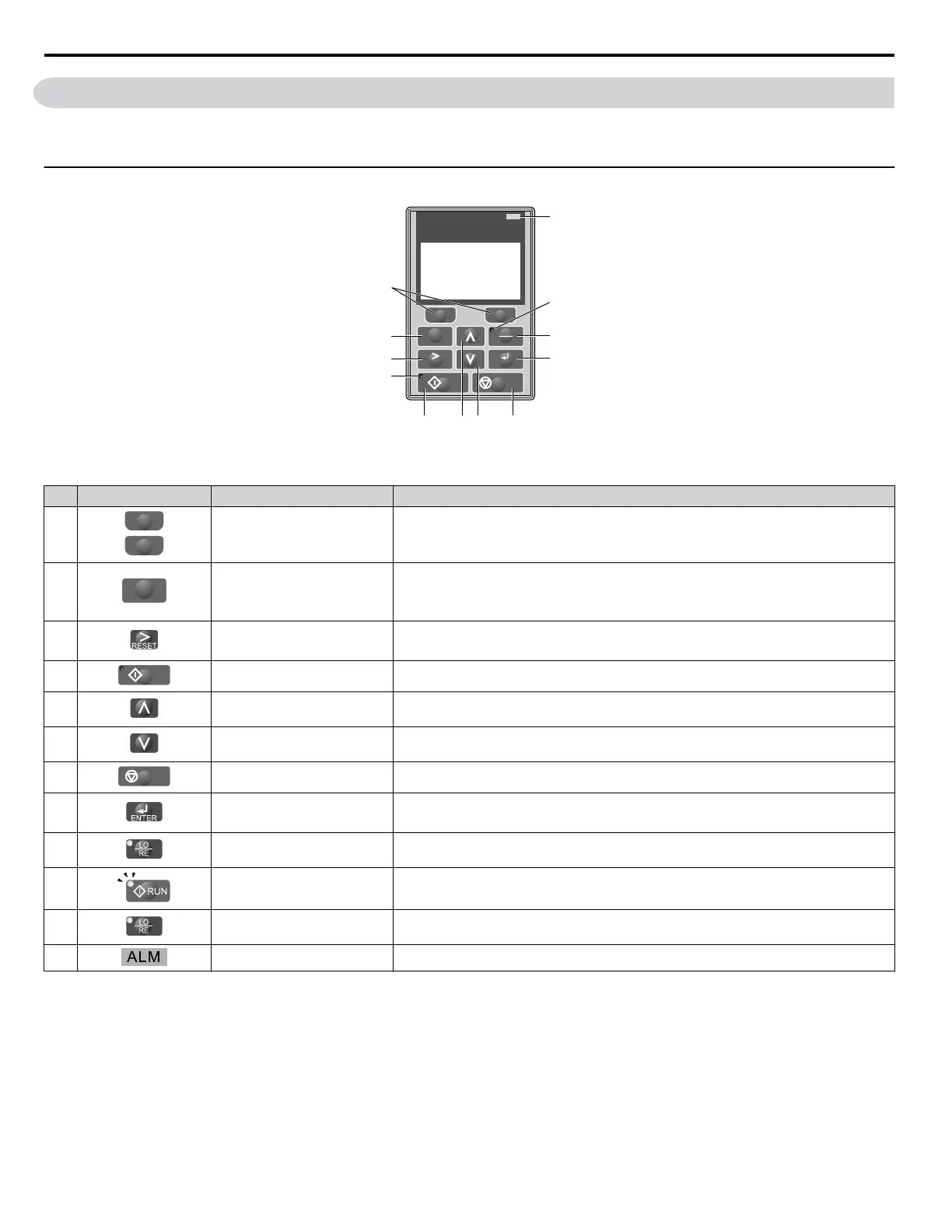

Figure 4.1 Keys and Displays on the Digital Operator
No. Display Name Function
1
F1
F2
Function Key
(F1, F2)
The functions assigned to F1 and F2 vary depending on the currently displayed menu. The
name of each function appears in the lower half of the display window.
2
ESC
ESC Key
• Returns to the previous display.
• Moves the cursor one space to the left.
• Pressing and holding this button will return to the Frequency Reference display.
3
RESET Key
• Moves the cursor to the right.
•
Resets the drive to clear a fault situation.
4
RUN
RUN Key Starts the drive in LOCAL mode.
5 Up Arrow Key
Scrolls up to display the next item, selects parameter numbers, and increments setting
values.
6 Down Arrow Key
Scrolls down to display the previous item, selects parameter numbers, and decrements
setting values.
7
STOP
STOP Key
<1>
Stops drive operation.
8 ENTER Key
• Enters parameter values and settings.
•
Selects a menu item to move between displays
9
LO/RE Selection Key
<2>
Switches drive control and frequency setting between the operator (LOCAL) and an
external source (REMOTE).
10
RUN Light Lit while the drive is operating the motor. Refer to page 122 for details.
11 LO/RE Light
Lit while the operator is selected to run the drive (LOCAL mode). Refer to page 122 for
details.
12 ALM LED Light Refer to ALARM (ALM) LED Displays on page 122.
<1> The STOP key has highest priority. Pressing the STOP key will always cause the drive to stop the motor, even if a Run command is active at any
external Run command source. To disable the STOP key priority, set parameter o2-02 to 0.
<2> The
LO/RE key can only switch between LOCAL and REMOTE when the drive is stopped. To disable the LO/RE key to prohibit switching between
LOCAL and REMOTE, set parameter o2-01 to 0.
4.1 Using the Digital Operator
120
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
