YASKAWA A1000 Series User Manual

1.1 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
•
Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received the wrong model or the drive does not function properly, contact Yaskawa or a Yaskawa representative.
u
Nameplate
J
I
H
G
E
B
A
PRG:
IND.CONT.EQ.
7J48
YASKAWA ELECTRIC CORPORATION MADE IN JAPAN
: CIMR-A
PASS
MODEL
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
TYPE 1 ENCLOSURE
REV : A
: AC3PH 200-240V 50/60Hz 24A/18.9A
: AC3PH 0-240V 0-400Hz 21A/17.5A
: 3.7 kg
:
:
: E131457 IP20
C/C CIMR-A
2-1 Kurosaki-shiroishi, Yahatanishi-Ku, Kitakyushu 806-0004 Japan
D
F
C
□□□□
□□□□□□□□□□□□□□□□□□□□
□□□□□□□□□□□□□□□□□□□□
A – Normal Duty Amps / Heavy Duty
Amps
B
– Software version
C –
CE and TÜV Certification
<1>
D – Enclosure type
E –
Address
<2>
F – Serial number
G
– Lot number
H – Output specifications
I – Input specifications
J – AC drive model

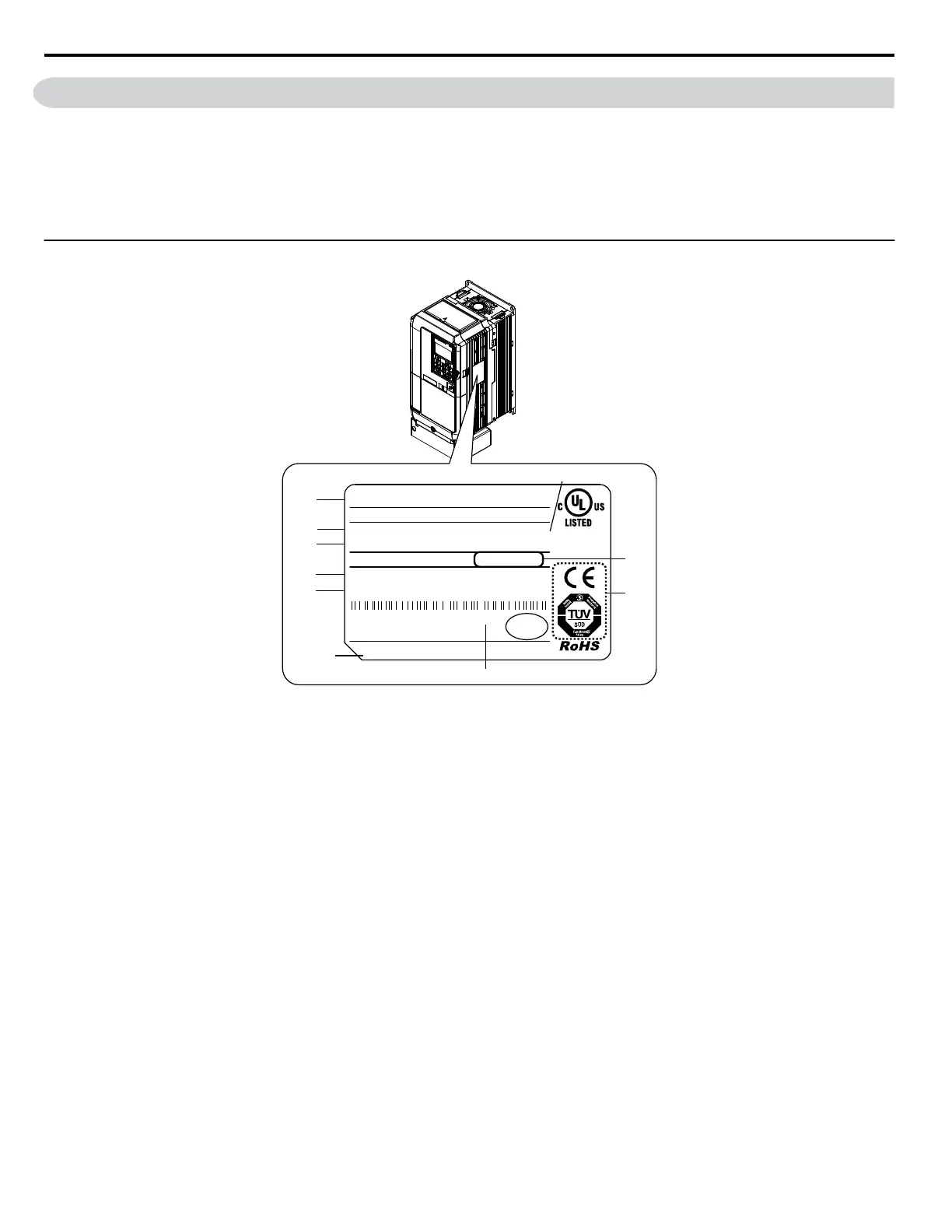

Figure 1.1 Nameplate Information Example
<1>
Certification is model-dependent. Refer to UL and CSA Standards on page 340 for details.
<2> The address of the head office of Yaskawa Electric Corporation (responsible for product liability) is shown on the nameplate.
1.1 Model Number and Nameplate Check
22
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
