YASKAWA A1000 Series - Flange Type Models 2 A0018 and 2 A0021, 4 A0007 to 4 A0011, and 5 A0006 and 5 A0009

u
Flange Type Models 2A0018 and 2A0021, 4A0007 to 4A0011, and 5A0006 and 5A0009
n

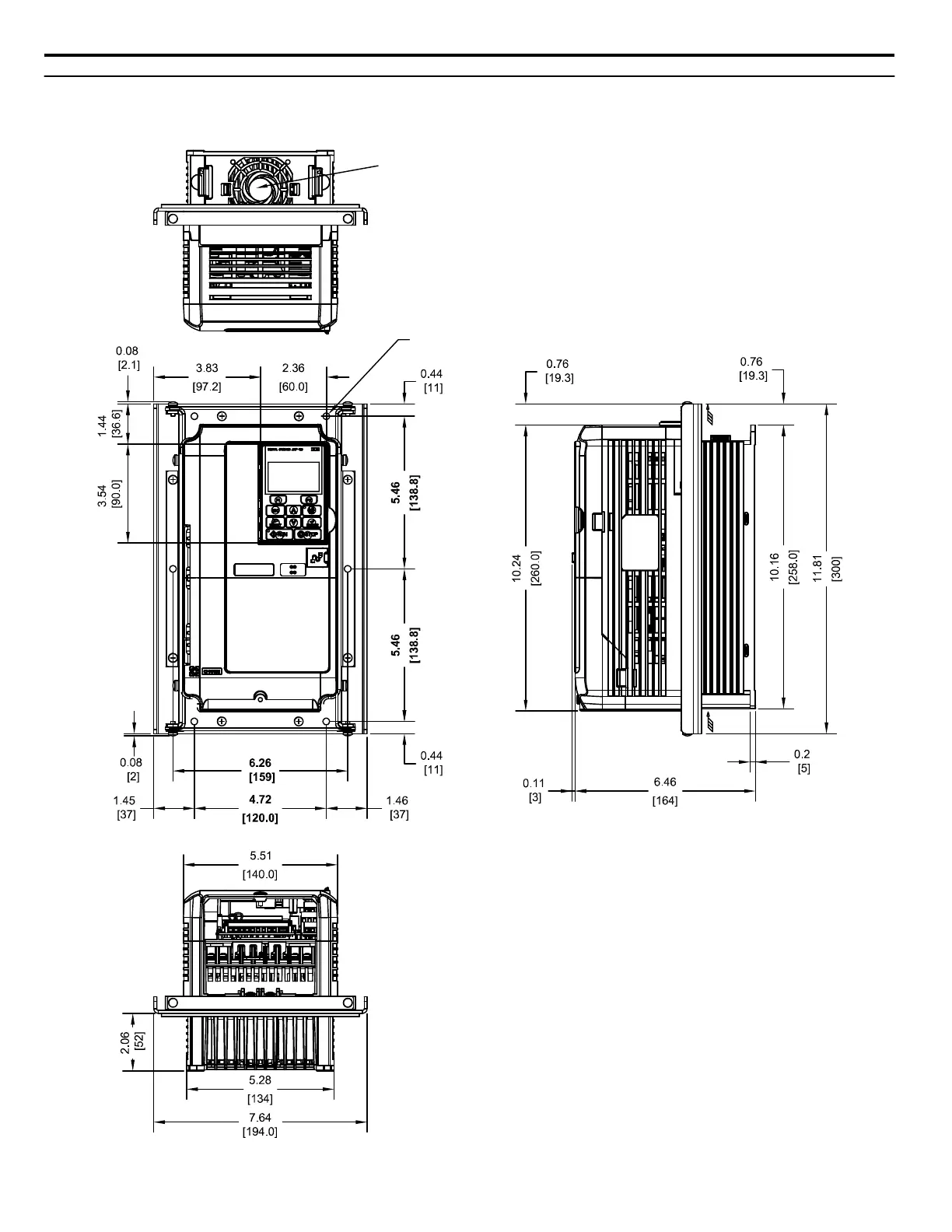

Flange Type Exterior and Mounting Dimensions
(1) EXTERNAL
COOLING FAN
NOTE: Maximum surrounding air temperature is 50 °C [122 °F]
(6)-MOUNTING
HOLES FOR
#10[M5] SCREWS
VERTICAL MTG DIM
VERTICAL MTG DIM
FRONT VIEW
HORIZONTAL MTG DIM
HORIZONTAL MTG DIM
AIR
AIR
Unit: in. [mm]
Figure 2.11 Models 2A0018 and 2A0021, 4A0007 to 4A0011, and 5A0006 and 5A0009
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
44
