n

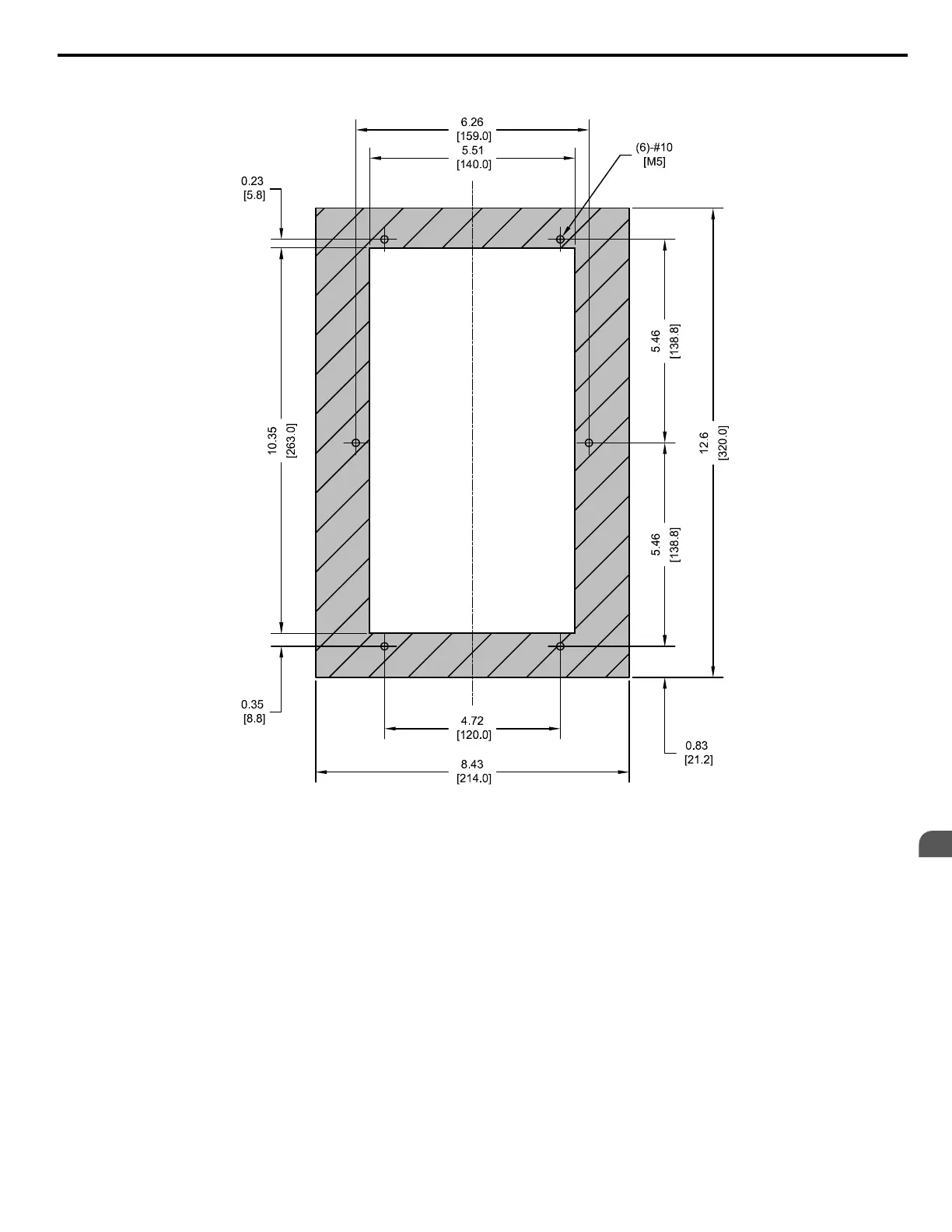

Flange Type Panel Cutout Dimensions for External Heatsink Mounting
Unit: in. [mm]
CUTOUT
NOTES:
1. CUTOUT TOLERANCES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK
RECOMMENDED CLEARANCE
D=1.97 in. [50 mm] MINUS PANEL THICKNESS
Figure 2.10 Models 2A0004 to 2A0012, 4A0002 to 4A0005, and 5A0003 and 5A0004
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
43
2
Mechanical Installation
