YASKAWA A1000 Series User Manual

u
Flange Type Models 2A0030 and 2A0040, 4A0018 and 4A0023, and 5A0011
n
Flange Type Exterior and Mounting Dimensions
NOTE: Maximum surrounding air temperature is 50 °C [122 °F]
Unit: in. [mm]
(6)-MOUNTING
HOLES FOR
#10[M5] SCREWS
FRONT VIEW
AIR
VERTICAL MTG DIM VERTICAL MTG DIM
HORIZONTAL MTG DIM
HORIZONTAL MTG DIM
[2] EXTERNAL
COOLING FANS
AIR

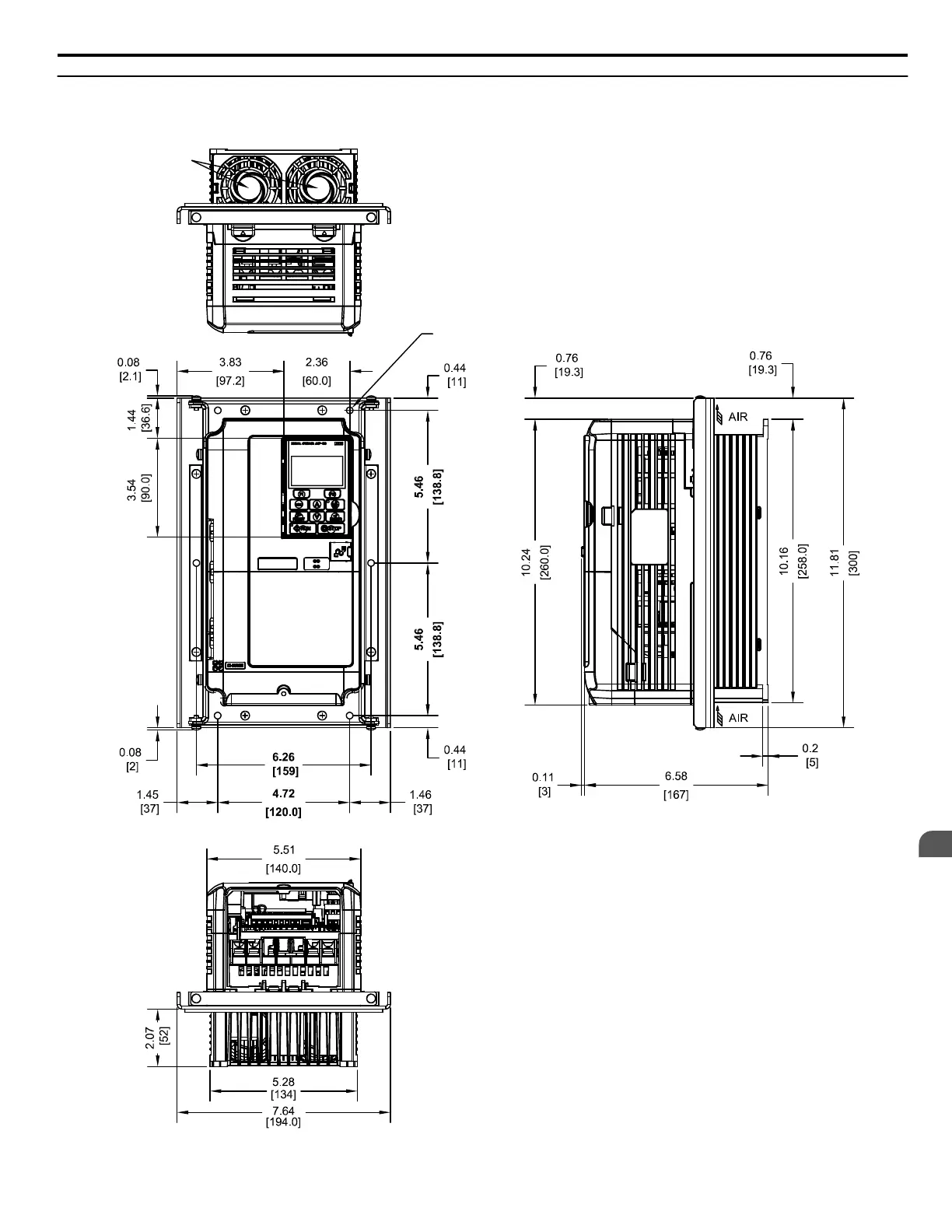

Figure 2.13 Models 2A0030 and 2A0040, 4A0018 and 4A0023, and 5A0011
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
47
2
Mechanical Installation

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
