YASKAWA A1000 Series User Manual

u
Flange Type Models 4A0515 and 4A0675
n

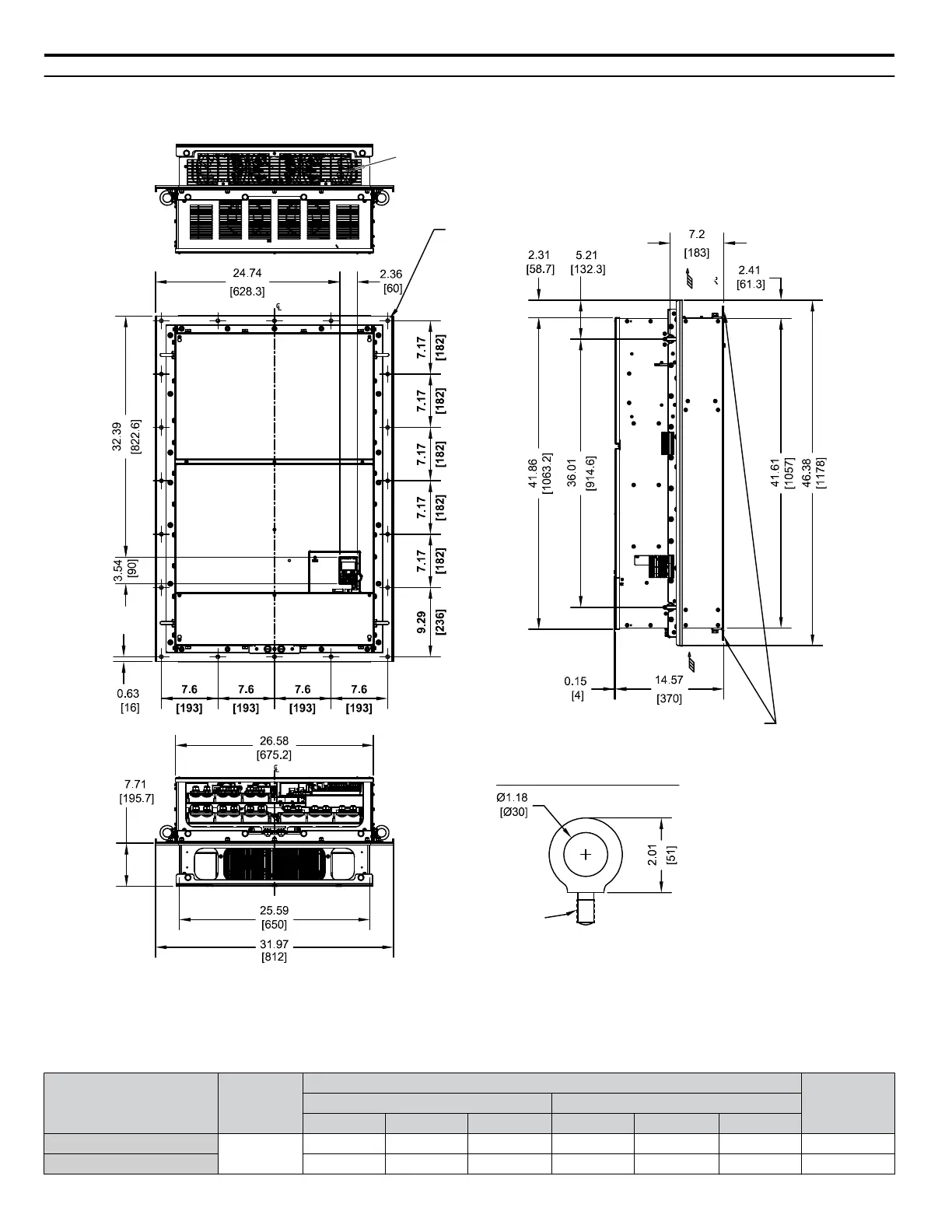

Flange Type Exterior and Mounting Dimensions
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
Unit: in. [mm]
NOTE: Spreader bar required to avoid damage during lifting.
LIFTING AND EYEBOLT DETAILS
(3) EXTERNAL
COOLING FANS
(20)-MOUNTING HOLES
FOR 3/8 in. [M10] SCREWS
HORIZONTAL MOUNTING DIM
M122 THREAD
VERTICAL MOUNTING DIM
(2) MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING
AIR
AIR
FRONT VIEW
Figure 2.35 Models 4A0515 and 4A0675
n
Flange Type Heat Loss Data
Table 2.23
Models 4A0515 and 4A0675
Drive Model
Voltage
Class
Heat Loss (W)
Wt. kg (lb)ND (Fc = 2 kHz) HD (Fc = 8 kHz)
Internal External Total Internal External Total
4A0515
400
1668 4850 6518 1386 3972 5358 223 (492)
4A0675 2037 4861 6898 1685 4191 5876 228 (503)
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
74
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
