YASKAWA A1000 Series User Manual

u
Models 2A0110 to 2A0250, 4A0208 to 4A1200, and 5A0125 to 5A0242 (IP00/Open Type
Enclosure)
n

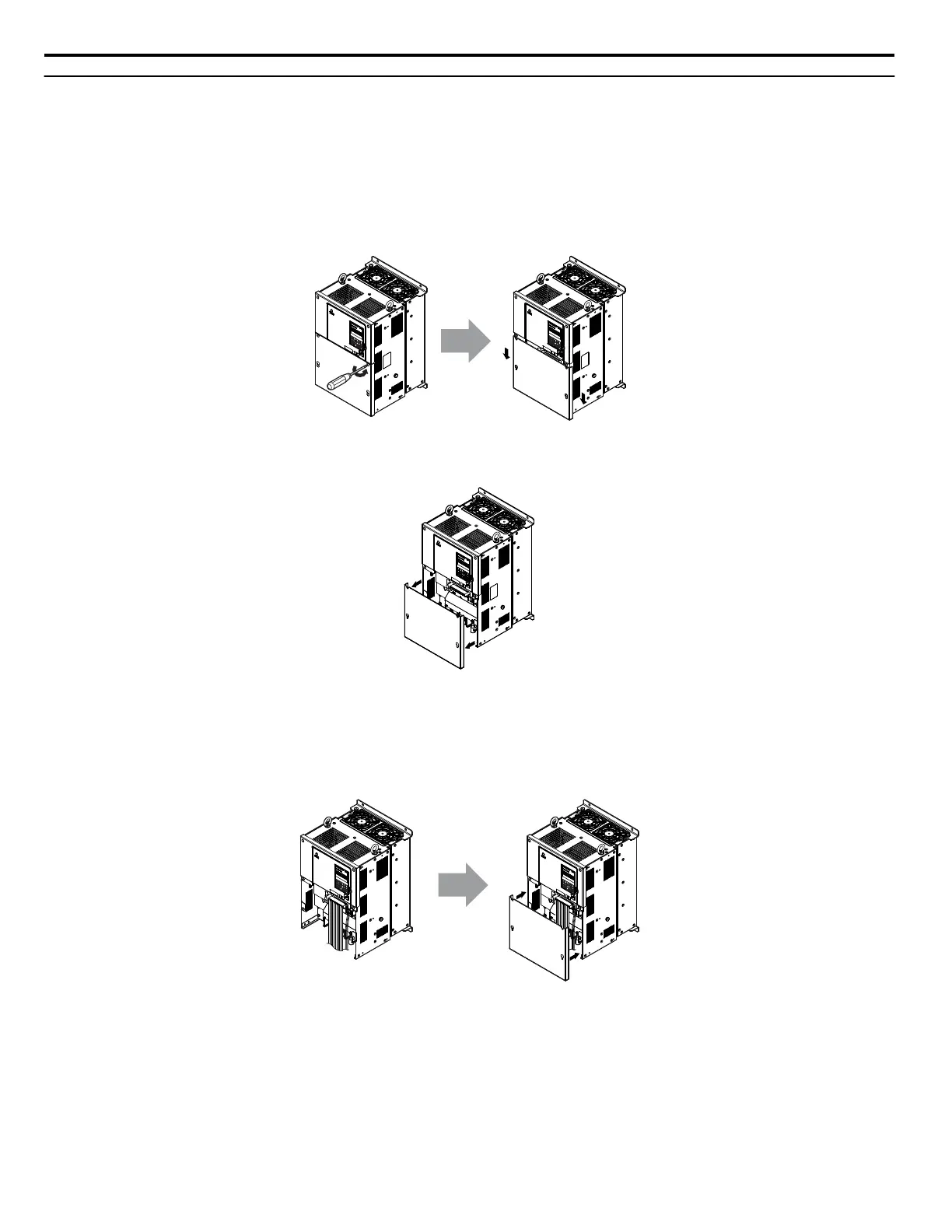

Removing the Terminal Cover
1.
Loosen the screws on the terminal cover, then pull down on the cover.
Note: The terminal cover and the number of terminal cover screws differ depending on the drive model.
CAUTION! Do not completely remove the cover screws, just loosen them. If the cover screws are removed completely, the terminal
cover may fall off causing an injury.
Figure 3.12 Removing the Terminal Cover on an IP00/Open Type Enclosure Drive
2.
Pull forward on the terminal cover to free it from the drive.
Figure 3.13 Removing the Terminal Cover on an IP00/Open Type Enclosure Drive
n
Reattaching the Terminal Cover
After
wiring the terminal board and other devices, double-check connections and reattach the terminal cover. Refer to Wiring
the Main Circuit Terminal on page 104 and Wiring the Control Circuit Terminal on page 108 for details on wiring.
<1>
Figure 3.14 Reattaching the Terminal Cover on an IP00/Open Type Enclosure Drive
<1> Connect the ground wiring first, then the main circuit wiring, and finally the control circuit wiring.
3.3 Terminal Cover
88
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
