YASKAWA A1000 Series - Flange Type Models 2 A0360 and 2 A0415, 4 A0250 to 4 A0362, and 5 A0192 and 5 A0242

u
Flange Type Models 2A0360 and 2A0415, 4A0250 to 4A0362, and 5A0192 and 5A0242
n

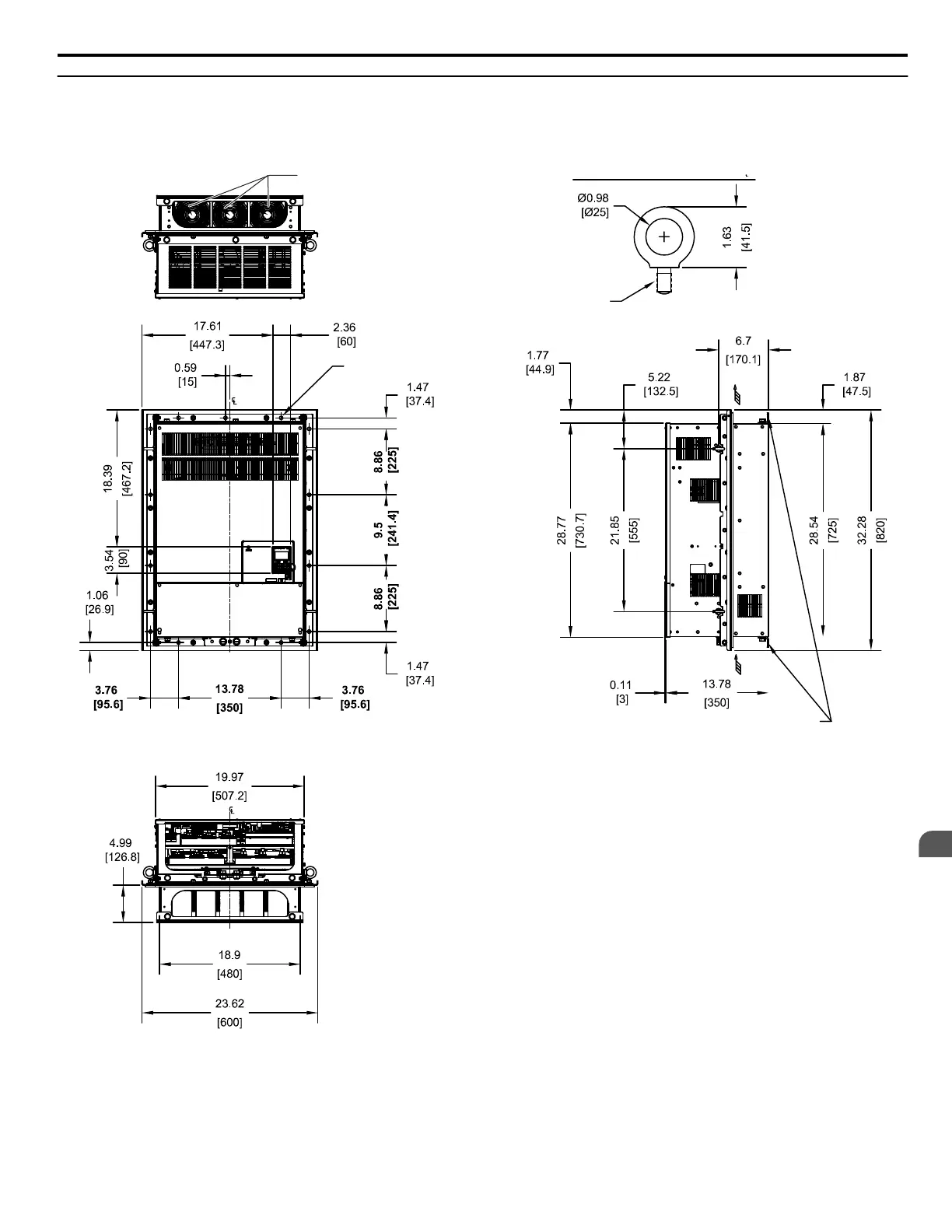

Flange Type Exterior and Mounting Dimensions
LIFTING AND EYEBOLT DETAILS
(3) EXTERNAL
COOLING FANS
(13)-MOUNTING HOLES
FOR 3/8 in. [M10] SCREWS
FRONT VIEW
AIR
AIR
Unit: in. [mm]
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
NOTE: Spreader bar required to avoid damage during lifting.
M10 THREAD
(2) MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING
VERTICAL MOUNTING DIMVERTICAL MOUNTING DIMVERTICAL MOUNTING DIM
HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIM
Figure 2.31 Models 2A0360 and 2A0415, 4A0250 to 4A0362, and 5A0192 and 5A0242
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
69
2
Mechanical Installation
