YASKAWA A1000 Series User Manual

Operation time (minutes)
Cold start
(characteristics when an
overload occurs at a
complete stop)
Hot start
(characteristics when an
overload occurs during
continuous operation at 100%)
Motor current (%)
E2-01 = 100% motor current
10
7
3
1
0.4
0.1
0 100 150 200

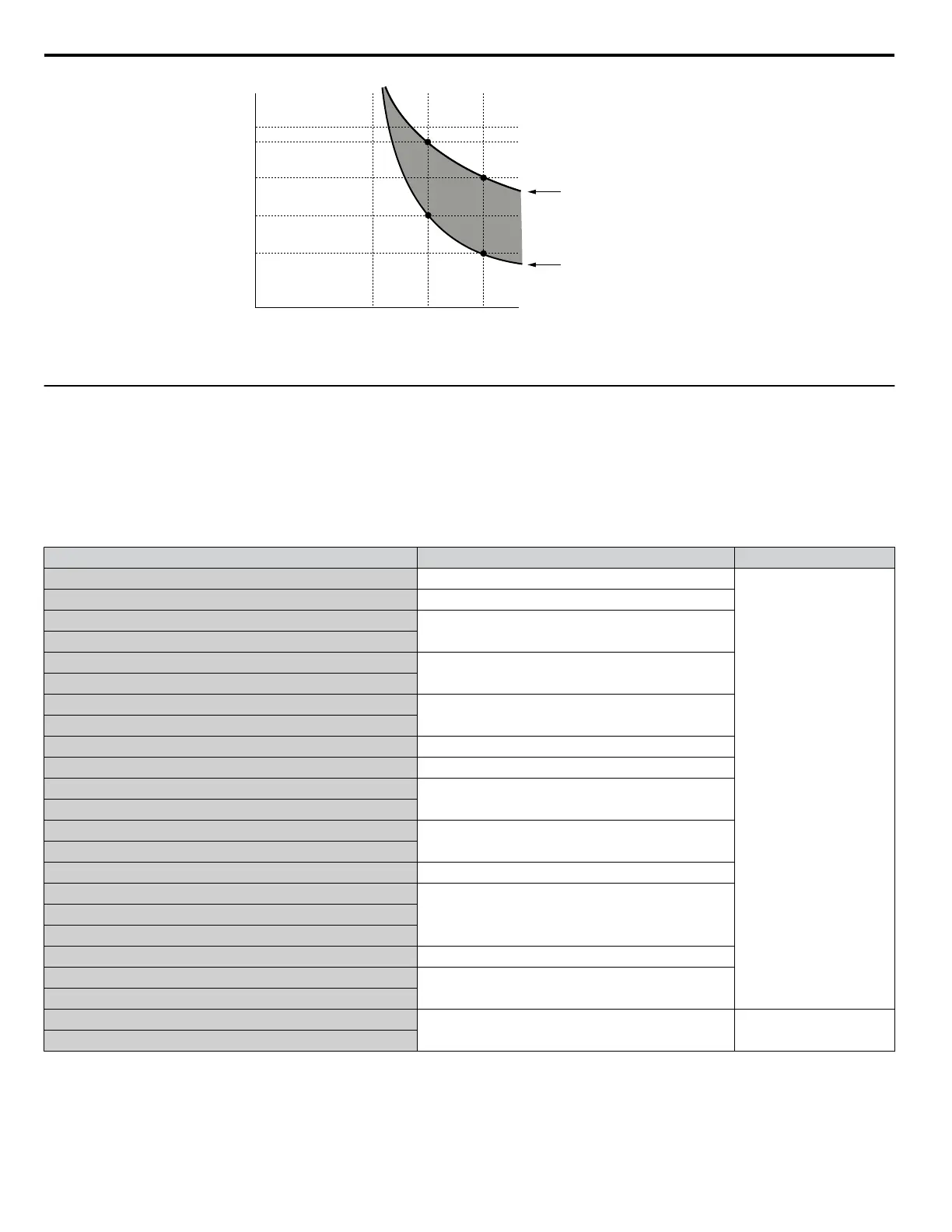

Figure C.9 Motor Overload Protection Time
u
Precautionary Notes on External Heatsink (IP00/Open Type Enclosure)
When using an external heatsink, UL compliance requires covering exposed capacitors in the main circuit to prevent injury
to surrounding personnel.
The portion of the external heatsink that projects out can be protected with the enclosure or with the appropriate capacitor
cover after completing drive installation. Use Table C.12 to match drive models with available capacitor covers. Order
capacitor covers from a Yaskawa representative or directly from the Yaskawa sales department.
Table C.12
Capacitor Cover
Drive Model Code Number Figure
2A0110 100-061-273
Figure C.10
2A0138 100-061-274
2A0169
100-061-275
2A0211
2A0250
100-061-277
2A0312
2A0360
100-061-278
2A0415
4A0058 100-061-273
4A0072 100-061-274
4A0088
100-061-276
4A0103
4A0139
100-061-275
4A0165
4A0208 100-061-277
4A0250
100-061-2784A0296
4A0362
4A0414 100-061-279
4A0515
100-061-280
4A0675
4A0930
100-061-281
<1>
Figure C.11
4A1200
C.2 UL and CSA Standards
350
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
