YASKAWA A1000 Series - Flange Type Models 2 A0169 and 2 A0211, 4 A0139 and 4 A0165, and 5 A0062 to 5 A0099

u
Flange Type Models 2A0169 and 2A0211, 4A0139 and 4A0165, and 5A0062 to 5A0099
n
Flange Type Exterior and Mounting Dimensions
LIFTING AND EYEBOLT DETAILS
(2) EXTERNAL
COOLING FANS
(12) MOUNTING HOLES
FOR 1/4 in. [M6] SCREWS
M8 THREAD
FRONT VIEW
AIR
AIR
Unit: in. [mm]
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
NOTE: Spreader bar required to avoid damage during lifting.
(2)-MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING
HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIM
VERTICAL MOUNTING DIMVERTICAL MOUNTING DIMVERTICAL MOUNTING DIM

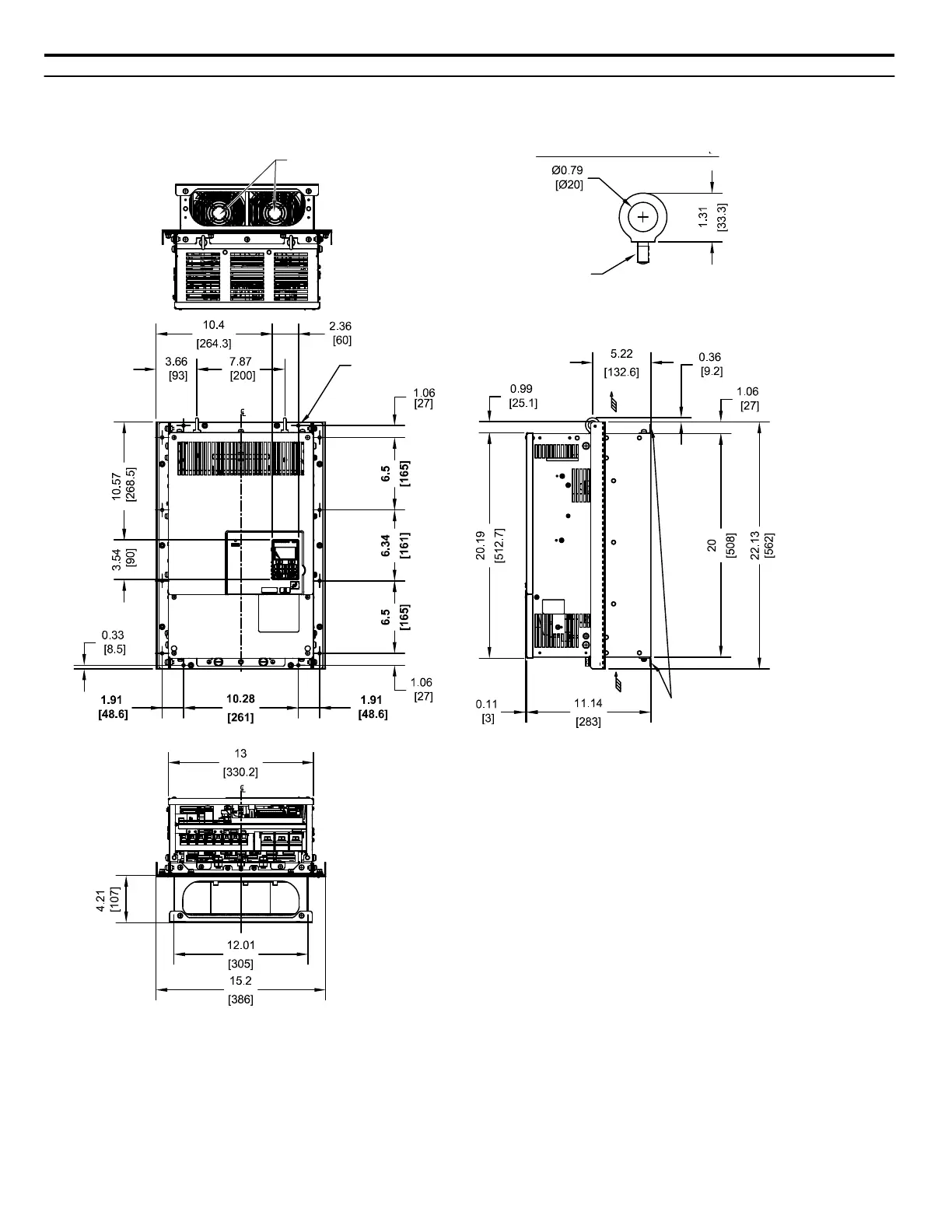

Figure 2.27 Models 2A0169 and 2A0211, 4A0139 and 4A0165, and 5A0062 to 5A0099
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
64
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
