YASKAWA A1000 Series User Manual

u
Flange Type Models 2A0069 and 2A0081, 4A0044, and 5A0027 and 5A0032
n

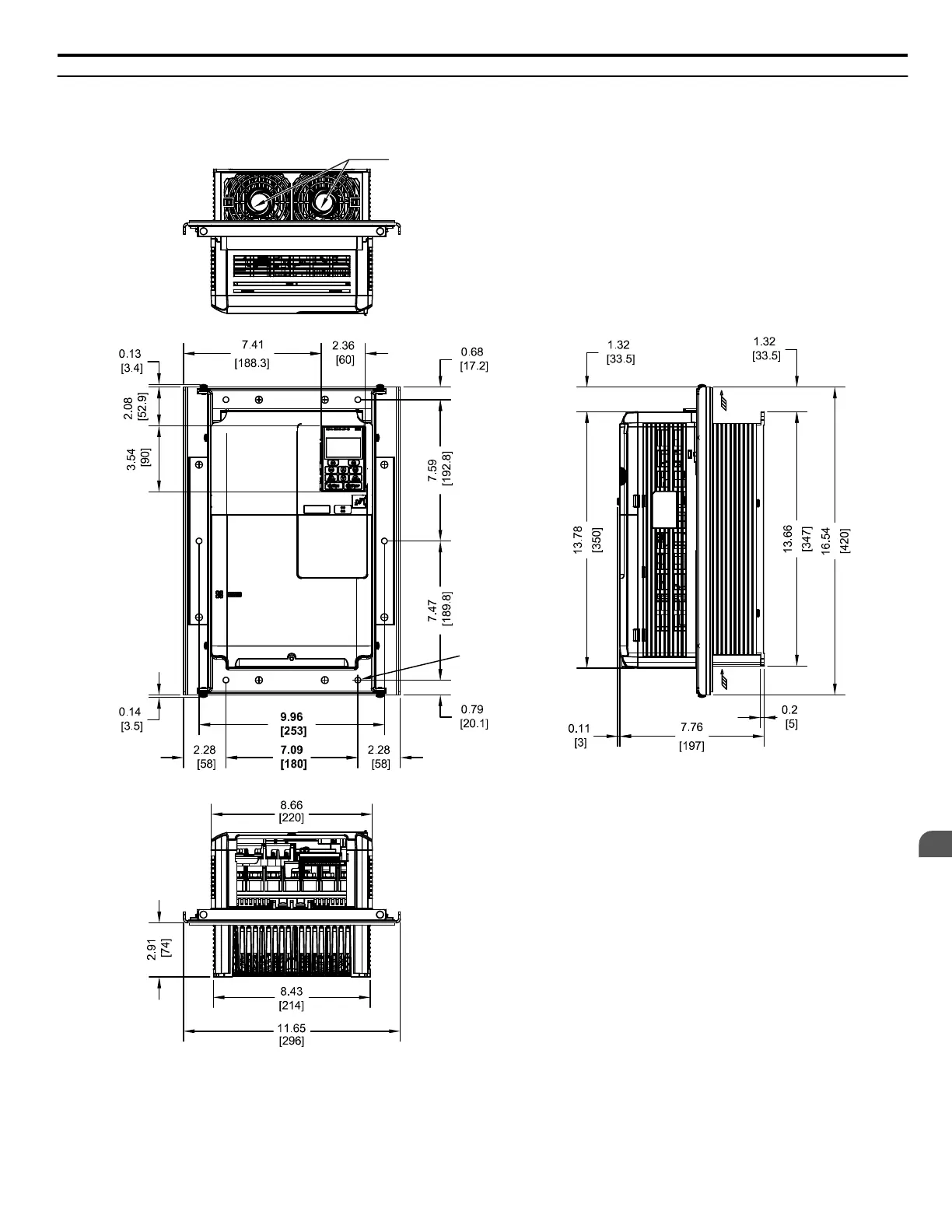

Flange Type Exterior and Mounting Dimensions
VERTICAL MOUNTING DIM
VERTICAL MOUNTING DIM
FRONT VIEW
(6)-MOUNTING
HOLES FOR
1/4 in. [M6] SCREWS
HORIZONTAL MOUNTING DIM
HORIZONTAL MOUNTING DIM
NOTE: Maximum surrounding air temperature id 50 °C (122 °F)
AIR
AIR
Unit: in. [mm]
(2) EXTERNAL
COOLING FANS
Figure 2.19 Models 2A0069 and 2A0081, 4A0044, and 5A0027 and 5A0032
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
55
2
Mechanical Installation

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
