YASKAWA A1000 Series - Flange Type Models 4 A0088 and 4 A0103

u
Flange Type Models 4A0088 and 4A0103
n
Flange Type Exterior and Mounting Dimensions
1.0
NOTE: Spreader bar required to avoid damage during lifting.
LIFTING AND EYEBOLT DETAILS
(2) EXTERNAL
COOLING FANS
(12) MOUNTING HOLES
FOR 1/4 in. [M6] SCREWS
M8 THREAD
(2) MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
Unit: in. [mm]
FRONT VIEW
AIR
AIR
VERTICAL MOUNTING DIMVERTICAL MOUNTING DIMVERTICAL MOUNTING DIM
HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIM HORIZONTAL MOUNTING DIM

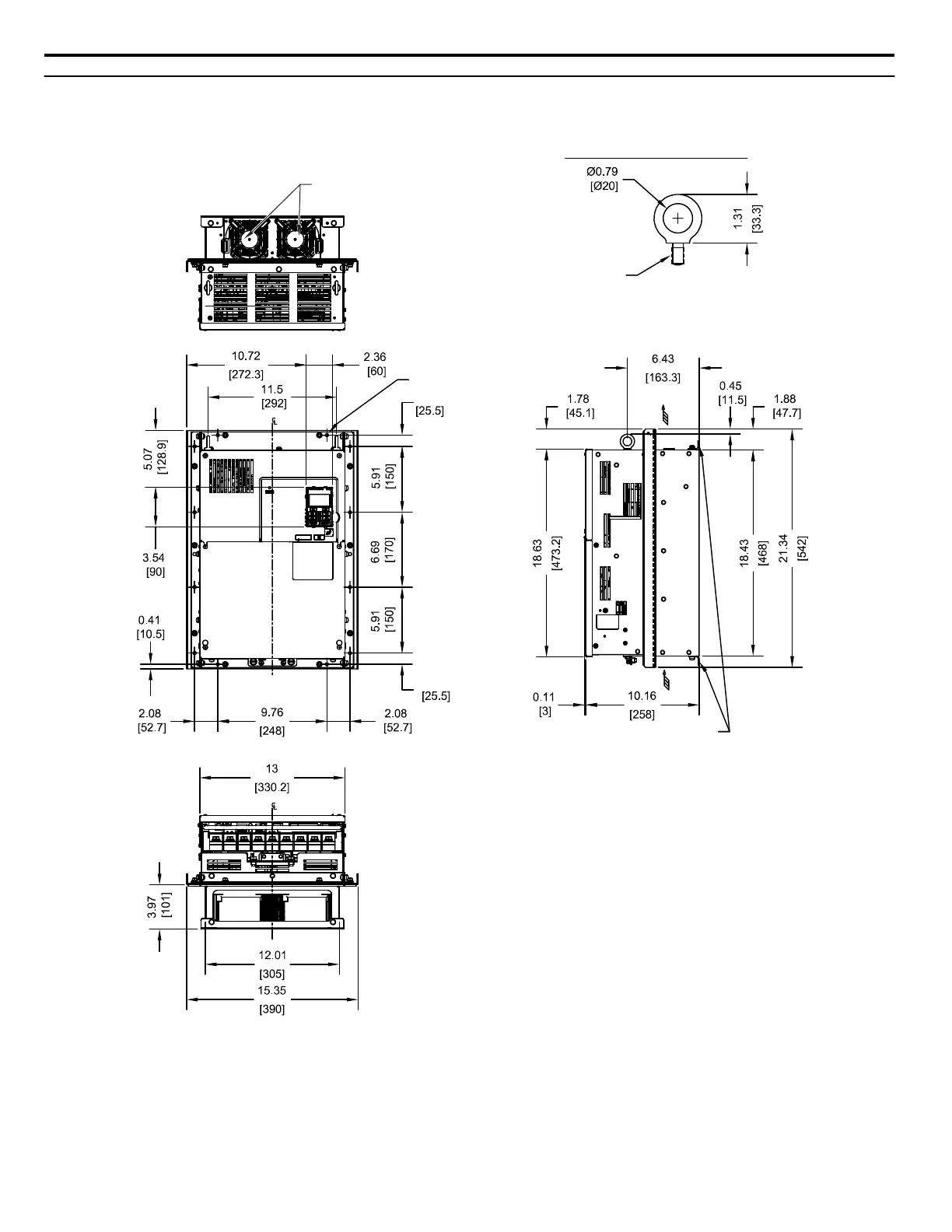

Figure 2.25 Models 4A0088 and 4A0103
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
62
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
