YASKAWA A1000 Series - Flange Type Models 2 A0110 and 4 A0058

u
Flange Type Models 2A0110 and 4A0058
n

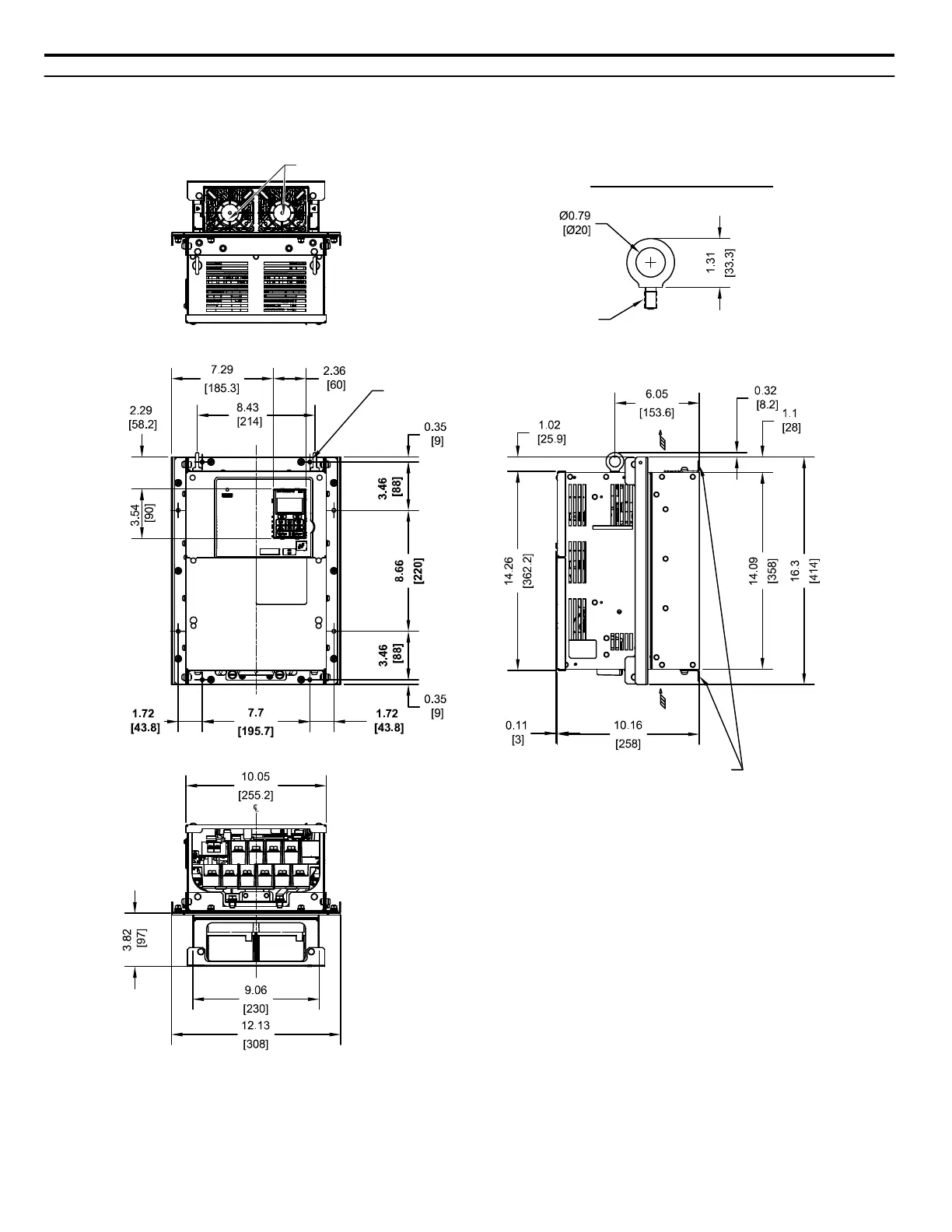

Flange Type Exterior and Mounting Dimensions
Unit: in. [mm]
NOTE: Maximum surrounding air temperature is 50 °C (122 °F)
VERTICAL MOUNTING DIM
HORIZONTAL MOUNTING DIM
NOTE: Spreader bar required to avoid damage during lifting.
LIFTING AND EYEBOLT DETAILS
(2) EXTERNAL
COOLING FANS
M8 THREAD
(8) MOUNTING HOLES
FOR 1/4 in. [M6] SCREWS
AIR
AIR
(2) MOUNTING BRACKETS
USED DURING TRANSPORT ONLY
REMOVE BEFORE INSTALLING
VERTICAL MOUNTING DIM VERTICAL MOUNTING DIM
HORIZONTAL MOUNTING DIM
HORIZONTAL MOUNTING DIM
Figure 2.21 Models 2A0110 and 4A0058
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
58
