YASKAWA A1000 Series User Manual

n

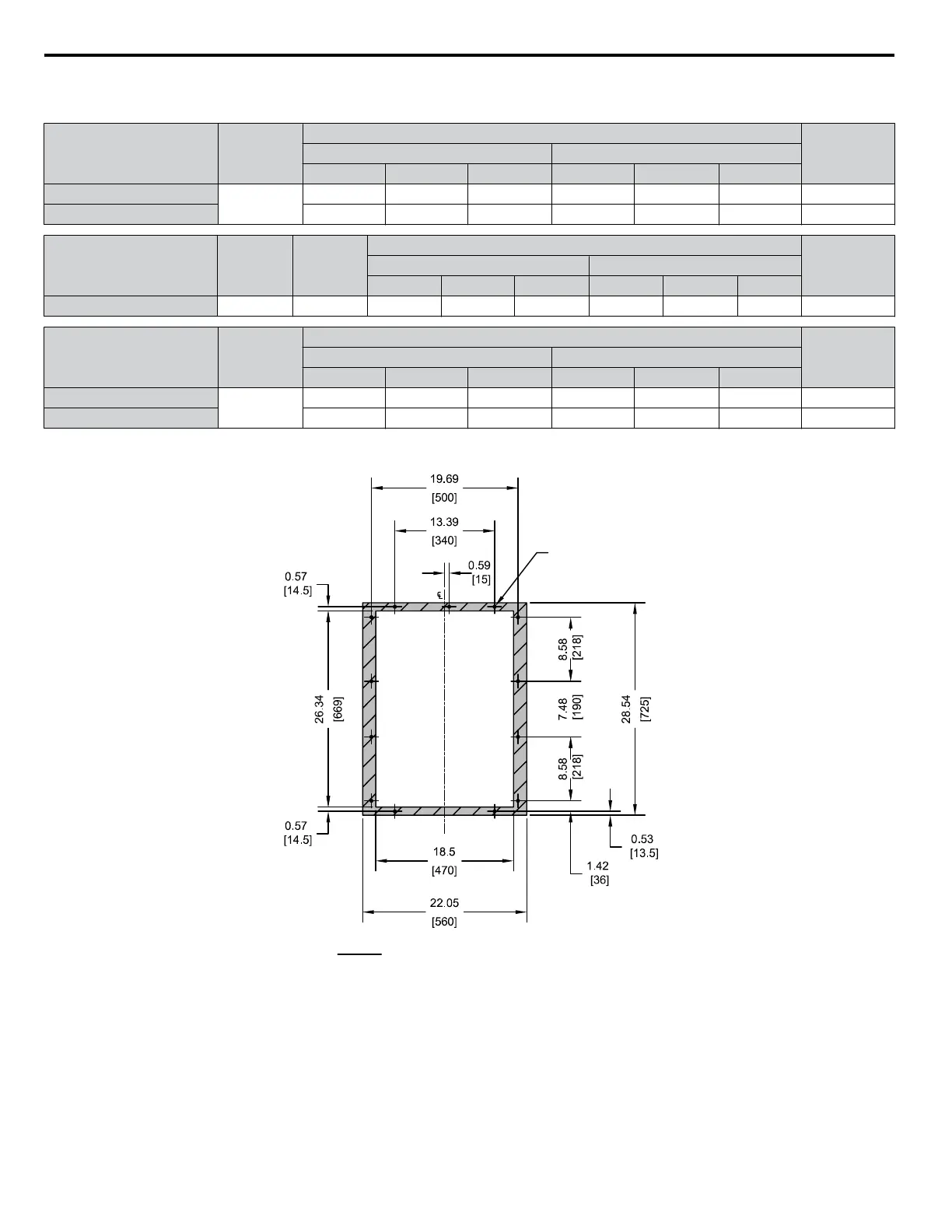

Flange Type Heat Loss Data
Table 2.20
Models 2A0250 and 2A0312, 4A0208, and 5A0125 and 5A0145
Drive Model
Voltage
Class
Heat Loss (W)
Wt. kg (lb)ND (Fc = 2 kHz) HD (Fc = 5 kHz)
Internal External Total Internal External Total
2A0250
200
594 1764 2358 466 1514 1980 83 (183)
2A0312 665 2020 2685 588 1936 2524 88 (194)
Drive Model
Voltage
Class
Input Type
Heat Loss (W)
Wt. kg (lb)ND (Fc = 2 kHz) HD (Fc = 5 kHz)
Internal External Total Internal External Total
4A0208 400 6-Pulse 607 1800 2407 541 1771 2312 87 (191)
Drive Model
Voltage
Class
Heat Loss (W)
Wt. kg (lb)ND (Fc = 2 kHz) HD (Fc = 2 kHz)
Internal External Total Internal External Total
5A0125
600
537 1641 2178 422 1328 1750 87 (191)
5A0145 603 1860 2463 508 1638 2146 87 (191)
n
Flange Type Panel Cutout Dimensions for External Heatsink Mounting
NOTES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK DEPTH
3. MINIMUM RECOMMENDED PANEL
THICKNESS: 10 GA
D=5.00 in. [127 mm] MINUS PANEL THICKNESS
(13)-3/8 in. [M10]
THREADED HOLES
Unit: in. [mm]
CUTOUT
1. CUTOUT TOLERANCES:
Figure 2.30 Models 2A0250 and 2A0312, 4A0208, and 5A0125 and 5A0145
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
68
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
