YASKAWA A1000 Series User Manual

n

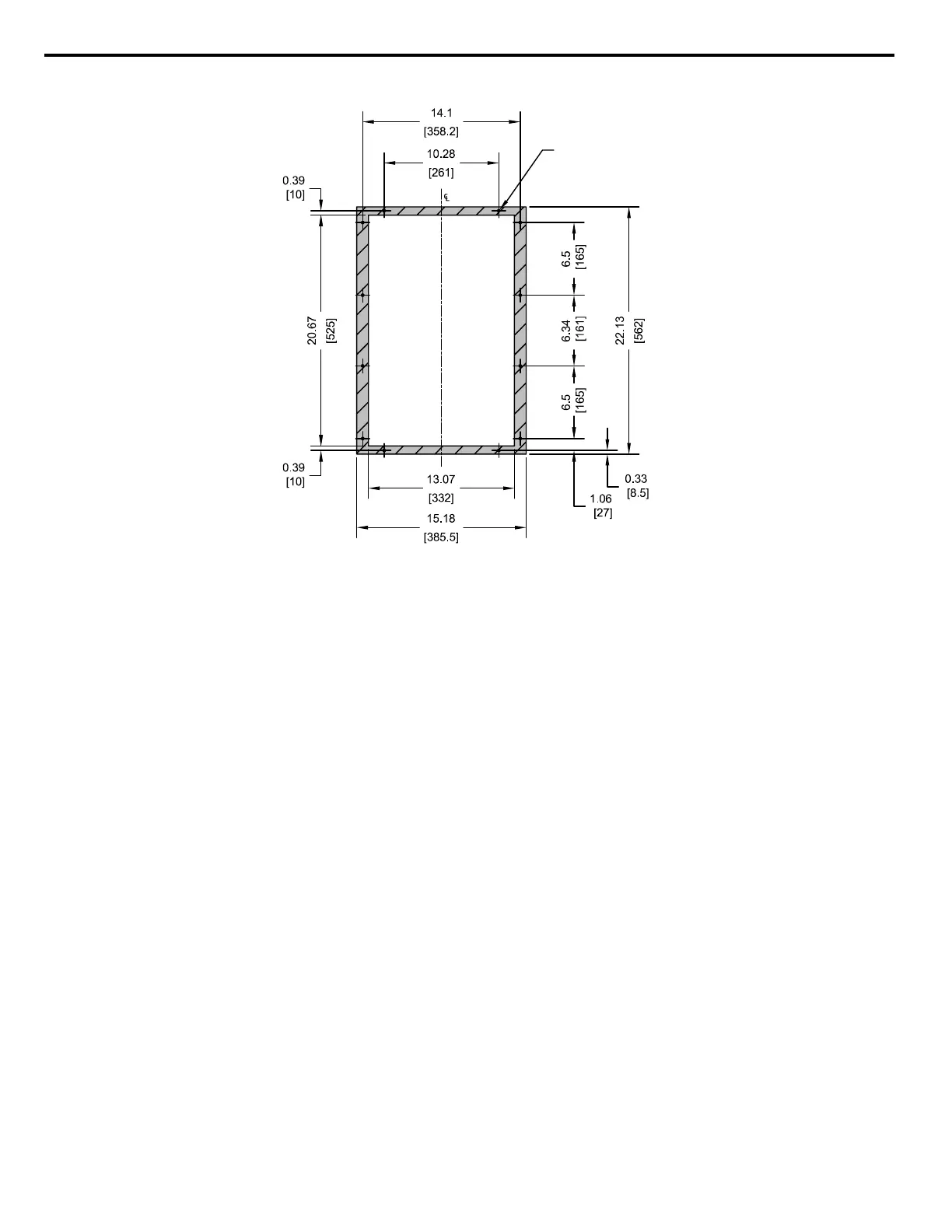

Flange Type Panel Cutout Dimensions for External Heatsink Mounting
CUTOUT
NOTES:
1. CUTOUT TOLERANCES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK DEPTH
3. MINIMUM RECOMMENDED PANEL
THICKNESS: 12 GA
D=4.21 in. [107 mm] MINUS PANEL THICKNESS
Unit: in. [mm]
(12)-1/4 in. [M6]
THREADED HOLES
Figure 2.28 Models 2A0169 and 2A0211, 4A0139 and 4A0165, and 5A0062 to 5A0099
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
66
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
