YASKAWA A1000 Series

Three-Phase 200 V / 400 V Class
A
B
C
D
E
B
F
G
H
I
J
K
A – Make sure the ground wire is
grounded
B
– Grounding surface (remove any
paint or sealant)
C – Metal plate
D – Enclosure panel
E – Drive
F – Motor cable (braided shield cable,
max. 10 m)
G – Motor
H – Cable shield ground
I – Cable clamp
J – Ground plate (scrape off any
visible paint)
K – EMC noise filter

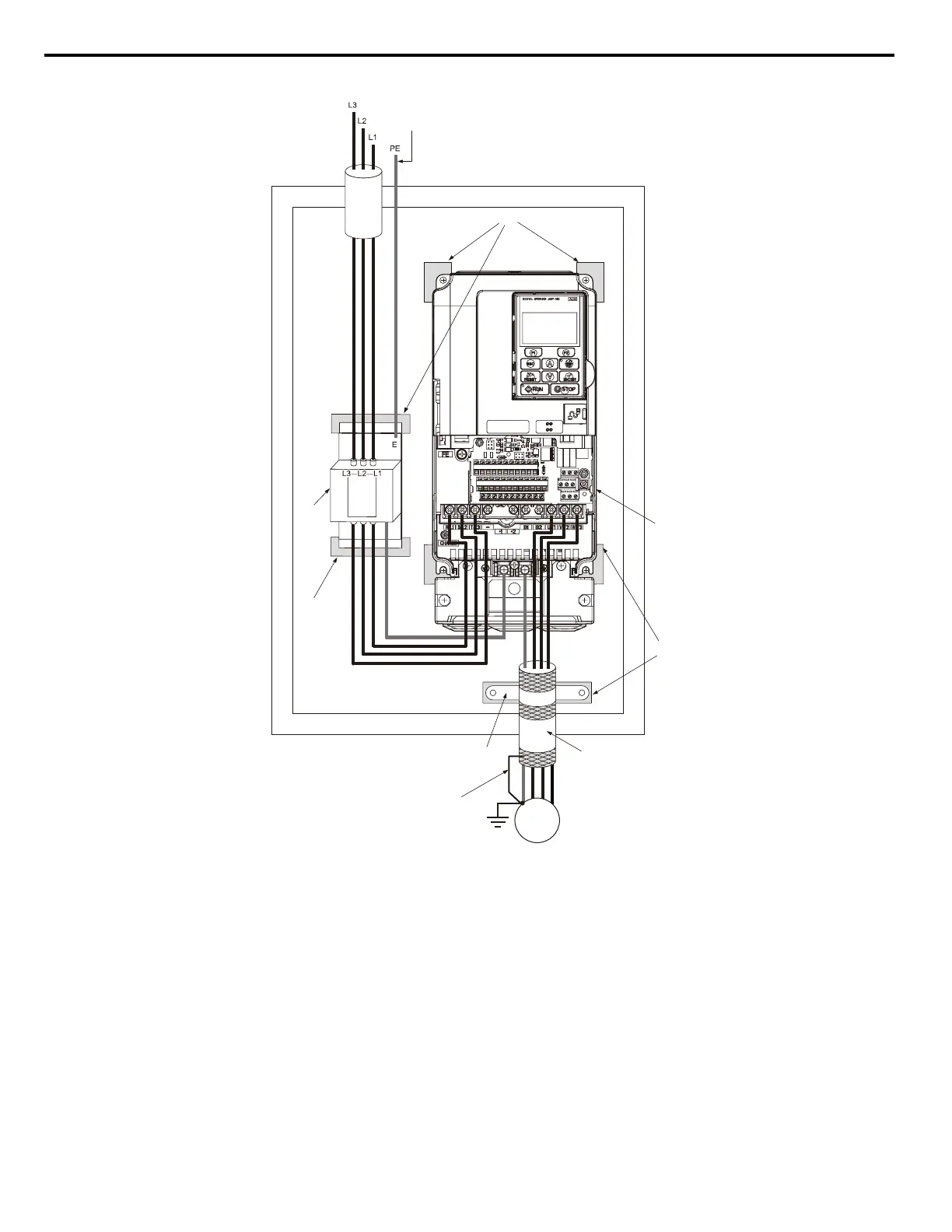

Figure C.5 EMC Filter and Drive Installation for CE Compliance (Three-Phase 200 V / 400 V Class)
C.1 European Standards
