YASKAWA A1000 Series

Drive Model
Type
Rated Current (A) Weight (lb)
Dimensions
[W x D x H] (in)
Y x X (in) Figure
Manufacturer:
Schaffner
4A0250
FS5972-410-99 410 23.1 10.2 × 4.5 × 15.2 9.3 × 4.7
3
4A0296
4A0362
4A0414
FS5972-600-99 600 24.3 10.2 × 5.3 × 15.2 9.3 × 4.7
4A0515
4A0675 FS5972-800-99 800 69.4 11.8 × 6.3 × 28.2 10.8 × 8.3
4A0930
FS5972-600-99
<1>
600 24.3 10.2 × 5.3 × 15.2 9.3 × 4.7
4A1200
FS5972-800-99
<1>
800 69.4 11.8 × 28.2 × 6.3 10.8 × 8.3
4
<1> Connect two of the same filters in parallel.
H X
H
D
W
Y
Figure 1
Figure 3
Figure 2
W
Y
XX
X
H
W
D
Y
D

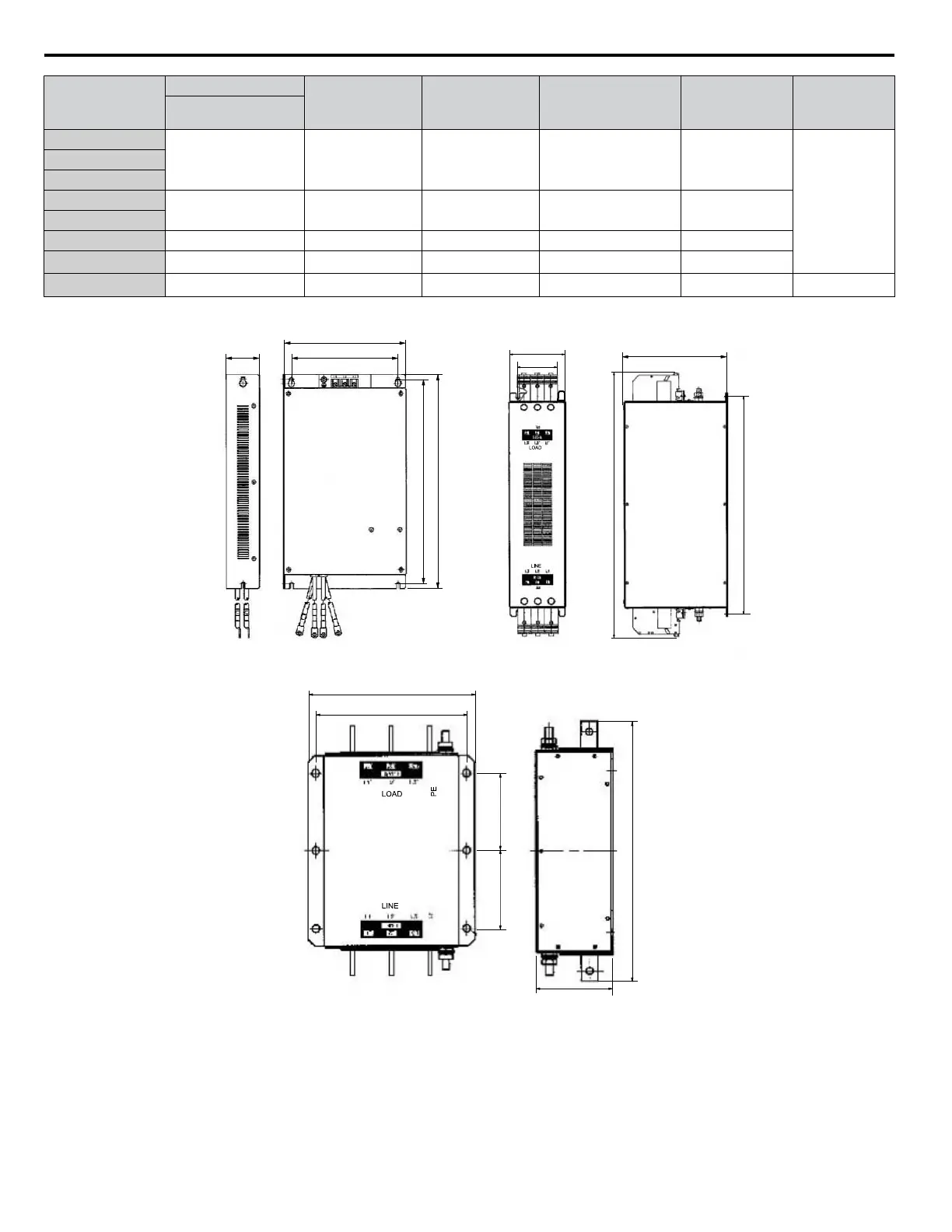

Figure C.6 EMC Filter Dimensions
