2.14 Control Circuit Wiring
100 YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual
2.14 Control Circuit Wiring
This section gives information about how to correctly wire the control circuit.
◆ Control Circuit Connection Diagram
Wire the drive control circuit as shown in
Figure 2.105.

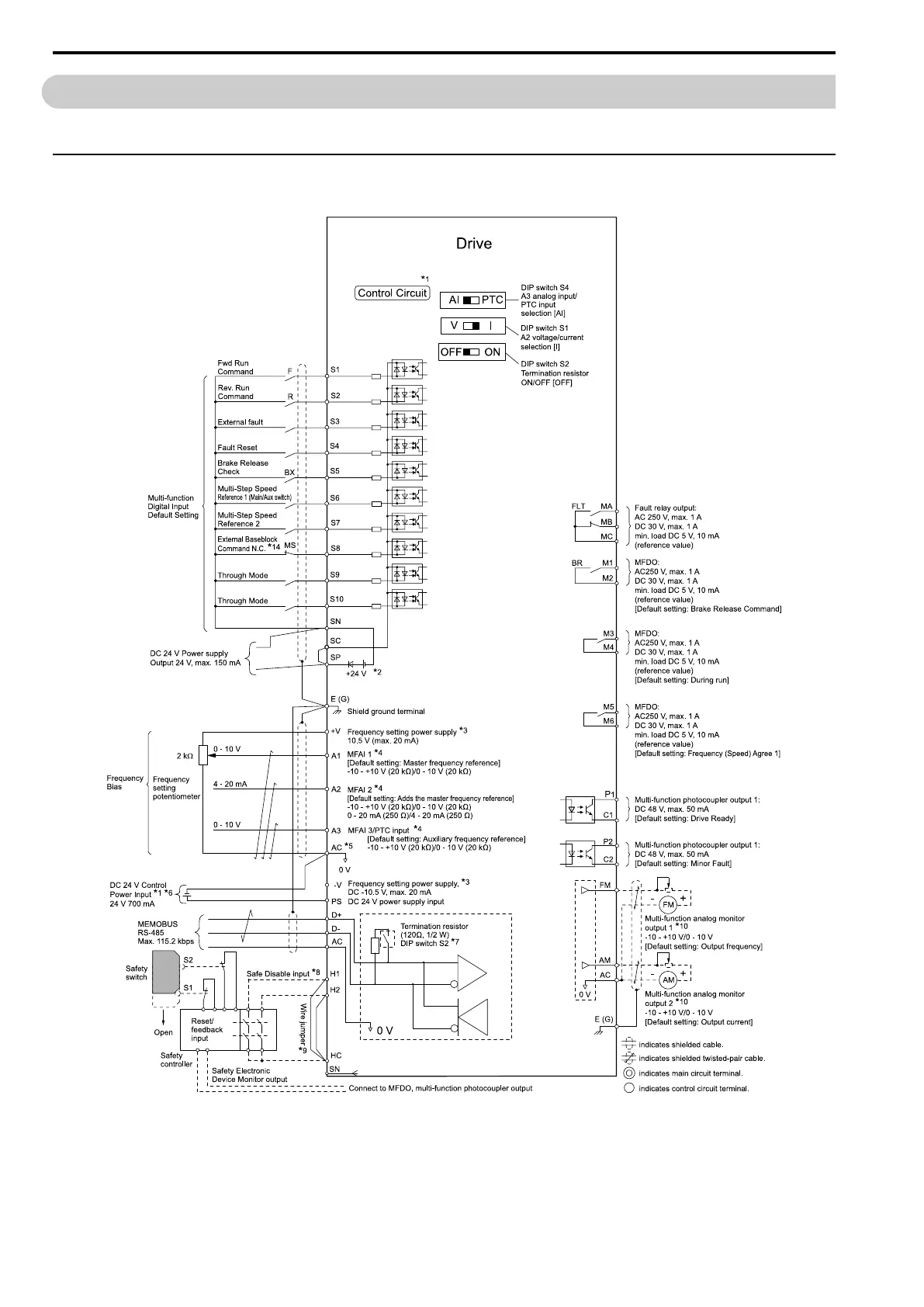

Figure 2.105 Control Circuit Connection Diagram
*1 Connect a 24 V power supply to terminals PS-AC to operate the control circuit while the main circuit power supply is OFF.
