3.4 Keypad Operation
162 YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual

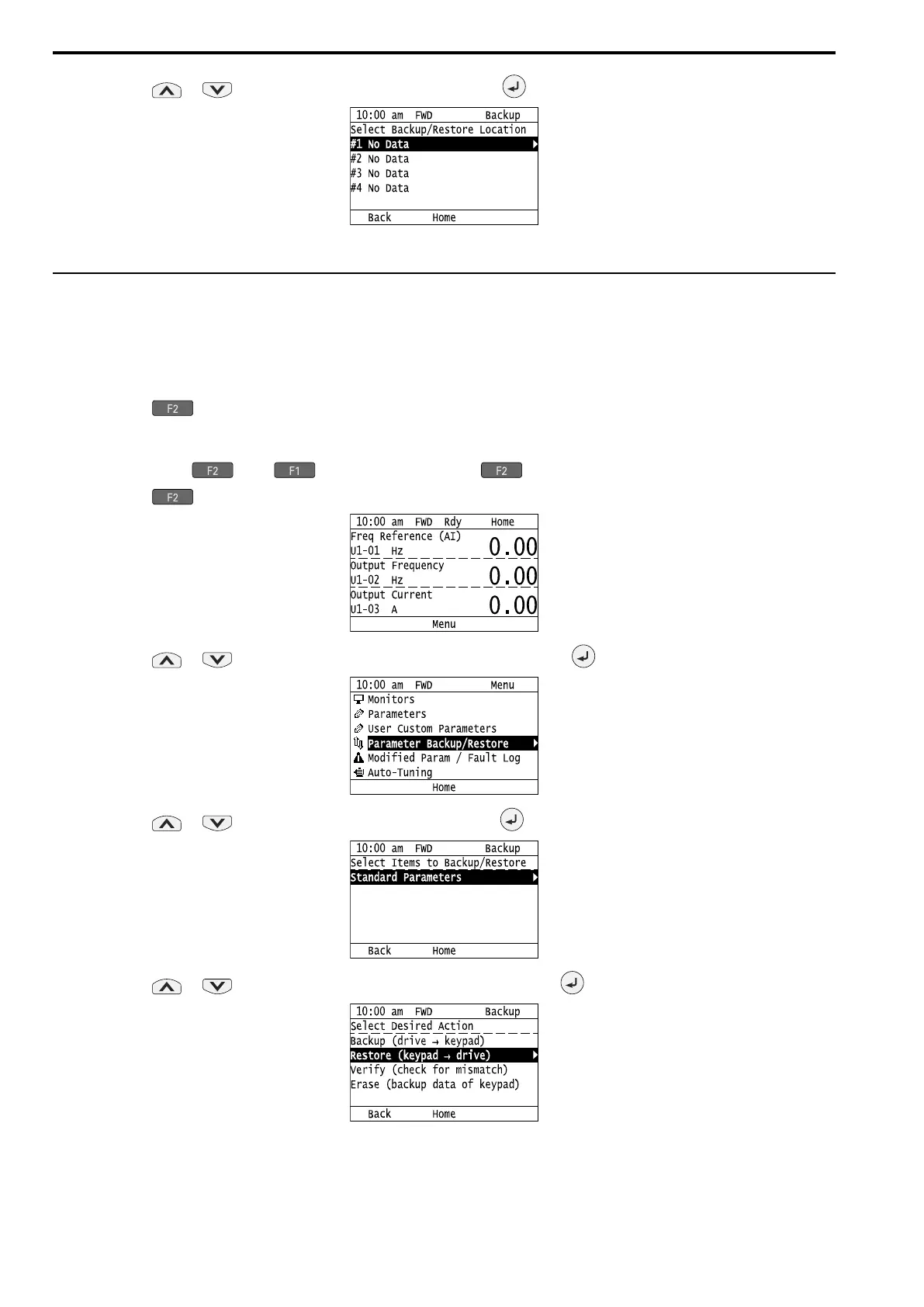

6. Push or to select a memory location, then push .
The keypad shows “End” when the backup procedure completes successfully.
◆ Write Backed-up Parameters to the Drive
Users can write the parameters backed up on the keypad to another drive.
Note:
• Always stop the drive before starting the restoration procedure for parameter backups.
• The drive rejects a Run command while restoring parameters.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Parameter Backup/Restore], then push .
4. Push or to select the item to restore, then push .
5. Push or to select [Restore (keypad → drive)], then push .
To Next Page
