YASKAWA CR700

3.2 Component Names and Functions
140 YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual
No. Name Function
G
STOP Key
Stops drive operation.
Note:
The STOP key has highest priority Push to stop the motor even when a Run command (REMOTE Mode) is active at MFDI
terminals. Set o2-02 = 0 [STOP Key Function Selection = Disabled] to disable the priority in .
H
Left Arrow Key Moves the cursor to the left.
Up Arrow Key/Down
Arrow Key
/
• Scrolls up or down to display the next item or the previous item.
• Selects parameter numbers, and increments or decrements setting values.
Right Arrow Key (RESET)
• Moves the cursor to the right.
• Continues to the next screen.
• Clears drive faults.
ENTER Key
• Enters parameter values and settings.
• Selects menu items to move the user between keypad displays.
• Selects each mode, parameter, and set value.
I
RUN Key Starts the drive in LOCAL mode.
Starts the motor tuning procedure in Auto-Tuning Mode.
J USB Terminal
Uses a USB cable (USB standard 2.0, type A - mini-B) to connect the keypad to a PC.
K RJ-45 Connector
Connects to the drive using an RJ-45 8-pin straight through UTP CAT5e extension cable or keypad connector.
L Clock Battery Cover
Remove it when installing/replacing the clock battery.
Note:
• Refer to “Replace the Keypad’s Battery” for details on the type of battery required and the installation procedure.
• The clock battery is not supplied as accessories.
M
Nameplate
Displays keypad model, lot number, and FLASH number.
Note:
Keypads with FLASH number of 1002 or later can be used. Keypads with FLASH number of 1001 or earlier may not display
messages properly.
◆ LCD Display

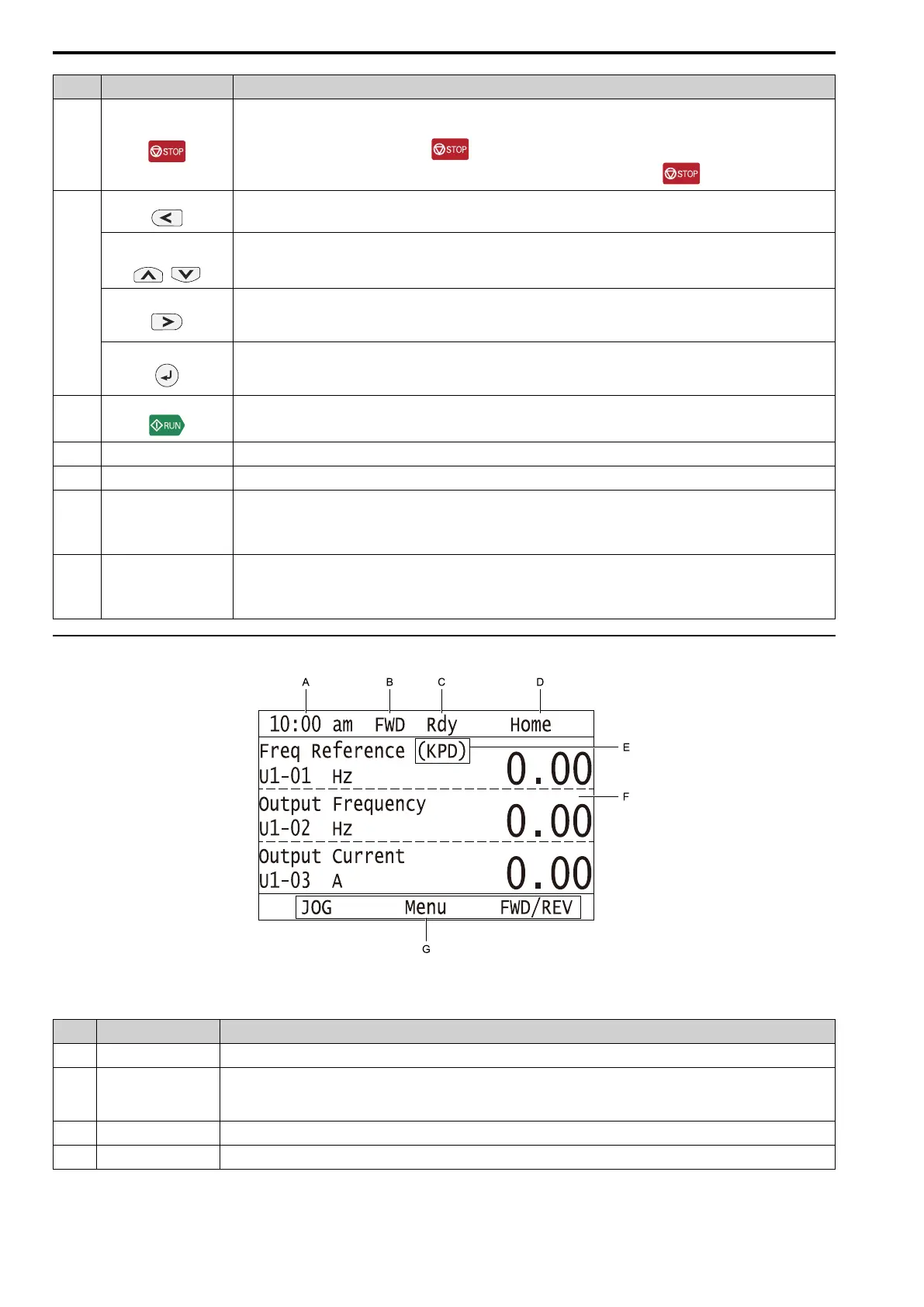

Figure 3.2 LCD Display Indications
Table 3.2 LCD Display Indications and Meaning
No. Name Description
A Time display area
Current time is displayed. Time is set in the default settings screen.
B
Forward run/Reverse
indication
Shows direction of motor rotation.
• FWD: Displayed when set to Forward run.
• REV: Displayed when set to Reverse.
C Ready
Rdy is displayed when the drive is ready for operation or is currently running.
D Mode display area
The name of the currently displayed mode or screen is shown here.
