9.6 Drive Exterior and Mounting Dimensions
YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual 439
9.6 Drive Exterior and Mounting Dimensions
Note:
The estimated weights in this document are for drives with hardware revision D or later. For estimated weights of drives with hardware
revision C or earlier, contact Yaskawa or your nearest sales representative. The “REV” column on the nameplate on the right side of the
drive identifies the hardware revision. Refer to
Nameplate on page 22 for more information.
◆ IP20/UL Open Type

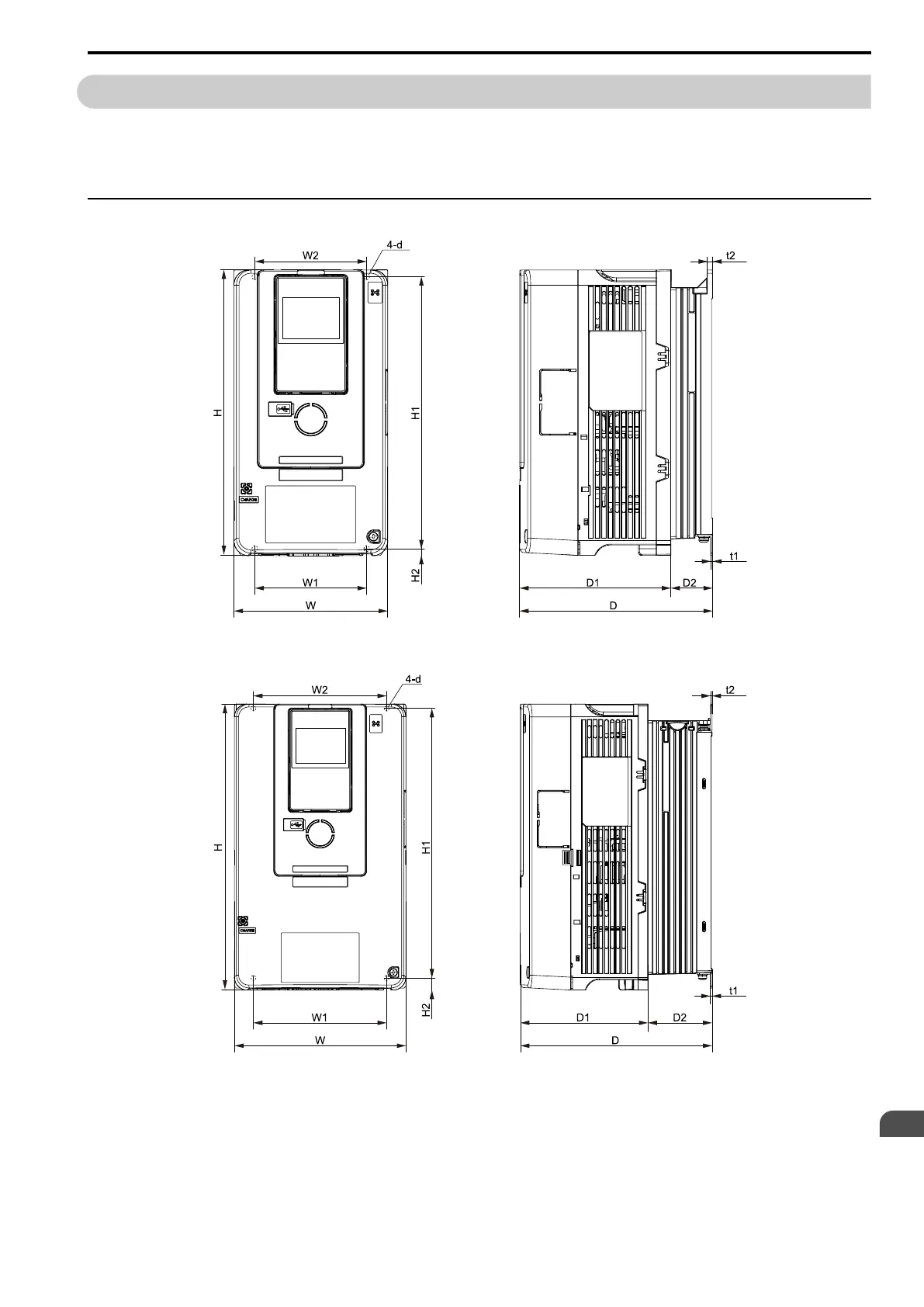

Figure 9.1 Dimension Diagram 1
Figure 9.2 Dimension Diagram 2
