3.4 Keypad Operation
YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual 175
◆ Configuring the Data Log Content
■ Set Monitor to Log
The procedure in this section shows how to set the monitor for which to log data.

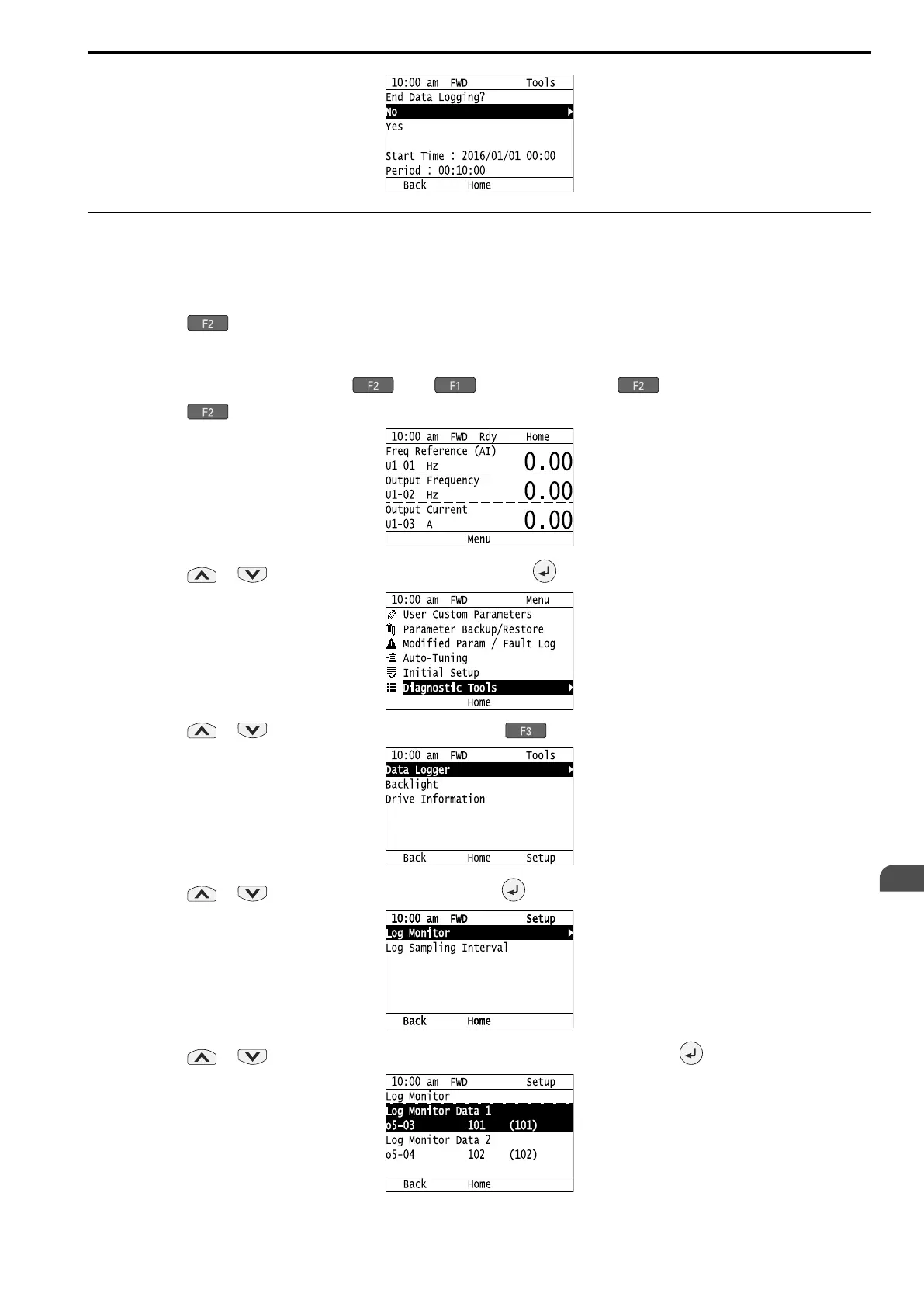

1. Push (Home) to show the HOME screen.
Note:
• When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen.
• If the screen does not show [Home] for , push (Back), and then push to show [Home].
2. Push (Menu).
3. Push or to select [Diagnostic Tools], then push .
4. Push or to select [Data Logger], then push (Setup).
5. Push or to select [Log Monitor], then push .
6. Push or to select the save-destination monitor parameter, then push .
To Next Page
