3.4 Keypad Operation
150 YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual
The configuration procedure is complete.
◆ Show Custom Monitors

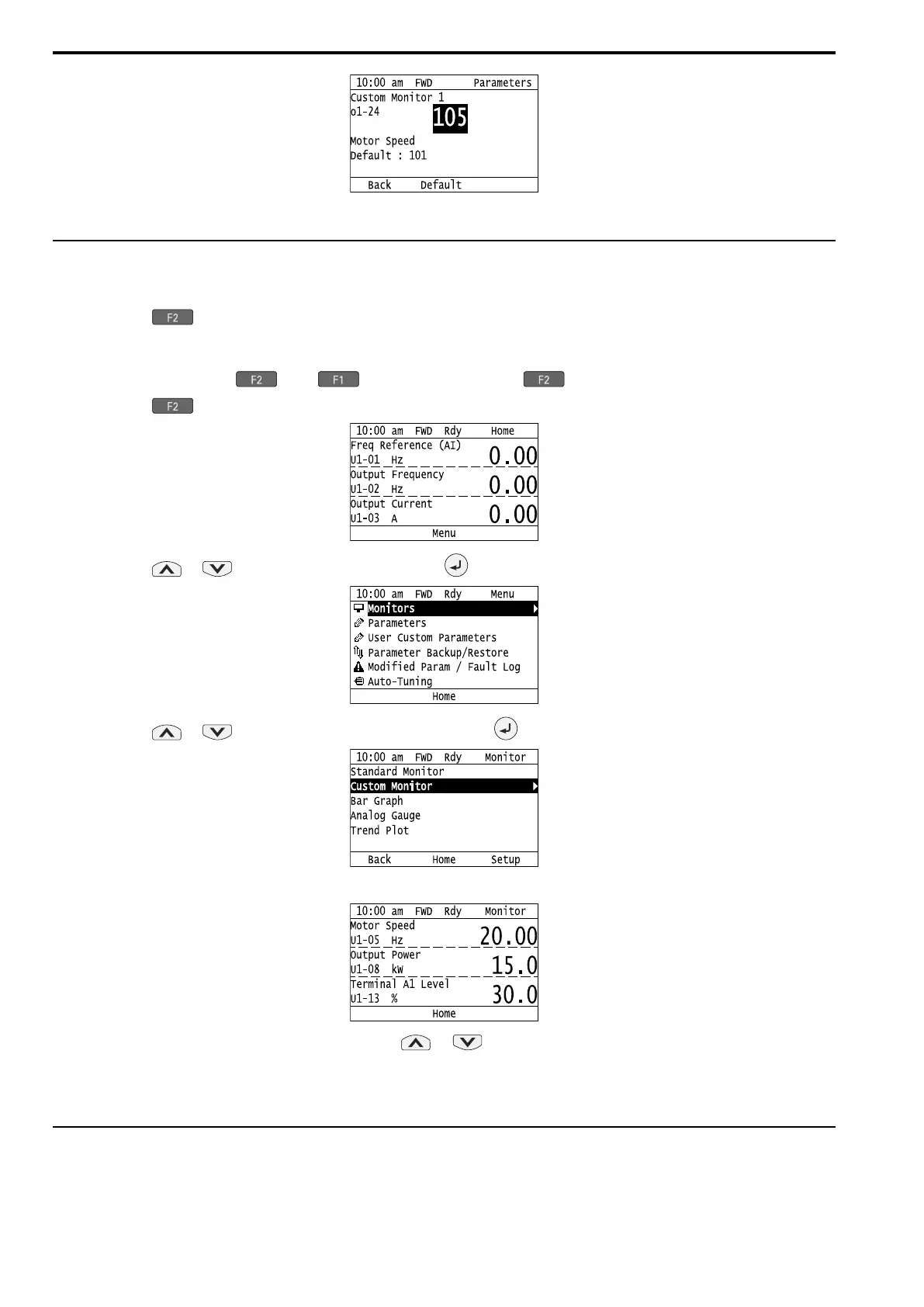

The procedure in this section shows how to show the registered custom monitors.
1. Push [Home] to show the HOME screen.
Note:
• The keypad will [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push [Back] to show [Home] on .
2. Push [Menu].
3. Push or to select [Monitors], then push .
4. Push or to select [Custom Monitor], then push .
The keypad shows the selected monitor as shown in this figure.
• When there are a minimum of two screens, push or to switch between screens.
• If you registered only one custom monitor to [Custom Monitor 1], the screen will show only one monitor. If you
registered custom monitors only to [Custom Monitor 1] and [Custom Monitor 2], the screen will show only two
monitors.
◆ Set the Monitors to Show as a Bar Graph
The procedure in this section shows how to show the frequency reference monitor as a bar graph.
To Next Page
