Startup Procedure and Test Run
3
3.4 Keypad Operation
YASKAWA SIEPC71061723A YASKAWA AC Drive CR700 Technical Manual 165

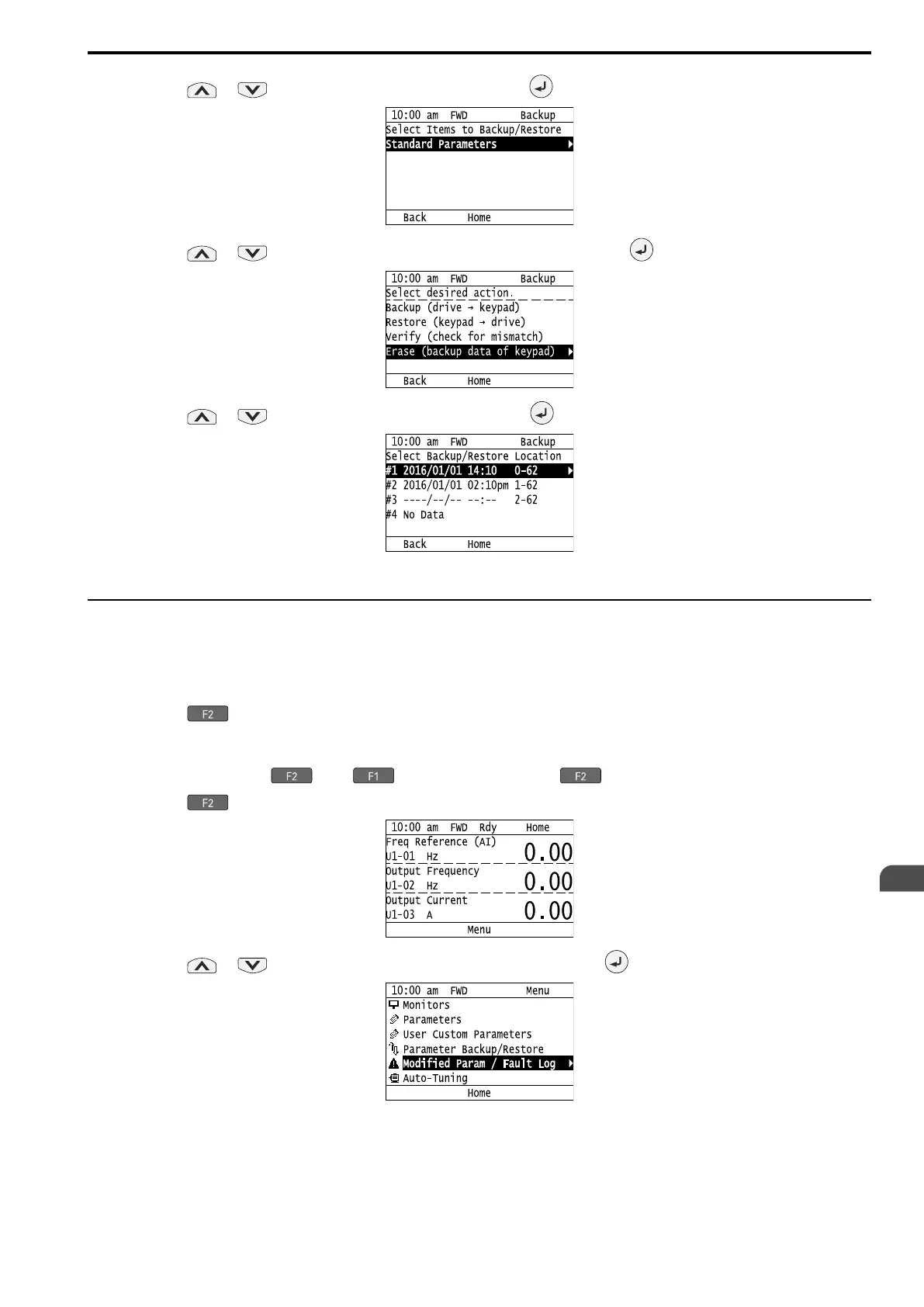

4. Push or to select the item to delete, then push .
5. Push or to select [Erase (backup data of keypad)], then push .
6. Push or to select the data to delete, then push .
The keypad will show the “End” message when the write process is complete.
◆ Check Modified Parameters
This procedure will show all parameters that are not at their default values. This is very useful when you replace a
drive. This lets you quickly access and re-edit changed parameters. When all parameters are at their default
values, the keypad will show “0 Parameters”.
1. Push (Home) to show the HOME screen.
Note:
• When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen.
• If [Home] is not shown on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Modified Param / Fault Log], then push .
To Next Page
